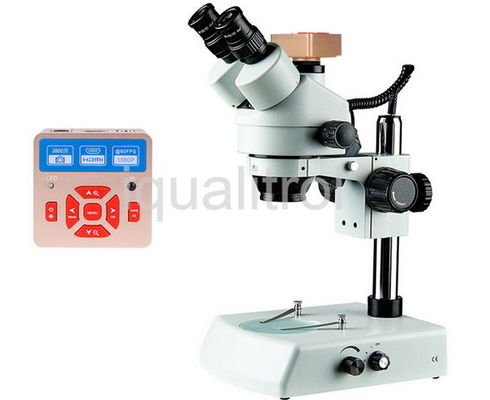

Trinocular Stereo Zoom Microscope Magnification 65X Long Working Distance 110mm

Trinocular Stereo Zoom Microscope Magnification 65X Long Working Distance 110mm
Trinocular Stereo Zoom Microscope Magnification 65X Long Working Distance 110mm Trinocular Stereo Zoom Microscope Magnification 65X Long Working Distance 110mm Trinocular Stereo Zoom Microscope Magnification 65X Long Working Distance 110mm Trinocular Stereo Zoom Microscope Magnification 65X Long Working Distance 110mm Trinocular Stereo Zoom Microscope Magnification 65X Long Working Distance 110mm Trinocular Stereo Zoom Microscope Magnification 65X Long Working Distance 110mm Trinocular Stereo Zoom Microscope Magnification 65X Long Working Distance 110mm Trinocular Stereo Zoom Microscope Magnification 65X Long Working Distance 110mm Trinocular Stereo Zoom Microscope Magnification 65X Long Working Distance 110mm

Large Image :  Trinocular Stereo Zoom Microscope Magnification 65X Long Working Distance 110mm

Product Details:
Brand Name: iqualitrol
Model Number: iStereo-113
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Carton Box
Delivery Time: 10 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 50 Sets per Month
Detailed Product Description
Magnification: 10X - 65X Eyepiece: 10X
Eyetube: Inclined 45° WD: Working Distance 110mm
Non-Flash: From High To Low Magnification Observation: Large Depth Of View
Highlight:

Trinocular Stereo Zoom Microscope

,

Stereo Zoom Microscope 65X

,

Trinocular Zoom Stereo Microscope



Max Magnification 65X Trinocular Zoom Stereo Microscope with
Long Working Distance 110mm



Technical Data Download: iqualitrol Stereo Microscope iStereo-113T



Brief Introduction:

◆ Includes iStereo-113 (binocular) and iStereo-113T(trinocular).

◆ Non-flash in focus course while from high to low magnification;



◆ Large depth of view, width of visual fields, super long working distance, high cost effective

◆ Extensively applied in field of modern biology research, semiconductor and other science and technology industry.



● The V-shape optical path of Greenough allows us to design a very compact and a slim unit, high versatile and appreciated for the3D viewing.

● Samples with significate depth can be quickly inspected.



● Binocular and trinocular heads are45° inclined to grant comfortable posture to the user even after several hours of operation.



● Some application examples demonstrating the versatility of iStereo-113 series. Applications in industrial and research are extremely facilitated by the advanced functionality offered.



Specifications:

Magnification Total magnification(standard outfits): 10X~65X, Extend total magnification: 390X
Eyepiece SWH10X high eye point & extra wide-field eyepiece ,FOV Φ23mm
Eyetubes Inclined 45°
WD 110mm
Interpupillary distance adjustment range(SWH10X) 52mm~76mm
Diopter adjustment range ±6 Diopter
Focus adjustment range 50mm(Using square post is 100mm)
Support and main body matched dimension Φ76mm
Post’ center to Support’ center dimension 140mm
Round post diameter Φ25mm
Center stage diameter Φ95mm
Trinocular, Binocular eyetubes Binocular, Trinocular eyetubes inclined 45°and main body can be rotated 360°
Illuminators The down illuminator is transmitted illumination of fluorescent lamp(5W),the up illuminator is reflected illumination of halogen lamp(6V,10W).



Eyep-iece Item Main body Specification of different auxiliary objective
0.37X 0.5X 0.7X 1.5X 2X
10X Total Mag. 10X~65X

3.7X~

24.1X

5X~32.5X 7X~46X 15X~98X

20X~

130X

FOV(mm) Φ23~Φ3.5

Φ62.2~

Φ9.6

Φ46~Φ7 Φ32.9~Φ5 Φ15.3~Φ2.3

Φ11.5~

Φ1.8

15X Total Mag. 15X~97.5X

5.55X~

36.1X

7.5X~48.8X 10.5X~69X 22.5X~147X

30X~

195X

FOV(mm) Φ17~Φ2.6

Φ45.9~

Φ7.1

Φ34~Φ5.2 Φ24.3~Φ3.7 Φ11.3~Φ1.7

Φ8.5~

Φ1.3

20X Total Mag. 20X~130X

7.4X~

48.1X

10X~65X 14X~92X 30X~196X

40X~

260X

FOV(mm) Φ14~Φ2.2

Φ37.8~

Φ5.8

Φ28~Φ4.2 Φ20~Φ3.1 Φ9.3~Φ1.4

Φ7~

Φ1.1

30X Total Mag. 30X~195X

11.1X~

72.2X

15X~97.5X 21X~138X 45X~294X

60X~

390X

FOV(mm) Φ9~Φ1.4

Φ24.3~

Φ3.7

Φ18~Φ2.7 Φ12.9~Φ2 Φ6~Φ0.9

Φ4.5~

Φ0.7

WD(mm) 110 275 195 145 50 35

NOTES:
1. Please use lengthened round post when using 0.37X objective, track stands cannot be used.
2. When 0.5X or lower magnification objective applied, track stands cannot be used.



What is Stereo Microscope:

The stereo or stereoscopic is an optical microscope variant designed for low magnification observation of a sample, typically using light reflected from the surface of an object rather than transmitted through it.



The instrument uses two separate optical paths with two objectives and eyepieces to provide slightly different viewing angles to the left and right eyes. This arrangement produces a three-dimensional visualization of the sample being examined.



Stereomicroscopy overlaps macrophotography for recording and examining solid samples with complex surface topography, where a three-dimensional view is needed for analyzing the detail.



The stereo microscope is often used to study the surfaces of solid specimens or to carry out close work such as dissection, microsurgery, watch-making, circuit board manufacture or inspection, and fracture surfaces as in fractography and forensic engineering. They are thus widely used in manufacturing industry for manufacture, inspection and quality control. Stereo microscopes are essential tools in entomology.
