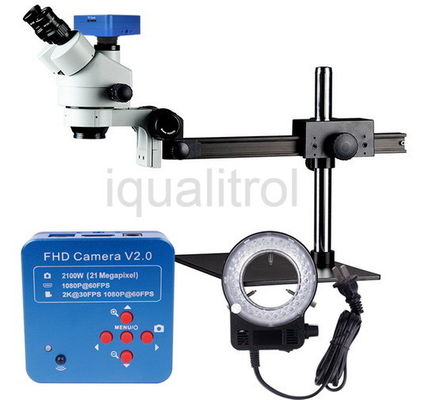

Large Zoom Ratio Stereo Microscope with Magnification 6X to 55X
Support CMOS Camera
Technical Data Download: iqualitrol Stereo Microscope iStereo-114T
iqualitrol stereo microscope iStereo-114 (iStereo-114T) provides a three-dimensional view of a specimen, with standard Magnification 6X to 55X. It is also known by other names such as dissecting microscope and stereo zoom microscope.
Dissecting microscope parts include separate objective lenses and eyepieces. As a result, you have two separate optical paths for each eye. The slightly different angling views to the left and right eyes produce a three-dimensional visual. Because it gives the three-dimensional view it is also called as the dissecting microscope.
Brief Introduction:
◆ Patented technology design;
◆ Long working distance, large depth of field, large zoom ratio;
◆ Trinocular main body can be match CCD (CMOS)camera, digital camera;
◆ Various eyepieces, divisional eyepieces and auxiliary objectives to be selected;
◆ Available to match stands and universal stands, LED ring illuminator, ring fluorescent lamp, fiber and etc.
◆ Widely used in schools, biology engineering and science research, industry assembly for inspection, measurement and quality control.
Technical Specifications:
| Magnification | Total magnification(standard outfits): 6X~55X, extended total magnification: 330X |
| Zoom ratio | Continuous zoom magnification: 0.6X~5.5X, zoom ratio 9.2:1 |
| Eyepiece | SWH10X high eye point & extra wide-field eyepiece ,FOV Φ23mm |
| Eyetubes | Inclined 35° |
| WD | 108mm |
| Focus range | 50mm(100mm/ track stand: 100mm) |
| Interpupillary distance adjustment range (10X eyepiece) | 52mm~76mm |
| Diopter adjustment range | ±6 Diopter |
| The holder and the head matching dimension | Φ76mm |
| Distance between the center of the pole and the center of the holder | 140mm |
| Diameter of the pole | Φ25mm |
| Diameter of the center working stage | Φ95mm |
| Illuminators | Optional illumination:5W fluorescent lamp at the bottom; halogen lamp(6V,10W) on the top. |
| Eye-piece | Item | Main body | Specification of different auxiliary objective | ||||
| 0.37X | 0.5X | 0.7X | 1.5X | 2X | |||
| 10X | Total Mag. | 6X~55X | 2.22X~20.4X | 3X~27.5X | 4.2X~38.5X |
9X~ 82.5X |
12X~ 110X |
| FOV(mm) | Φ38.3~Φ4.2 | Φ99.1~Φ10.8 | Φ76.7~Φ8.4 | Φ54.8~Φ6 |
Φ25.6~ Φ2.8 |
Φ19.2~ Φ2.1 |
|
| 15X | Total Mag. | 9X~82.5X | 3.33X~30.5X | 4.5X~41.25X | 6.3X~57.75X |
13.5X~ 123.75X |
18X~ 165X |
| FOV(mm) | Φ28.3~Φ3.1 | Φ76.6~Φ8.35 | Φ56.7~Φ6.2 | Φ40.5~Φ4.4 |
Φ18.9~ Φ2.1 |
Φ14.2~ Φ1.5 |
|
| 20X | Total Mag. | 12X~110X | 4.44X~40.7X | 6X~55X | 8.4X~77X |
18X~ 165X |
24X~ 220X |
| FOV(mm) | Φ23.3~Φ2.5 | Φ63.1~Φ6.9 | Φ46.7~Φ5.1 | Φ33.3~Φ3.6 |
Φ15.6~ Φ1.7 |
Φ11.7~ Φ1.3 |
|
| 30X | Total Mag. | 18X~165X | 6.66X~61.1X | 9X~82.5X | 12.6X~115.5X |
27X~ 247.5X |
36X~ 330X |
| FOV(mm) | Φ15~Φ1.6 | Φ40.5~Φ4.4 | Φ30~Φ3.3 | Φ21.4~Φ2.3 |
Φ10~ Φ1.1 |
Φ7.5~ Φ0.8 |
|
| WD(mm) | 108 | 275 | 195 | 145 | 50 | 35 | |
NOTES:
1. Please use lengthened round post when using 0.37X objective, track stands cannot be used.
2. When 0.5X or lower magnification objective applied, track stands cannot be used.
What is Stereo Microscope?
The stereo or stereoscopic is an optical microscope variant designed for low magnification observation of a sample, typically using light reflected from the surface of an object rather than transmitted through it.
The instrument uses two separate optical paths with two objectives and eyepieces to provide slightly different viewing angles to the left and right eyes. This arrangement produces a three-dimensional visualization of the sample being examined.
Stereomicroscopy overlaps macrophotography for recording and examining solid samples with complex surface topography, where a three-dimensional view is needed for analyzing the detail.
The stereo microscope is often used to study the surfaces of solid specimens or to carry out close work such as dissection, microsurgery, watch-making, circuit board manufacture or inspection, and fracture surfaces as in fractography and forensic engineering. They are thus widely used in manufacturing industry for manufacture, inspection and quality control. Stereo microscopes are essential tools in entomology.
