|Eyepiece:||10X Wide Field Plan Eyepiece||Objective:||5X, 10X, 40X, 60X|
|Eyepiece Tube:||Trinocular Inclined 30˚||Focus:||Coaxial Coarse / Fine Focus System|
|Observation:||UIS Optical System And Modularization Function||Application:||Metallography, Mineralogy, Electronics|
Digital Metallurgical Microscope 40x,
Digital Metallurgical Microscope 100,
Digital Microscope 10x
Upright Metallurgical Microscope with UIS Optical System with Coarse/Fine Focus
Technical Data Download: iqualitrol Metallurgical Microscope iMet-216A
iqualitrol Upright metallurgical microscope is suitable to observe surface of opaque object or transparent object, equips with excellent UIS optical system and modularization function design so that provited excellent optical quilatity and operation performance, update system expediently and provided observation in reflected or transmitted and mixed illumination, polarizing observation, dark field observation.
It has beautiful sculpt, convenient control and clear image, thus it is an ideal instrument in research work in biology, metallography, mineralogy, precision engineering, electronics, ect.
Upright metallurgical microscopes are available in both binocular and trinocular (for camera integration). These metallurgical microscopes are available with reflected and/or transmitted light, as well as brightfield and darkfield. Metallurgical microscopes allow for polarization and are best for viewing samples at high magnification that do now allow light to pass through them.
|Technical specifications (standard)|
|Eyepiece||10X wide field plan eyepiece and field of view number is Φ22mm, the eyepiece interface is Ф30mm|
|Infinity plan achromatic objectives||
(Equipped bright field objective)
|PL L5X/0.12 working distance:26.1 mm|
|PL L10X/0.25 working distance:20.2 mm|
|PL L40X/0.60 working distance:3.98 mm|
|PL L60X/0.70 working distance:3.18 mm|
(Equipped with dark / bright field objective)
|PL L5X/0.12 BD working distance:8.05 mm|
|PL L10X/0.25BDworking distance:7.86mm|
|PL L20X/0.40 BD working distance:7.2mm|
|PL L40X/0.60BD working distance:3.0 mm|

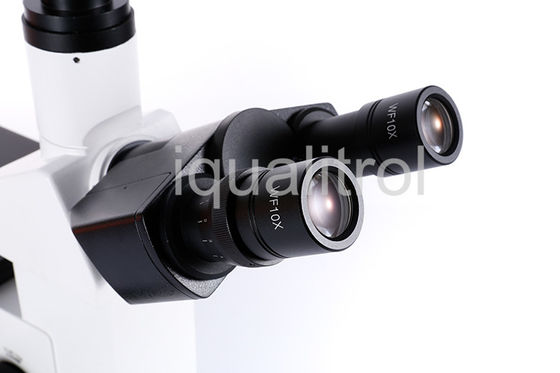

|Eyepiece tube||Trinocular inclined 30˚, pupil separation 53~75 mm.|
|Focusing system||Coaxial coarse/fine focus system, with tension adjustable device, minimum division of fine focusing: 2.0μm.|
|Nosepiece||Quintuple (Backward ball bearing inner locating)|
|Stage||Mechanical stage,overall size:210mmX140mm,moving range: 63mmX50mm|
|6V30W halogen and brightness enable control.|
12V30W halogen and brightness enable control for transmission illumination.
12V50W halogen and brightness enable control for reflecting illumination.
|Integrated field diaphragm, aperture diaphragm and puller type polarizer.|
|Equipped with ground glass and yellow ,green and blue filters|
|Optional Accessory||Eyepiece||Dividing eyepiece(Φ22mm)|
|Objective||iMet-216A||Bright field objective 20X,50X,80X,100X(Dry)|
|iMet-216BD||Bright&dark field objective 50X,60X,80X,100X|
|CCD adapter||0.5X,1X,0.5X(with dividing)|
|Camera||Usb output 1.3M,3.0M,5.0M,10Mpixel|
|Digital camera adapter||Cannon(EF) nikon(F)|
