| X-Y Travel: | 150 X 50mm | Z Axis: | 100mm (for Focusing) |
|---|---|---|---|
| Accuracy: | ≤3+L/200(um) | Resolution: | X-Y Is 0.0005mm |
| Readout: | Digital DP100 | Illumination: | Surface And Contour Illumination |
| Highlight: | Stage Lifting Vertical Profile Projector,DP100 Digital Profile Projector |
||

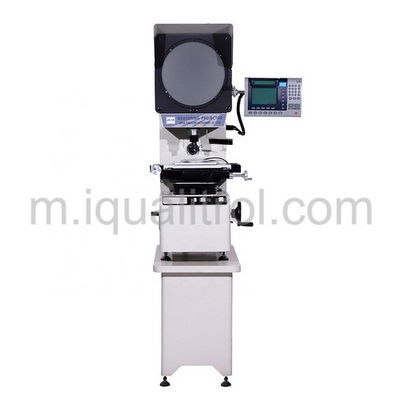

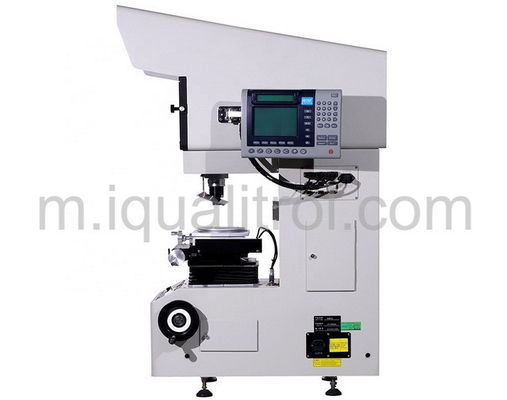

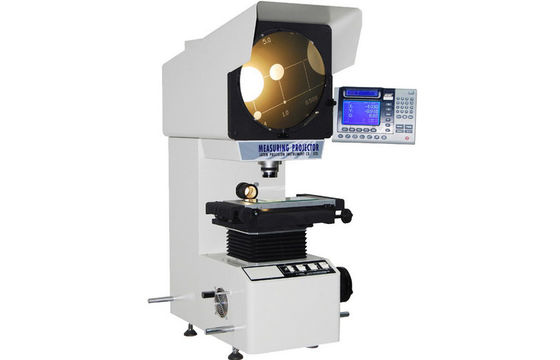

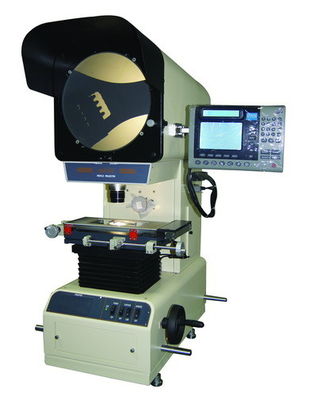

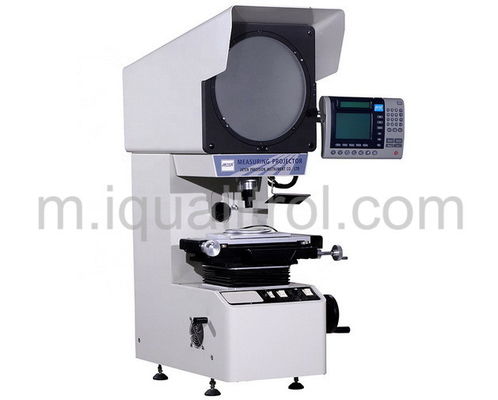

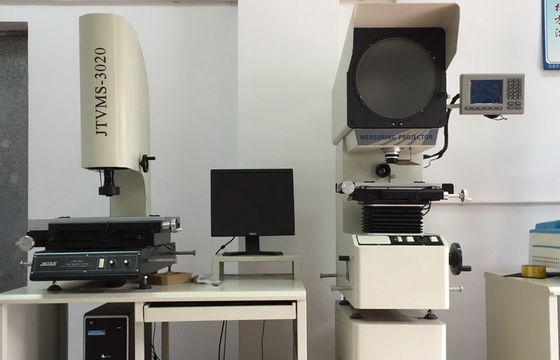

Stage Lifting Vertical Profile Projector VT12-1550 with 300mm Screen and Digital Readout DP100
Technical Data Download: iqualitrol Profile Projector iPro-E01
Product Features:
1, 300mm diameter screen with digital protractor;
2, Double steel guide for stage lifting focus system;
3, Halogen profile and surface illumination adjustable;
4, Geometric multifunctional data processing system upgrade to DRO DP100;
5, Built-in Mini-printer;
6, Available 10x,20x,50x,100x objective, rotary table, edge detector, etc.
Technical Specifications:
| Reverse Image | iPro-E01 (VT12-1550) | iPro-E02 (VT12-2010) | |||
| Obverse Image |
iPro-E01Z (VT12-1550Z) |
iPro-E02Z (VT12-2010Z) |
|||

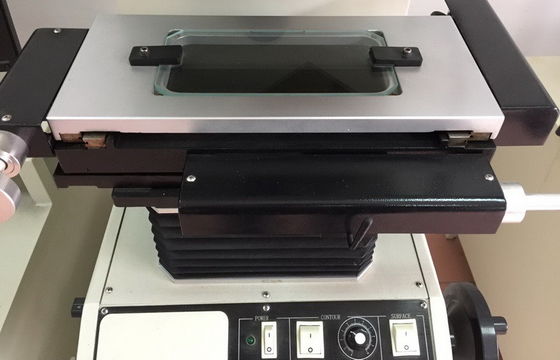

| Metal Stage Size |
340x152mm |
350x170mm | |||
| Glass Stage Size |
196x96mm |
246x120mm | |||
| Stage Travel:X Y-axis |
150x50mm |
200x100mm | |||
| Stage Travel:Z-axis | 100mm (for focusing) | 100mm (for focusing) | |||
| Accuracy |
≤3+L/200(um) |
≤3+L/200(um) | |||
| Resolution of X-Y |
0.0005mm |
0.0005mm | |||
| Screen | Diameter :Ø312mm,Effective Range ≥ Ø300(with “* ” Reticle) | ||||
|
Rotary Range: 0~360° ; Resolution Rotary Indicator: 1’ or 0.01° |
|||||
| Digital Readout | DP100 Multifunctional Data Processing System | ||||
| Illumination | Surface and Contour Illumination: 24v/150w halogen lamp (adjustable); |
||||
| Cooling System | Forced Cooling (3-axis-fans) | ||||
| Power Supply | AC110V/60Hz; 220V/50Hz,650w | ||||
| Dimension(L×W×H) | 780x530x1150mm | 780x530x1150mm | |||
| Packing Dimension | 990x765x1340mm | 990x765x1340mm | |||
| Gross/Net weight | 200/150kg | 220/170kg | |||
Standard Delivery:
| Digital Readout DP100 | 10x Objective | Screen Clamp Device |
| Built-in Mini-printer | Transmitted lens | Operation Manual |
Optional Accessories:
| Measuring Software | Rotary Table RT1 | Rotary Table RT2 | Printing Paper |
| 20x Objective | 50X Objective | 100X Objective | Edge Detector |
| Holder Clamp | V-shape Clamp | Swivel Center Support | Standard Block |
| Working Cupboard | Over-Chart | Foot-Switch |
