| Model: | IVideo-E64 (VTC-2010) | Accuracy: | ≤3+L/200(um) |
|---|---|---|---|
| Video: | 1/3” Color CCD Camera | Lens: | 0.7～4.5x Detented Zoom Lens |
| Magnification: | 30X～190X | Light: | Adjustable LED Surface And Contour Illumination |
| High Light: | Touch Screen Vision Measuring Machine,Vertical Vision Measuring Machine,Vertical Visual Measurement Machine |
||

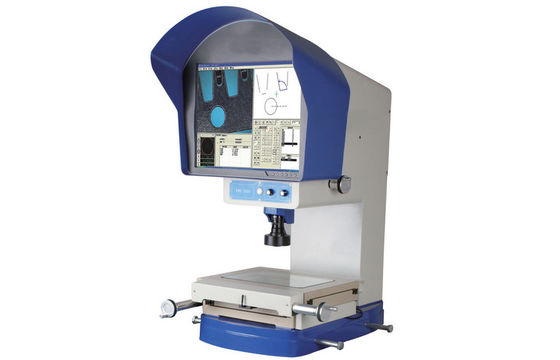

19" Touch Screen Vision Measuring Machine QM2.0 Software Vertical Video Measuring Machine
Model: iVideo-E64 (VTC-2010)
Technical Data Download:iqualitrol Vision Measuring Machine iVideo-E64
Features:
► Solid framework, large LCD touch screen and advanced QM2.0 software;
► High quality optics for crisp and clear images;
► Adjustable LED surface and contour illumination;
► High resolution industrial CCD camera;
► 6.5X Detented zoom lens changeable within the range of 30-190x magnification
► Extended function of printing,saving and exporting data;
► Excel,word or txt multi-format report output,and DXF input and output;
► Non-contact optical height measurement;
Technical Specifications:
| Model |
iVideo-E64 VTC-2010 |
iVideo-E65 VTC-2515 |
iVideo-E66 VTC-3020 |
| X/Y-axis Travel | 200×100mm | 250×150mm | 300×200mm |
| Z-axis Travel | 200mm | ||
| Accuracy | ≤3+L/200(um) | ||
| Repeatability | ±2um | ||
| Operation Mode | Manual(with auto edge detection) | ||
| Video Device | 1/3” color CCD camera, 0.7～4.5x Detented zoom lens | ||
| Screen Dimension | 19” LCD touch screen monitor | ||
| Video Magnification | 30X～190X(it can extend to 15X～380X) | ||
| Working Distance | 92mm | ||
| Measuring Software | Quick Measuring 2.0 | ||
| Max.Load Capacity | 10Kg | ||
| Suitable Environment | Workshop and Metrology room | ||
| Power supply | AC110V/60Hz,AC220V/50Hz | ||
| Dimension(D×W×H) | 760×650×1760mm | ||
| Net Weight | 150Kg | ||
Standard Delivery:
| Measuring Software | Color CCD Camera | Detented Zoom Lens |
| Calibration Block | Capture Card | Working Cupboard |
| 19” LCD Touch Screen | Built-in PC System | Operation Manual |
Main Applications:
