Stepless Speed Manual Metallographic Grinding and Polishing Machine Double Disc 200mm

Name: Stepless Speed Manual Metallographic Grinding and Polishing Machine Double Disc 200mm
Brand: iqualitrol
SKU: iGrind-814
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (164 reviews)

Large Image : Stepless Speed Manual Metallographic Grinding and Polishing Machine Double Disc 200mm

Product Details:

Place of Origin:	Dongguan/China
Brand Name:	iqualitrol
Certification:	CE
Model Number:	iGrind-814

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Plywood Box
Delivery Time:	20 Working Days
Payment Terms:	T/T
Supply Ability:	50 Sets per Month

Contact Now

Detailed Product Description

Diameter:	200mm (Opt. 250mm)	Speed:	Stepless Speed 50-600rpm
Rotate Direction:	Clockwise/Anti-clockwise	Disc Qty:	2
Rotation:	Direction Clockwise Anticlockwise	Power Supply:	AC220V/50Hz/1Ph 550W
High Light:	metallographic polishing machine , grinder polisher machine

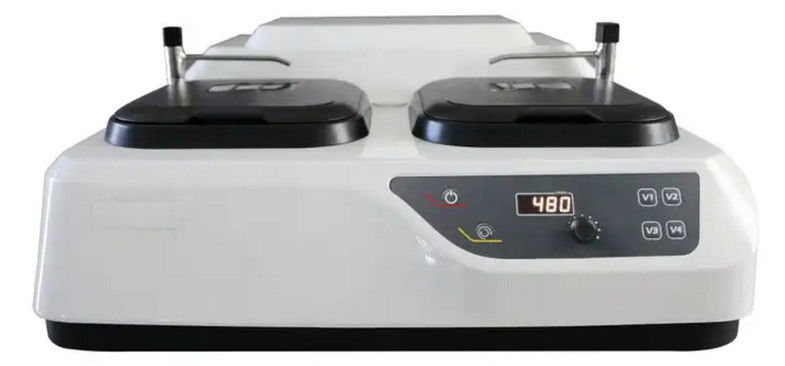

Stepless Speed Manual Metallographic Grinding and Polishing Machine Double Disc 200mm

Brief Introduction:

iGrind-814 is applicable to rough grinding, fine grinding and polishing of metallographic samples, it has microprocessor control system, with a speed of 50-600rpm.

The machine is an indispensable equipment in making the metallographic sample, and has a cooling device to cool the sample during grinding and polishing, thus preventing the damage of the metallographic structure caused by overheat. It is easy to use, safe and reliable, an ideal preparation equipment for the labs of factories, research institutes and universities and colleges.

Technical Parameters:

Model	iGrind-814
Disc Diameter	203mm (Opt. 250mm)
Rotation speed	50-600rpm
Rotate Direction	Clockwise/Anticlockwise
Power Supply	AC220V/50Hz/1Ph
Disc Quantity	2
Power Consumption	550W
Dimension	725x710x310mm
Net weight	50kg

Stepless Speed Manual Metallographic Grinding and Polishing Machine Double Disc 200mm 0
