Speed: | Rotate 50-1000rpm | Rotation: | Clockwise, Anticlockwise |
---|---|---|---|
Diameter: | Sample Dia. 30mm | Pressure: | 0.6-0.8Mpa |
Disc Qty: | Double | Cooling: | Water Cooling |
Highlight: | metallographic polishing machine,grinder polisher machine |

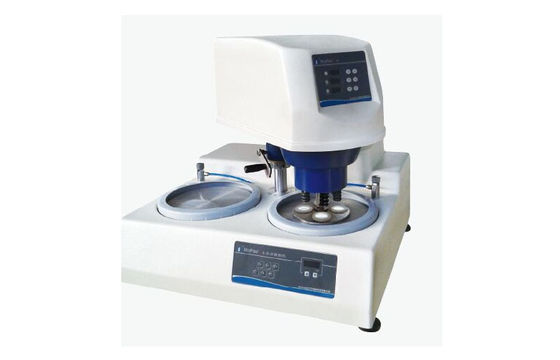

Double Disc Grinding and Polishing Machine with Automatic Polishing Head Sample Dia. 30mm
Brief Introduction:
iqualitrol iGrind-829 adopts advanced microprocessor control system, which makes grinding disc and grinding head speed stepless adjustable.
iGrind-829 has the features of clockwise or anticlockwise grinding disc rotation, quick-change grinding disc, vertical preparation fixture, pneumatic single point loading.
iqualitrol iGrind-829 equips with cooling device, abrasive scouring nozzle, beautiful and practical ABS shell, stainless steel standard parts, and never rust.
iGrind-829 is applicable to rough grinding, fine grinding, coarse polishing and fine polishing process, an ideal equipment for enterprises, scientific research institutions and colleges laboratory.
Technical Specifications:
Disc Quantity | 2 |
Disc Diameter | 250mm |
Disc Rotate Speed | 50-1000rpm |
Disc Rotation | Clockwise/Anticlockwise |
Head Speed | 5-100rpm |
Loading Range | 5-60N |
Set Time | 0-9999S |
Sample Diameter | 30mm(Opt. 22mm, 45mm) |
Illumination | LED |
Air Pressure | 0.6-0.8Mpa |
Power Supply | AC220V/50HZ/1Ph |
Power Consumption | 1.3KW |
Dimension | 730*710*635mm |
Net Weight | 98kg |
The metallographic grinding and polishing machine made by iqualitrol has passed CE certification. It features a sturdy and durable cast aluminum base, equipped with high-precision spindle and transmission mechanism, which effectively absorbs vibration during grinding and greatly increases comfort in use.
It can obtain smoother grinding samples and reduce laboratory noise. The machine can be equipped with a fast magnetic adapter, compatible with various diamond grinding systems, facilitating quick switching of various grinding consumables and greatly expanding the scope of equipment applications.
The stainless steel ceramic faucet customized by a Taiwanese sanitary ware manufacturer is used to meet the special needs of metallographic grinding, including water flow rate and angle, while also being aesthetically pleasing and practical.
The drainage system adopts an anti-clogging triangular waterway design to solve the problem of clogging caused by grinding consumables for long-term users. We use the shortest waterway distance and angle design to reduce the probability of clogging.
The waterproof film panel has 9 sets of grinding and polishing parameter memory functions. Different grinding speeds, directions, and times can be set for different materials and requirements, which can be changed at any time to meet different grinding and polishing needs.
When used for automatic polishing, an automatic dripping device can be purchased to allow polishing consumables (diamond suspensions, alumina powder, final polishing liquid) to automatically drip onto the polishing disc according to the set time.
Grinding and polishing machine iqualitrol iGrind-816 is a double-disc dual-control desktop machine, suitable for coarse grinding, fine grinding and polishing of the sample, and can meet two person working together.
The machine adopts micro-processing system, double-disc can be directly achieve separately 50-1000 rpm speed and 150 and 300 rev / min two-speed, so that the machine has a wider range of applicability.
With cooling device, it could cool the specimen while pre-grinding so as to avoid over heat to damage the metallographic organization.Convenient use, safe and reliable, it is the idea equipment of making specimen for the factories, research units , universities and collages.
