50-1000rpm Metallographic Grinding And Polishing Machine 550W Double Disc 203mm

Name: 50-1000rpm Metallographic Grinding And Polishing Machine 550W Double Disc 203mm
Brand: iqualitrol
SKU: iGrind-828
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (155 reviews)

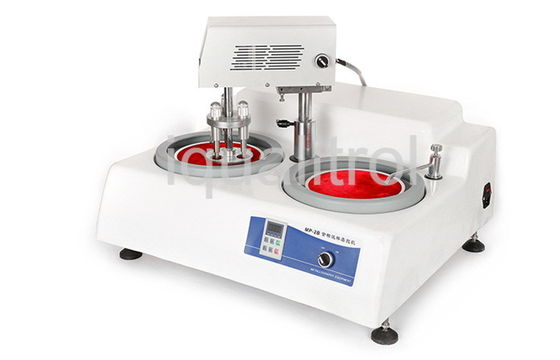

Large Image : 50-1000rpm Metallographic Grinding And Polishing Machine 550W Double Disc 203mm

Product Details:

Place of Origin:	Dongguan/China
Brand Name:	iqualitrol
Certification:	CE
Model Number:	iGrind-828

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Plywood Box
Delivery Time:	20 Working Days
Payment Terms:	T/T
Supply Ability:	50 Sets per Month

Contact Now

Detailed Product Description

Model:	IGrind-828	Speed:	Rotate Speed 50-1000r/min
Disc Dia.:	203mm	Power Supply:	AC220V/50Hz/1Ph, 550W
Disc Qty:	2	Application:	Pre-grinding, Fine Grinding And Polishing
High Light:	1000rpm Metallographic Grinding And Polishing Machine , Metallographic Grinding And Polishing Machine 550W , 203mm Double Disc Polishing Machine

Stepless Speed 50-1000rpm Double Disc 203mm Metallographic Grinding and Polishing Machine

Brief Introduction:

iqualitrol Double Disc iGrind-828 is suitable for pre-grinding, fine grinding and polishing metallographic specimens. Stepless speed can run between 50 and 1000rpm, which favors the machine with wide applications.

iqualitrol Double Disc iGrind-828 equips with cooling system which can cool down the specimen during primary grinding so as to prevent overheating and damage the metallographic structure.

Featuring easy operation and reliable performance, it is an indispensable device for the factories, research institutions and college labs to prepare metallographic specimen.

Polishing Head is Optional!

Technical Parameters:

Model	iGrind-828
Disc Diameter	φ203mm
Rotate speed	50-1000r/min
Input voltage	AC220V/50Hz/1Ph
Disc Quantity	2
Motor	550W
Dimension	725x710x310mm
Net weight	50kg
