Product Details:
Payment & Shipping Terms:
|
| Name: | Microscope CMOS Camera | Spectral Range: | 380-650nm (with IR-filter) |
|---|---|---|---|
| White Balance: | ROI White Balance | Recording System: | Static Picture And Movie |
| High Light: | 16MP Digital Video Microscope Camera,Microscope CMOS Camera,CMOS Microscope Camera |
||

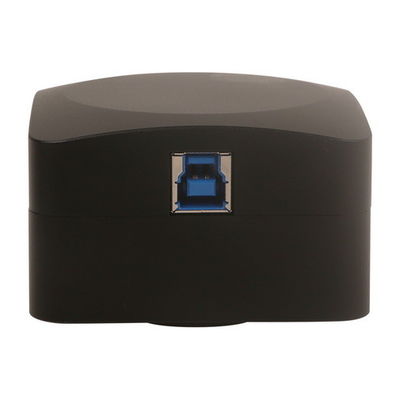

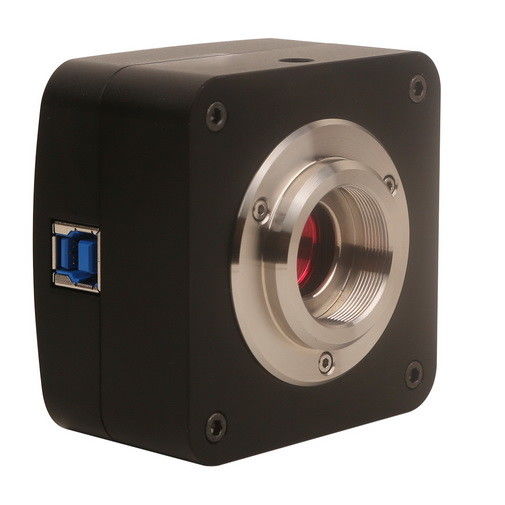

16MP USB3.0 Industry camera Digital Microscope Camera
Video Camera with Software
Technical Data Download: iqualitrol USB CMOS Camera and Software
Main Features:

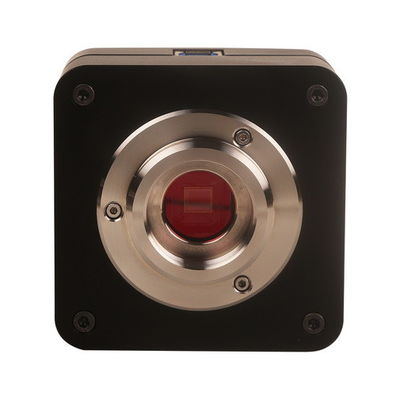

Standard C-Mount camera with Aptina CMOS sensor;
With hardware resolution among 0.35M to 14M;
Integrated zinc aluminum alloy housing;
USB2.0 interface ensuring high speed data transmission;
Ultra-Fine color engine with perfect color reproduction capability;

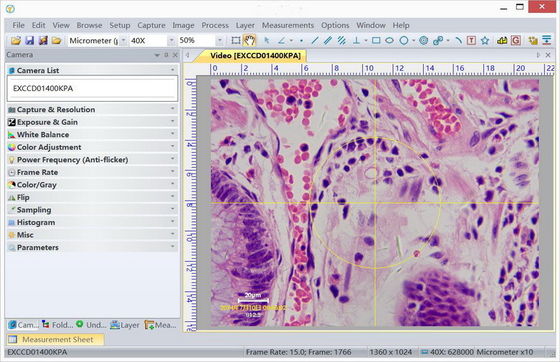

With advanced video & image processing application;
Providing Windows/Linux/OSX multiple platform SDK;
Native C/C++, C#, DirectShow, Twain Control API;
Ultra-high performance CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device. USB2.0 is used as the data transfer interface.
CMOS camera hardware resolutions range from 0.35M to 14M and comes with the Integrated zinc aluminum alloy compact housing.
CMOS comes with advanced video & image processing application; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
CMOS can be widely used in brightfield light environment and microscope image capture and analysis with moderate frame rate.
USB3.0 CMOS Camera Dimension:
Installation drawings. The CMOS Series USB2.0 Camera body, made from tough, CNC alloy, ensures a heavy duty, workhorse solution.
| Order Code |
Sensor & Size (mm) |
Pixel(μm) | Sensitivity Dynamic Range SN Ratio |
FPS/Resolution | Binning | Exposure |
| CMOS-14000KPA TP614000A |
14M/MT9F002(C) 1/2.3"(5.73x4.60) |
1.4x1.4 | 0.724v/lux-sec 65.3dB 35.5dB |
1.8@4096x3288 10@2048x1644 27@1024x822 |
1x1,2x2,4x4 |
0.4ms~ 2000ms |
| CMOS-10000KPA TP610000A |
10M/MT9J003(C) 1/2.3"(5.98x4.59) |
1.67x1.67 | 0.31v/lux-sec 65.2dB 34dB |
1.9@3584x2748 8@1792x1374 27@896x684 |
1x1,2x2,4x4 |
0.4ms~ 2000ms |
| CMOS-09000KPB TP609000B |
9.0M/Special(C) 1/2.4"(5.83x4.37) |
1.67x1.67 | 0.31v/lux-sec 65.2dB 34dB |
1.9@3488x2616 8@1744x1308 27@872x654 |
1x1,2x2,4x4 |
0.4ms~ 2000ms |
| CMOS-08000KPB TP608000B |
14M/Special(C) 1/2.5"(5.45x4.09) |
1.67x1.67 | 0.31v/lux-sec 65.2dB 34dB |
1.9@3264x2448 8@1600x1200 27@800x600 |
1x1,2x2,4x4 |
0.4ms~ 2000ms |
| CMOS-05100KPA TP605100A |
5.1M/MT9P006(C) 1/2.5"(5.70x4.28) |
2.2x2.2 | 0.53 V/lux-sec 66.5dB 40.5dB |
5@2592x1944 18@1280x960 60@640x480 |
1x1,2x2,4x4 |
0.294ms~ 2000ms |
| CMOS-03100KPA TP603100A |
3.1M/MT9T001(C) 1/2"(6.55x4.92) |
3.2x3.2 | 1.0 V/lux-sec 61dB 43dB |
8@2048x1536 22@1024x768 43@680x510 |
1x1,2x2,3x3 |
0.244ms~ 2000ms |
| CMOS-02000KPB TP602000B |
2.0M/Special(C) 1/2.6"(5.12x3.84) |
3.2x3.2 | 1.0 V/lux-sec 61dB 43dB |
16@1600x1200 50@800x600 |
1x1,2x2 |
0.244ms~ 2000ms |
| CMOS-01300KPA TP601300A |
1.3M/MT9M111(C) 1/3"(4.60x3.70) |
3.6x3.6 | 1.0V/lux-sec 71dB 44dB |
15@1280x1024 26@640x512 50@320x256 |
1x1,2x2,4x4 |
0.14ms~ 2000ms |
| CMOS-01300KMA TM601300A |
1.3M/MT9M001(M) 1/2"(6.66x5.32) |
5.2x5.2 | 2.1 V/lux-sec 68.2dB 45dB |
20@1280x1024 | 1x1 |
0.14ms~ 500ms |
| CMOS-00350KPA TP600350A |
0.35M/MT9V011(C) 1/4"(3.58x2.69) |
5.6x5.6 | 1.9V/lux-sec 60dB 45dB |
30@640x480 80@320x240 |
1x1,2x2 |
0.111ms~ 192.6ms |
| OTHER HARDWARE CONFIGURATION | |
| Spectral Range | 380-650nm (with IR-filter) |
| White Balance | ROI White Balance/ Manual Temp-Tint Adjustment |
| Color Rendering Technique | Ultra Fine Color Engine |
| Capture/Control API | Native C/C++, C#, Directshow, Twain, Labview |
| Recording System | Still Picture and Movie |
| Cooling System* | Natural |
| OPERATING ENVIRONMENT | |
| Operating Temperature | -10℃~ 50℃ |
| Storage Temperature | -20℃~ 60℃ |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 5V over PC USB Port |
| SOFTWARE ENVIRONMENT | |
| Operating System | Support Microsoft Windows XP / Vista / 7 /8 (32 & 64 bit) OS X (Mac OS X), Linux |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
| Memory: 2GB or More | |
| USB port: USB2.0 High-speed Port | |
| Display: 17" or Larger | |
| CD-ROM | |
