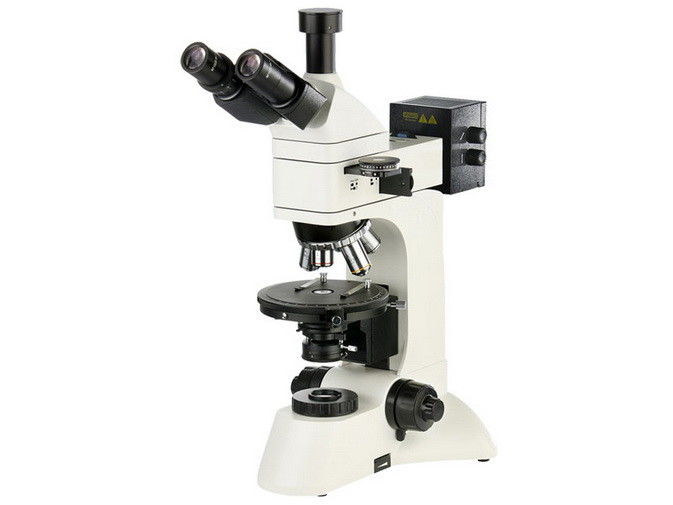

Infinity optical transmitted reflected polarizing microscope iXPL-3230X for geology research

Infinity optical transmitted reflected polarizing microscope iXPL-3230X for geology research
Infinity optical transmitted reflected polarizing microscope iXPL-3230X for geology research

Large Image :  Infinity optical transmitted reflected polarizing microscope iXPL-3230X for geology research

Product Details:
Brand Name: iqualitrol
Model Number: iXPL-3230X
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Carton Box
Delivery Time: 10 Working Days
Payment Terms: T/T
Supply Ability: 30 Sets per Month
Detailed Product Description
Model: IXPL-3230X Magnifications: 50X-600X
Illumination: 6V30W Halogen Lamp Objective: Infinity Long W.D Plan Objective
Polarizing: Transmitted & Reflected Name: Inverted Research Microscope
Highlight:

Metallurgical Optical Microscope

,

Trinocular Research Microscope



Infinity optical transmitted reflected polarizing microscope IQUALITROL iXPL-3230X for geology research


Brief introduction:
iqualitrol iXPL-3230X transmitted & reflected polarizing microscope is utilized polarizing light to observe and research the matter which have double refraction features, the user can make single polarizing observation, orthogonal observation, conoscope observation.

It is applied in geology, chemicals, physic and leechdom fields, widely used to observe the crystal of liquid macromolecule polymer, biomedical polymer and liquid crystal. It is the ideal instrument for scientific research and universities teaching demo.

Technical Specifications:

Model iXPL-3230X
Eyepiece Wide field WF10X(Φ22mm)
Dividing eyepiece(field number:Φ22mm) 0.10mm/Div
Objective Strain-free plan achromatic objective (no cover glass)
PL L5X/0.12 (Work distance):26.1 mm
PL L10X/0.25 (Work distance):20.2 mm
PL L40X/0.60 (spring) Work distance: 3.98 mm
PL L60X/0.75 (spring) Work distance: 2.03 mm

Reflected illuminating
system

6V30W halogen, brightness enable control.
Polarizer can be rotated 360°.
Analyzer can be rotatable 360° with scale and minimum vernier
Integrated field and aperture diaphragm.
Nosepiece Quadruple (the center of nosepiece is adjustable )
Intermediate attachment Puller type bertrand lens
Compensator λ , λ/4 and quarts wedge compensator.
Eyepiece tube Trinocular is inclined 30˚ and enable to shoot in 100% light flux.
Focus system Coaxial coarse/fine focus with tension adjustable and up stop device, minimum division of fine focusing: 2μm.



Features:
1, Adopt infinity optical system and modularization function design.
2, Infinity long W.D plan objectives, the field of view is widely and clear.


3, Wide-field plan eyepieces: field number Ф22mm.
4, Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.


5, Polarizing unit can be move out or into optical path, polarizer and analyzer can be rotated from 0°to 360°.
6, Rotatable stage, 360° graduated in 1° increments, minimum retardation resolution 6' center adjustable and with tightener Stage vertical effective movement up to 30mm.


7, Wide voltage range power supply (85-265V 50/60Hz), 6V30W halogen lamp, brightness adjustable.
8, Trinocular can be observation for eyepieces and microphotography in 100% light flux, suits for low illuminance microphotography.


Optional Accessories:

Name Sort/Technique parameter NO.
Infinity objective Strain-free plan achromatic objective (no cover glass)
PL L 20X/0.40(Work distance):8.80mm 2860120
PL L50X/0.70 (spring) Work distance: 3.68 mm 2860150
PL L80X/0.80 (spring) Work distance: 1.25 mm 2860180
PL L100X//0.85(spring) (Work distance):0.4 mm 2860111
Nosepiece Quintuple(Backward ball bearing inner locating) 032004
Slide moving holder Moving range: 30mmX25mm 116202
CCD adapter 0.4X 810001
0.5X 810004
1X 810002
0.5X with dividing 0.1mm/Div 810003
Camera DV-1 Video output 380/520 TV line USB output  0.42 M pixel 800001
DV-2 With USB output 1.3M,3.0M,5.0M,10.0Mpixel 800003
DV-3 With video output 380/520 TV line 800005
Digital camera adapter CANON(A570,A610,A620,A630,A640,A650,EF) NIKON( F) 820001
