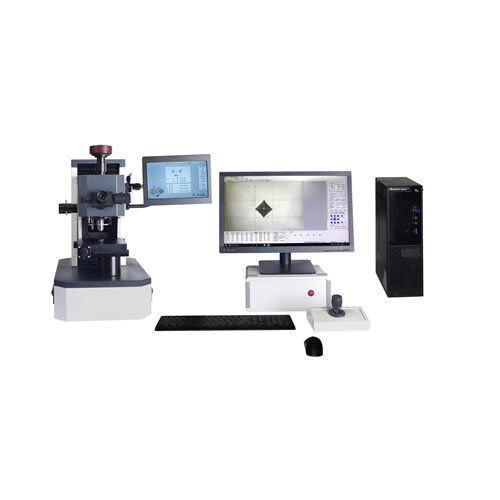

Indenter Lifting Structure Automatic Micro Vickers Hardness Tester JMHVS-1000XYZ
Download Technical Data: Micro Vickers Hardness Tester JMHVS-1000XYZ
Brief Introduction:
The iqualitrol JMHVS-1000XYZ Automatic Precision micro Vickers Hardness Tester equips with indenter lifting structure. It is especially suitable for the testing of large-sized workpieces. Moreover, it has good reliability, operability and intuition.
JMHVS-1000XYZ adopts computer software programming, high-power optical measurement system and closed-loop control technology of sensors.
JMHVS-1000XYZ equipped with indentation image automatic analysis system, which can not only photograph and measure the indentation and observe metallographic structure of materials, but also measure the depth of hardened layer of workpiece by planning path.
It is suitable for measuring Vickers hardness thin specimens, surface coating and other brittle materials such as glass, ceramics, agate, gemstone, etc.
Technical Specifications:
| Model | JMHVS-1000XYZ |
| Test Forces | 10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1kgf |
| 0.098N, 0.245N, 0.49N, 0.98N, 1.96N, 2.94N, 4.9N, 9.8N | |
| Executive Standards | GBT4340, ISO 6507, ASTM E92 |
| Loading Control | Automatic loading, dwell and unloading |
| XY Platform and Z axis |
Motorized XY platform and Z axis focusing: 1, XY travel 50mm*50mm, size 200mmX180mm, repeatability< 2um, XY Z movement resolution 2um 2, Speed is adjustable for XY Z movement 3, Click the mouse to control movement, or by entering the distance to move; 4, Support the movement by joystick, provide timely feedback on mobile location |
| Loading Mode and Path Settings |
Multiple methods ensure users can still obtain satisfactory measurement results even when the sample placement is not vertical or horizontal. Two-point method: Click any two points on the sample image to specify the movement direction of the stage; |
| Automatic measurement | Automatically load point by point along the set loading path, automatically focus, and automatically measure indents to calculate hardness values, and plot the hardening curve; |
| Camera and Calibration |
1, 3MP USB CMOS Camera; 2, support calibration by hardness blocks and micrometers 3, In order to improve measurement accuracy, different test forces can be calibrated separately, and the system loads them automatically. |
| Hardness conversion and compensation | Conform ASTM E140 |
| Data Statistics | Automatically calculate average hardness, variance, etc. |
| Measurement Algorithm | 1. Leading automatic reading technology — The leading automatic reading technology not only provides sub-pixel, high-precision, and high-repeatability results, but is also suitable for general indentation images, including those with slight rust, scratches, uneven lighting, or mild corrosion, with an extremely fast measurement speed; 2. Unique manual point selection and automatic point-finding technology — Users can roughly select points near the four corners of the indentation, and the system automatically determines the best corner positions for direct reading; this meets the habits of general users while greatly reducing their workload; 3. General manual measurement methods — Including 4-corner measurement, 2-diagonal measurement, etc. For 4-corner measurement, the four corners can be selected in any order, making it convenient for users. |
| Hardening curve | Automatically plot hardening curve |
| Data Storage | Original measurement data and images can be saved in the document for later retrieval and report printing; one file saves all the data of one measurement. |
| Test Report | Automatically generate WORD or EXCEL document reports; report formats can be customized; standard formats include hardness values for each measurement point, statistical values, indentation images, and hardening curves, etc. |
| Knoop Hardness | Support Knoop hardness test |
| Resolution | 0.01μm |
| Hardness range | 5-3000HV |
| Magnifications | 100X |
| 400X | |
| Turret | Auto Turret |
| Conversion Scales | HRHBHV |
| Dwell Time | 5-60 seconds |
| X-Y anvil | Size: 100*100mm, travel: 25*25mm |
| Vertical space | 180mm |
| Depth throat | 110mm |
| Power supply | AC220V±5%, 50-60Hz |
| Dimension | 490*350*540mm |
| Weight | 60kg |
Main Features:
1, XYZ Sample Movement Control: The system supports XY motorized sample stage movement and Z-axis control; including manual control, motorized control (joystick control), and automatic control (software control). X-Y directions can move synchronously. Motorized control uses a three-dimensional joystick, designed based on ergonomic principles, simple and convenient, and operates at will.
2, Software Control and Loading Modes:
2.1, Positioning Movement Loading: The stage moves directly to the software-set position for loading.
2.2, Fixed-Point Movement Loading: Select any point on the sample, move it under the indenter, and load.
2.3, Directional Movement Loading: Use mouse clicks to control the stage to move in any of eight directions; movement step size can be set and load applied.
2.4, Arbitrary Position Loading: Drag the stage with the mouse to move in any direction, allowing the user to view the sample surface; a loading point can be set at any position.
3, Variable Speed Movement: When the platform moves, five speed levels are available.
4, Other Functions: Arbitrary origin setting, automatic reset, mechanical limits, and other professional functions to meet various requirements.
5, Fully Automatic Operation: The system automatically moves along a preset multi-point path, automatically rotates the turret, automatically loads, automatically focuses, and automatically measures, while automatically plotting the hardening curve.
6, Hardness Value Conversion, Correction, and Effective Verification: The system can convert measured micro Vickers hardness values into other hardness scales such as HB, HR, etc.; it can also effectively verify sample measurement values.
