| Model: | IPT-2091A | Insulation: | At Least 100mm Rigid Polyurethane Foam |
|---|---|---|---|
| Front Door: | With High-quality Bakelite And Fiberglass Door Frame As Heat Conduction Partition | Circulation System: | Aluminum Wind Wheel With High And Low Temperature Resistance And Multiple Blades |
| Highlight: | Precise Non Destructive Testing Equipment,CE Non Destructive Testing Equipment,Digital Gloss Meter 305g |
||

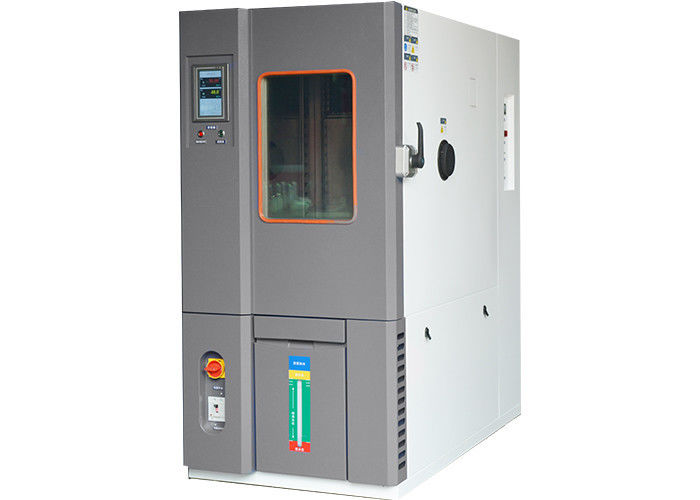

225L 408L Temperature Humidity Testing Machine , High Temperature
Low Humidity Chamber 150L
Application range:
Programmable constant temperature and humidity testing machine is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance, with the touch-screen liquid crystal display screen, simple to operate and program easy to edit.
It can show the system operating data, implementation and et-up process curve. A trouble occurs in operation, the screen automatically displays the trouble and provide method for trouble shooting.
Technical Specifications:
| Model. | iPT-2091A | iPT-2091B | iPT-2091C | iPT-2091D | iPT-2091E |
| Volumn | 80L | 150L | 225L | 408L | 800L |
| Inner Cabinet (mm) |
400×400 ×500 |
500×500 ×600 |
500×600 ×750 |
600×800 ×850 |
1000×800 ×1000 |
| Temperature Range (℃) | F: -20℃, L: -40℃, T: -60℃, G: -70℃ ~ 150℃ | ||||
| Item Name | Simulated Temperature Humidity Controlled Environmental Test Chamber Floor Type | ||||
| Humidity Range (%RH) | 20%R.H ~ 98%R.H | ||||
| Temperature Fluctuation (℃) | ±0.5℃ | ||||
| Temperature uniformity (℃) | ≤ ±2℃ | ||||
| Humidity fluctuation (%RH) | ±2.5%RH | ||||
| Humidity uniformity (%RH) |
|
||||
| Heating rate (℃) | 3℃/min (No-load) | ||||
| Cooling rate (℃) | 0.7 ~ 1℃/min (No-load) | ||||
| Temperature and humidity control system | LCD digital display controller. | ||||
| Heated Humidification system | Nichrome wire-efficiency heater, UL-shaped stainless steel plating heater | ||||
| Cooling System |
|
||||
| Inner Material | SUS#304 stainless steel. | ||||
| Outer Material | Spray color galvanized steel sheet. | ||||
| Insulation Materials | Ultra-fine glass fiber insulation cotton. | ||||
| Communication | Equipped with a standard RS232C / RS485 communication interface, the maximum transmission distance of 1.2Km, the fastest communications up to 9600bps, can be realized with a computer connected to the remote monitoring, easy to operate. | ||||
| Subsidiary function | Fault alarm and reason prompts, you can change the name of the fault, the upper temperature limit protection, timing and the reservation (automatic stop and start function), multiple (up to 6 groups) PID temperature control separate segments, curve display and save the function display PV curve 0-8 days. Temperature can be set according to the linear operation (liters can set per hour up / cooling rate). | ||||
| Standard configuration |
|
||||
Structure Features:
1. SUS304# stainless steel plate is adopted in the test case; There are test rails on both sides of the inner box; The insulation is made of at least 100mm rigid polyurethane foam. The front door of the inner box is connected with high-quality bakelite and fiberglass door frame as heat conduction partition, with excellent low temperature insulation performance; The airtight seal on the door is made of silica gel foam with a certain temperature resistance range.
2. Air supply circulation system: aluminum wind wheel with high and low temperature resistance and multiple blades is adopted uniformly. The upper louver is driven by the motor to supply air, and the lower side returns air.
● insulation material: hard polyurethane foam + glass wool
● Chamber door:
1. single door, left open, handle on the right
2. product observation window, three-layer vacuum layers
3. embedded non-reaction plane handle
4. door hinge: SUS# 304
5. light lamp in the test box, 11W
6. silica gel foam strips , 2 pieces
7. electric heating automatic mist removal device 1 set
8. touch frozen scald device, 1set
