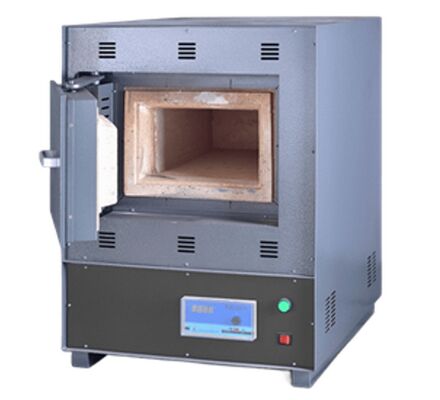

Intelligent Box Type High Temperature Oven Muffle Furance with Nickel Chrome Filament

Intelligent Box Type High Temperature Oven Muffle Furance with Nickel Chrome Filament
Intelligent Box Type High Temperature Oven Muffle Furance with Nickel Chrome Filament Intelligent Box Type High Temperature Oven Muffle Furance with Nickel Chrome Filament Intelligent Box Type High Temperature Oven Muffle Furance with Nickel Chrome Filament Intelligent Box Type High Temperature Oven Muffle Furance with Nickel Chrome Filament

Large Image :  Intelligent Box Type High Temperature Oven Muffle Furance with Nickel Chrome Filament

Product Details:
Place of Origin: DONGGUAN
Brand Name: iqualitrol
Certification: CE
Model Number: iSXⅡ
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: T/T
Supply Ability: 50 Sets per Month
Detailed Product Description
ISXⅡ-4-10: 120*200*300mm, Temp 1000℃ ISXⅡ-5-12: 120*200*300mm, Temp 1200℃
ISXⅡ-8-10: 160*250*400mm, Temp 1000℃ ISXⅡ-8-12: 160*250*400mm, Temp 1200℃
High Light:

Intelligent High Temperature Muffle Furnace

,

High Temperature Muffle Furnace Oven



Intelligent Box Type High Temperature Oven Muffle Furance with Nickel Chrome Filament



Technical Parameters:

Model Power
KW
Temp range
Voltage
V
Inner size
(mm)
(H*W*D)

Overall dimension
(mm)
(H*W*D)
Packing size
(mm)
(H*W*D)

Net weight
(KG)
Shiping weight
(KG
iSXⅡ-4-10 4 1000 220 120*200*300 640*490*630 760*570*710 155 180
iSXⅡ-5-12 5 1200 220 120*200*300 640*490*630 760*570*710 155 180
iSXⅡ-8-10 8 1000 380 160*250*400 780*580*770 900*660*850 235 250
iSXⅡ-8-12 8 1200 380 160*250*400 780*580*770 900*660*850 235 250





Product introduction:
iqualitrol high-temperature oven (resistance furnace) for laboratory, industrial and mining enterprises, scientific research units for element analysis and measured, small size steel hardening, annealing, tempering of heat treatment for heating, furnaces can also be used as a metal, ceramic sintering, dissolution and analysis of high heating use.

Feature:
●New type of high temperature resistant materials studio for furnace, heating element adopts special nickel-chrome filament production.
●The control component is arranged in the lower part of the furnace, to avoid damage caused by high temperature electrical components.
●The lever type furnace door design of hallux valgus, convenient operation.
●The furnace and the furnace shell with high density insulation materials, special insulation design, more efficient.
●Shell porous cooling design, make the furnace shell and low surface temperature.
●Temperature control system digital display, intelligent PID control technology, high precision of temperature control, has temperature alarm function.
●The overall design is novel and beautiful appearance, strong practicality.



Intelligent Box Type High Temperature Oven Muffle Furance with Nickel Chrome Filament 0



Intelligent box type high temperature muffle furnace:
Intelligent box type high-temperature oven (resistance furnace) for laboratory, industrial and mining enterprises, scientific research units for element analysis and measured, small size steel hardening, annealing, tempering of heat treatment for heating, furnaces can also be used as a metal, ceramic sintering, dissolution and analysis of high heating use.


New type of high temperature resistant materials furnace, heating element adopts special nickel-chrome filament production, higher durability.
Density insulation materials, more effective; microcomputer control, digital display, over-temperature alarm.



Intelligent Box Type High Temperature Oven Muffle Furance with Nickel Chrome Filament 1
