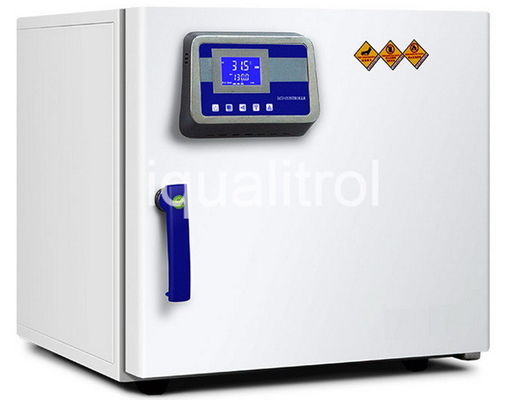

Large LCD Forced Convection Thermostatic Drying Oven With Cavity Preheating Technology

Large LCD Forced Convection Thermostatic Drying Oven With Cavity Preheating Technology
Large LCD Forced Convection Thermostatic Drying Oven With Cavity Preheating Technology Large LCD Forced Convection Thermostatic Drying Oven With Cavity Preheating Technology Large LCD Forced Convection Thermostatic Drying Oven With Cavity Preheating Technology Large LCD Forced Convection Thermostatic Drying Oven With Cavity Preheating Technology

Large Image :  Large LCD Forced Convection Thermostatic Drying Oven With Cavity Preheating Technology

Product Details:
Place of Origin: DONGGUAN
Brand Name: iqualitrol
Certification: CE
Model Number: iGX-40
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: T/T
Supply Ability: 50 Sets per Month
Detailed Product Description
Model: IGX-40, IGX-70, IGX-130 Name: Thermostatic Drying Oven
Convection: Forced Convection Controller: Microprocessor PID
Temp Range: RT+5℃~250℃ Internal Size: 350×350×350mm
Inside Material: SUS304 Stainless Steel Inner Power: AC220V/50Hz/770W
High Light:

Large LCD Thermostatic Drying Oven

,

Forced Convection Thermostatic Drying Oven



Large LCD Forced Convection Thermostatic Drying Oven with Cavity Preheating Technology



Product Introduction:
● The advanced cavity preheating technology is the heating elements evenly distributed around the inner chamber, pro-heating of the cavity inner wall, and then through the heat transfer and forced-fan convection, so that the cavity temperature of every point can accurately achieve and maintain setting value, thus ensuring uniform distribution of cavity temperature.


● Uniform distribution of heat and low energy consumption, so the heat are not easily lost, the enables customers to use are also cost reduction.



Technical Parameters:

product model Thermostatic Drying Oven
iGX-40 iGX-70 iGX-130
Convection Mode Forced Convection
Control System Microprocessor PID
Temp. Range (℃) RT+5℃~250℃
Temp. Accuracy(℃) 0.1
Temp. Fluctuation(℃) ±0.5 (in the of range 50~240℃)
Temp. Uniformity 2% (in the of range 50~240℃)
Timer Range 0~99h,or 0~9999min,can be choose
Working environment Ambient temperature:10~30℃, Humidity<70%
Insulation materials Imported environmental protection type material
External Dimensions (H×W×D) 570×580×593mm 670×680×593mm 770×780×693mm
Internal Dimensions (H×W×T) 350×350×350mm 450×450×350mm 550×550×450mm
Interior Volume(L) 40 70 130
Interior steel materials SUS304 stainless steel inner
The number of standard tray 2
Power(W) 770 970 1270
Supply voltage 220V/50Hz
Net weight(KG) 40 48 65
Shipping weight(KG) 43 51 69
Packing size (H×W×D) 690×660×680mm 790×760×680mm 890×860×780mm





Cavity preheating technology air duct forced convection system; microcomputer control system. Insulation technology; intelligent numerical display/uniformity temperature.


Widely used in the drying, sterilization, heated storage, heat treatment and other fields, it is laboratories and research units' basic corollary equipment.


Can meet different temperature, it will provide a constant temperature, with the thermal insulation to ensure the smooth progress of the experiment and culture of the sample.

ALLFLOW™ Perfect Air Current Cycling:
● ALLFLOW™ air current cycling: perfect for convection, minimum temperature recovery time after opening. reasonable air inlet and outlet duct design, equip with international famous finned motor (no maintenance high durability) ensure an ideal result of samples culture.


● ALLFLOW™ air current cycling: keep temperature continuous and stable. The wind speed can be adjusted with fan switch function, ensure perfect sample culture environment.

ALLSENS™ Programmable PID Control:
●Integrated, dot-matrix LCD display. Chinese and English subtitles, all the parameters can be clear at a glance.
●User-friendly design display parameters: temperature, air velocity, run time, run/stop.


●Adaptive PID controller precisely control the temperature, prevent temperature soaring, keep working room temperature stable and uniform.
●User password control, built-in multifunctional memory menu, connect to multiple devices (up to 16 units), real-time monitoring.


●To meet customer needs, Time setting:0-99h, 0-9999min.
●All set operations are recognized voice prompts, easy to operate.


●Can use the remote control of computer software, professional supporting the operation ALLSENSTM programmable software (optional).

Pro-Insulation™ Insulation Technology:
●Based on the effective use of heat as a concept, use complete isolation design between the liner and shell to avoid energy loss due to heat transfer.


●Adopt Imports of high-density thermal insulation material wrapped liner, effective heating insulation and still stand.
●Good silicone door seal, isolation type hinge design, equip with buckle door handles, ensure excellent seal ability.


Excellent Imported Temperature Sensor:
●Imported industrial sensor PT100, short response time, low self-heating temperature.

Ergonomic Design:
●Laboratory of classical color design, international fashion design, arc-shaped design, for highest operational comfort.
●Integrated design that contains original outside handle and LCD screen, ergonomic structure, comfortable viewing angle, convenient to open the outside door and operate interface.


●Interval and number of mesh shelf can be adjusted according to customer requirements. Maximum capacity to meet customer needs.
●Comfortable vertical structure, maximize work chamber, working room in the upper, convenient to take.


●Double door design, easy observation samples, keep temperature stability, with bell-type lighting system.
Modern Manufacturing Processes

Technical parameters:
●Sheet metal parts use laser cutting and CNC bending technology. Cold-rolled sheets use three line of acidification anti-rust technology. Incubator surface use workmanship of spraying plastics.

Easy to Clean:
●Internal surface is smooth and less weld, easy cleaning and maintenance.
●Pull multilayer shelf design, less metal accessories, easy to clean.

Convenient Maintenance:
●Liquid crystal micro-computer controller with diagnostic function. Display operating parameters including historical record, temperature and humidity data.
●Electrical control components and working room are installed separately. installed behind incubator, easy to maintenance.

Secure and Efficient Protection Concept:
●Multiple over temperature protection function, sound and light alarm.
●Automatic double over temperature protection function.
●All electronic components are UL certified.
●All over temperature protection devices meet Germany standard DIN standard D12880 Class 3.1.
