|Mode:||Forced Convection||Control:||Microprocessor PID|
|Temp Range:||RT+5℃~55℃||CO2 Sensor:||IR Sensor (±0.1%)|
|Interior:||SUS304 Stainless Steel||Volume:||80L And 160L|
temperature cycle chamber,
temperature and humidity chamber

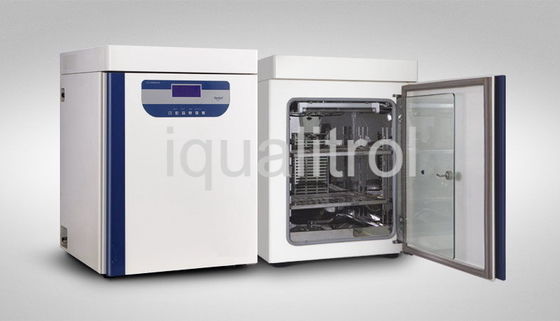

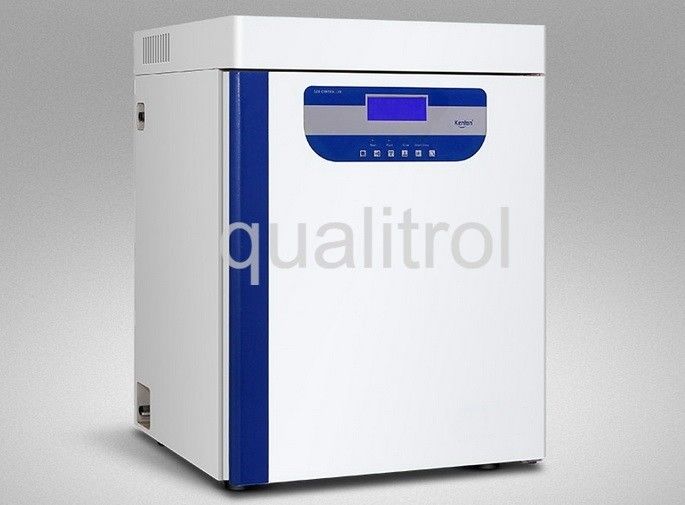

Preheating Technology Simulation Environment CO2 Incubator for Life Science Research
Data Sheet Download: iqualitrol CO2 Incubator
Used in cell culture, microbiology research, pathology and life science fields.
Creating a natural growth of the same simulation environment, adopt chamber heating technology to provide a stable temperature, the professional-grade IR CO2 sensor, more accurately detect CO2 concentration. Equipped with UV sterilization lamp, effectively prevent cross-contamination of cultivation.
|Convection Mode||Forced Convection|
|Control System||Microprocessor PID|
|CO2 Sensor/Uniformity||IR sensor (±0.1%)|
|CO2 Recovery Without overshoot (after 30 seconds door opening to 5%)||≤2 minutes|
|Temp. Recovery Without Overshoot(after 30 seconds door opening to 37℃)||≤8 minutes|
|Humidification Method||Humidity Pan＞95%(with Temp. display)|
|Working environment||Ambient temperature:10~30℃, Humidity <70%|
|Insulation materials||Imported environmental protection type material|
|Interior steel materials||SUS304 stainless steel|
|Number of Shelves||2||3|
|Power supply||Single phase AC220V/50Hz|
|Power Consumption (W)||500||650|
ALLHEAT™ Chamber Preheating Technology:
●ALLHEAT™ Chamber preheating technology is the heating element is evenly distributed in the interior pre-heating of the cavity inner wall, and then through the heat transfer and forced-fan convection, so that the temperature of each cavity can accurately reach and maintain the set value, thus ensuring uniform distribution of the cavity temperature.
●Chamber of six surface heating, in which the glass door to possession of the heating system to prevent condensation of glass doors.
●ALLHEAT™ series CO2 Incubator with low energy consumption and heat characteristics not easily lost. Save energy, enabling customers to use the cost reduction.
ALLFLOW™ Clean Air Circulation System:
●Perfect forced convection ALLFLOW™ of air circulation system to ensure the shortest of temperature recovery after door. With internationally renowned brands with a cooling fan (maintenance, durability), the experimental and the training effect to the extent desired;
●ALLFLOW™ air circulation system sufficiently to ensure the continuous stability of the temperature of the working chamber. Customer set temperature is reached, given the perfect environment for sample roasting / culture;
●CO2 inlet valve with a filter device to ensure cleanliness of the cavity gas;
●Equipped with UV sterilization system in the chamber regular basis to eliminate the cavity contaminating microorganisms, effectively prevent the training during the cross-contamination.
ALLSENS™ Programmable PID Controller:

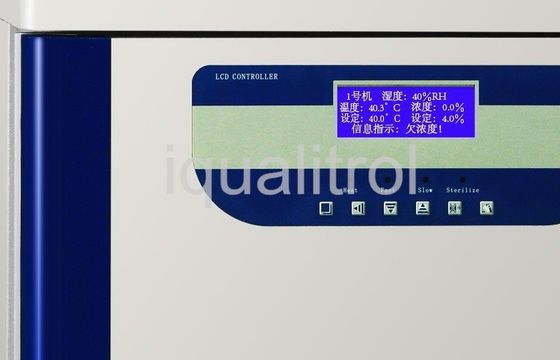

●Integrated, dot-matrix LCD display, Chinese and English subtitles, design for the highest operational comfort. Display parameters: Temp. Setting value; Temp. Measuring value, Humidity, CO2 setting value, CO2 measuring value, Heating, Fast input, Sloe input, Sterilization, run/stop.
●Adaptive PID controller precisely control the temperature and humidity, prevent temperature soaring, keep working room temperature stable and uniformity.
●User password protection, built-in multifunctional memory menu, connect to multiple devices (up to 16 units), real-time monitoring.
●Set operations with beep tips.
●Remote-controlled operation, with programmable ALLSENS™ software (option).
ALLMIST™ Inside Water Pan Humidification Technology:
●The original water pan liner integrated humidifier design, that the water quickly atomized.
●Soft air with water vapor of the water pan out the cavity humidity up and recovery, to ensure that the culture needed to saturated water.
Pro-Insulation™ Isolation Insulation Technology:
●Inner isolation gate design, take full account of customers in the observation of cavity samples, ensure the consistency of the cavity temperature.
●Based on the effective use of heat design, complete isolation between the liner and shell to avoid energy loss due to heat transfer.
●Imports high-density thermal insulation material wrapped liner, insulation well.
●Good silicone door seal, with the magnet outside the door design, ensure tightness.
Excellent Imported Sensor:
●Imported industrial sensor PT100, short response time, low self-heating temperature.
●Imported humidity sensor, aerospace material, no maintenance, precision humidity control level.
●Imported IR CO2 concentration sensor with automatic temperature compensation allows high humidity (＞ 98%) long-term use of the environment, high accuracy, low drift, and the CO2 concentration can be fast recovery characteristics.
●Laboratory of classical color design, international fashion design, arc-shaped design, for highest operational comfort.
●Integrated design that contains original outside handle and LCD screen, ergonomic structure, comfortable viewing angle, convenient to open the outside door and operate interface.
●Interval and number of mesh shelf can be adjusted according to customer requirements. Maximum capacity to meet customer needs.
●Vertical cabinet classic design of structural, electrical components located in the upper cabinet to facilitate maintenance.
●Comfortable vertical structure, maximize work chamber, working room in the upper, convenient to take.

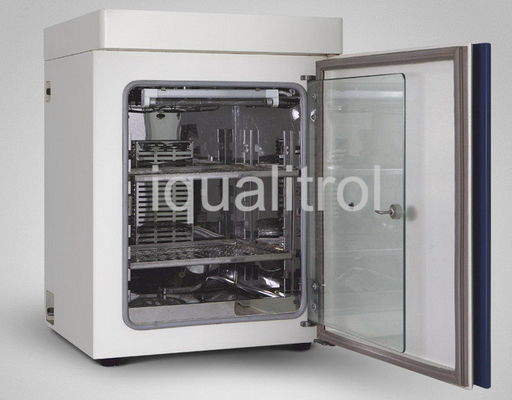

●Double door design, easy observation samples, keep temperature stability, with bell-type lighting system.
●With a test hole in the inner door, easy to test.
Modern Manufacturing Processes:
●Sheet metal parts use laser cutting and CNC bending technology. Cold-rolled sheets use three line of acidification anti-rust technology. Incubator surface use workmanship of spraying plastics.
●Inner chamber is made of SUS304 stainless steel materials.
Easy To Clean:
●Internal surface is smooth and less weld , easy cleaning and maintenance.
●Pull multilayer shelf design, less metal accessories, easy to clean.
●Drainage design of chamber humidification collecting tank. User can discharge water as required to avoid bacteria.
●Water pan drainage design, the user may need to open the valve, put the best water to avoid bacteria.
●Liquid crystal micro-computer controller with diagnostic function. Display operating parameters including historical record, temperature and humidity data.
●Electrical control components and working room are installed separately. installed behind incubator, easy to maintenance.
Secure and Efficient Protection Concept:
●Multiple over temperature protection function, sound and light alarm.
●Automatic double over temperature protection function.
●All electronic components are UL certified.
●All over temperature protection devices meet Germany standard DIN standard D12880 Class 3.1.
