Convection: | Forced-convection | Temp Range: | 0~60℃ |
---|---|---|---|
Humidity Range: | 40~95%RH | Feature: | High Efficiency And Energy Saving |
Fluctuation: | Humidity ±2% | Control: | Programmable PID |
Highlight: | AC220V Constant Climate Chamber,50Hz Constant Climate Chamber,PID Control Temperature Humidity Incubator |

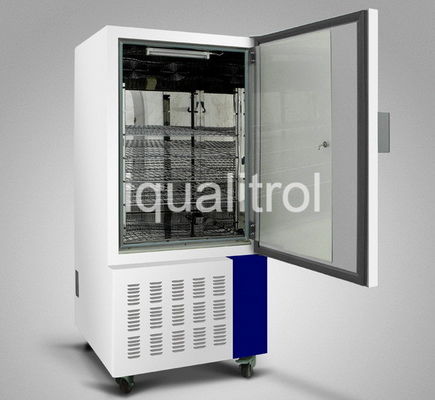

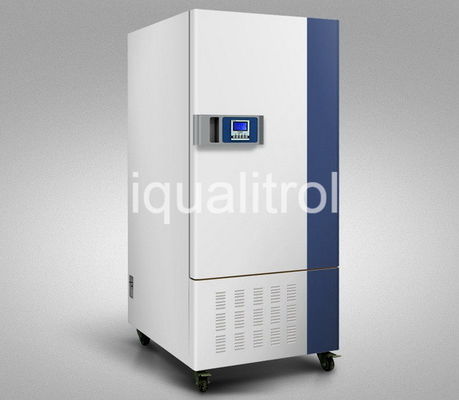

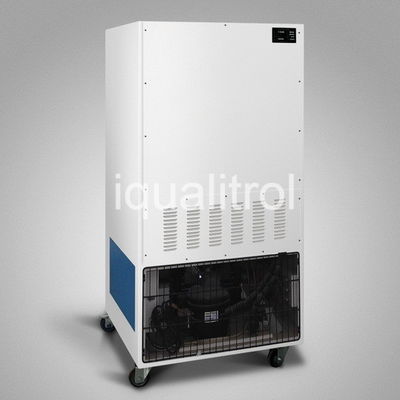

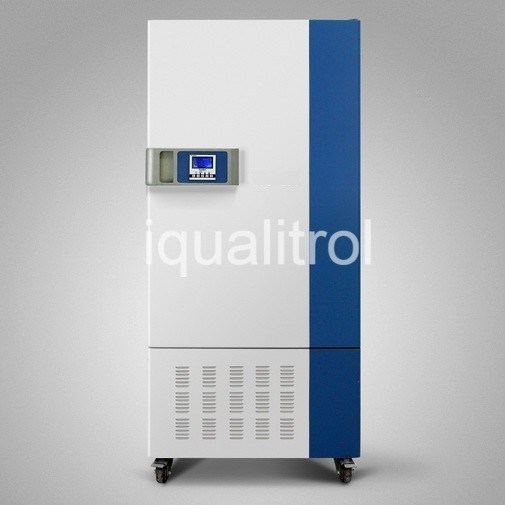

Constant Temperature Humidity Incubator for Pharmaceutical and Chemical Industry
Product introduction:
●World famous compressor: balanced refrigeration technology, auto defrost, multiple security system, long time running, environmental protection, high efficiency and energy saving.
●Auto-defrost function: original rapid heat pump defrost technology, for continuous operation, effectively prevent frost because of continuous operation of evaporator.
●Refrigeration effect manual control system: meet customer’s terrible work environment.
●Imported DuPont SUVA R134 an environmental refrigerant. For cleaner world, for better work condition.
●To save energy and reduce using cost.
Technical Parameters:
Technical Parameters | Constant Climate Chamber | ||
iWS-150 | iWS-250 | iWS-400 | |
Convection mode | Forced-convection | ||
Control mode | 30 Programmable PID Control System | ||
Sterilization function | — | ||
Temperature range (℃) | 0~60℃ | ||
Humidity range | 40~95%RH | ||
Temp. display resolution(℃) | 0.1 | ||
Temp. fluctuation(℃)(10-40℃) | ±0.5 | ||
Temp. spatial deviation(℃) (10-40℃) |
±1 | ±1.5 | |
Humidity fluctuation(RH) | ±2% | ||
Timing range | 0~99Hour ,Or 0~9999min | ||
Running environment | environment temp.10-30;relative humidity below 70% | ||
Heat insulator | imported environmental protection material | ||
External dimension (mm)(H×W×D) | 1410×650×680 | 1730×650×740 | 1700×745×930 |
Dimension of inner chamber (mm) (H×W×D) |
757×508×389 | 1088×508×449 | 1052×601×639 |
Volume of inner chamber (L) (H×W×D) | 150 | 250 | 400 |
Material of internal surface | SUS304 Interior steel materials | ||
Shelves | 3 | 4 | 4 |
Rated power(W) | 1080 | 1100 | 1350 |
Input voltage | AC220V/50Hz | ||
Net weight (KG) | 107.5 | 136 | 158.5 |
Gross weight (KG) | 133 | 162.5 | 188 |
Package size(mm) (H×W×D) |
1605×760×830 | 1935×760×890 | 1907×815×1090 |
Constant temperature and humidity incubator:
LED large screen display working status at any time monitoring; adaptive control temperature constant; original imported temperature sensor to reduce the impact of temperature; high efficient isolation technology to ensure the consistency of indoor and outdoor; high security; CE certification.
Stimulate various climatic conditions, especially used in samples tests, shelf life tests, long-term experiments and cultivation of plants, seeds and microorganisms.
Suitable for scientific research, pharmaceutical, foodstuff, materials science, cosmetics, tobacco, microbe, chemical industry, electronics and other fields.
ALLFLOW Perfect Air Current Cycling:
●ALLFLOW air current cycling: perfect forced convection, maximum samples number of working room, minimum temperature recovery time after the opening, world famous axial fan, perfect air current design, ensure an ideal result of samples culture.
●ALLFLOW air current cycling: keep temperature continuous and stable, keep humidity continuous and stable, ensure perfect sample culture environment.
ALLSENS™ programmable PID control:
●Integrated, dot-matrix LCD display, Chinese and English subtitles, design for the highest operational comfort.
●Display parameters: temperature, humidity, cycle, run time, run/stop.
●Adaptive PID controller precisely, control the temperature and humidity, prevent temperature soaring, keep working room temperature stable and uniformity.
●User password protection, built-in multifunctional memory menu, connect to multiple devices (up to 16 units), real-time monitoring.
●Programmable multi-sections control, to meet customer needs, temperature and humidity control up to 30 sets. Time setting: 0-99h, 0-9999m, programs can be executed automatically cycles.
●Set operations with beep tips Remote-controlled operation, with programmable software (option). Bacteria-free culture with UV disinfection (meet Mold incubator).
Excellent Imported Sensor:
●Imported industrial sensor PT100, short response time, and low self-heating temperature.
●Imported humidity sensor, aerospace material, no maintenance, precision humidity control level.
Efficient Isolation Design:
●Design of double-layer isolation, reduce power consumption, environmental protection concept, energy conservation.
●Internal isolated door design, easy observation of working room samples, keep temperature stability of working room.
ALLGENT™ Humidification System:
●Original design of humidification system, prevent disadvantages (non-uniformity, instability) of traditional atomizer design.
●Automatic water intake, automatic water level control, ensure the precision of humidity control.
●Stainless steel SUS304 internal surface and water tank, ensure the quality of atomization and uses persistent.
Ergonomic Design:
●Laboratory of classical color design, international fashion design, arc-shaped design, for highest operational comfort.
●Integrated design that contains original outside handle and LCD screen, ergonomic structure, comfortable viewing angle, convenient to open the outside door and operate interface.
●Interval and number of mesh shelf can be adjusted according to customer requirements. Maximum capacity to meet customer needs.
●Comfortable vertical structure, maximize work chamber, working room in the upper, convenient to take.
●Double door design, easy observation samples, keep temperature stability, with bell-type lighting system.
Modern Manufacturing Processes:
●Sheet metal parts use laser cutting and CNC bending technology. Cold-rolled sheets use three line of acidification anti-rust technology. Incubator surface use workmanship of spraying plastics.
Easy to Clean:
●Internal surface is smooth and less weld, easy cleaning and maintenance.
●Pull multilayer shelf design, less metal accessories, easy to clean.
●Drainage design of chamber humidification collecting tank. User can discharge water as required to avoid bacteria.
Convenient Maintenance:
●Liquid crystal micro-computer controller with diagnostic function. Display operating parameters including historical record, temperature and humidity data.
●Electrical control components and working room are installed separately. installed behind incubator, easy to maintenance.
Secure and Efficient Protection Concept:
●Multiple over temperature protection function, sound and light alarm.
●Automatic double over temperature protection function.
●All electronic components are UL certified.
●All over temperature protection devices meet Germany standard DIN standard D12880 Class 3.1.
