| Test Force: | From 0.01Kgf To 1Kgf | Dwell Time: | From 5 Seconds To 60 Seconds |
|---|---|---|---|
| Objectives: | 10X, 40X | X-Y Anvil: | 100 * 100mm |
| Max Height: | 110mm | Horizontal: | Space 85mm |
| High Light: | Auto Micro Vickers Hardness Tester,Mechanical Micro Vickers Hardness Tester,Vickers Testing Machine AC220V |
||

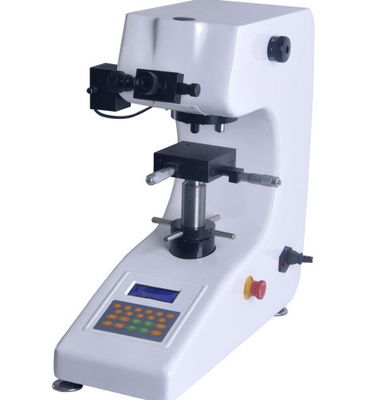

Mechanical 10X Eyepiece Motorized Turret Micro Vickers Hardness Tester Auto Loading Control
Technical Data Download: iqualitrol Micro Vickers Hardness Tester HV-1000Z
Model: HV-1000Z
Brief Introduction:
The iqualitrol automatic turret type micro hardness tester is a high-tech product of opto-mechatronics. The hardness tester is novel in design, has good reliability, operability and repeatability, and is an ideal product for testing micro hardness.
iqualitrol micro vickers hardness tester HV-1000Z equips with high-magnification optical measurement system and optical dual-channel structure, photoelectric, photo coupler and other new technologies.
Through the key operation, the length of the measurement indentation can be entered on the key, the hardness value can be displayed on the LCD screen, the conversion scale, the test force, the test force holding time and the number of measurements.
Main functions and features:
1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope. The brightness is adjustable, and it is visually comfortable. Long-time operation will not make you fatigued.
2. The industrial display screen can directly display the hardness value, the conversion hardness, the test method, the test force, the retention time, the number of measurements, and the test process is intuitive and clear;
3. Cast aluminum shell molding, stable structure won’t be easily deformed, pure white car paint high grade, anti-scratch ability, use for many years is still bright as new;
4. Our company has its own R & D design, production and processing capabilities, our machine life to provide parts replacement and maintenance upgrades.
5. HV-1000Z model can be achieved: observation - test - measurement of the position switch by the automatic turret
Application:
1. Iron and steel, non-ferrous metals, metal foils, hard alloys, metal sheets, microstructures
2. Carburizing, Nitriding and Decarburization Layers, Surface Hardening Layers, Plating, Coatings, Glass, wafers, ceramic materials
Technical Parameters:
| Micro hardness scale | HV0.01,HV0.025,HV0.05,HV0.1,HV0.2,HV0.3,HV0.5,HV1 |
| Display | Dwell time (seconds), hardness value |
| Test force (gf) | 10, 25, 50, 100, 200, 300, 500, 1000 |
| Loading control | Automatic (loading/dwell/unloading) |
| Test force retention time (s) | 5 to 60 seconds |
| Test force selection | External selector knob, test force is automatically displayed on the LCD screen |
| Objective magnification | 10X, 40X |
| Optical channel | Dual light channels (eyepieces and CCD camera channels) |
| Optical system | 1. 10x eyepiece; 2. The total magnification (μm): 100X (observation), 400X (measurement); 3. Measuring range (μm): 200; 4. Resolution (μm): 0.01 |
| Hardness measurement range | (5-3000) HV |
| XY test platform | Size (mm): 100X100 Travel range (mm): 25X25 Minimum reading (mm): 0.01 |
| Maximum height of specimen (mm) | 110 |
| Maximum width of specimen (mm) | 85 (distance from the center line of the indenter to the wall) |
| Voltage | AC220V/50HZ |
| Weight (kg) | 35 |
| Dimensions | (540×200×530)mm |
Standard configuration:
|
Main Unit |
Test platform, weight, microscope accessory box; |
| Weighs x6 | Weighs bar x1 |
| X-Y Cross table x1 | Sheet clamping table x1 |
| Flat mouth clamping table x1 | Filament holding table x1 |
| Level meter x1 | Screwdriver x2 |
| Horizontal adjustment screws x4 | External power cord x1 |
| 10x Micrometer Eyepieces x1 | Micro Vickers hardness block x2 (HV1, HV0.2 x1 for each ) |
| Fuses (1 A) x2 | Product certification x1 |
| Product Instruction Manual x1 | Dust cover x1 |
Note:
1. Optional side-sway lifting system makes the lifting system more stable and accurate
2. Optional hardness meter measurement software, eliminate human error, computer operation, improve efficiency, accuracy is more accurate.
3. Cooperation institutions: Nanjing University of Science and Technology, Hefei University of Technology, Harbin Institute of Technology, Wuxi Jiangnan University, Guilin University of Electronic Technology, etc.
