|Section:||Max 80mm (100mm For ICut-858)||Speed:||Rotation Speed 2100rpm|
|Disc Dia.:||Φ350 X2.5 X32mm||Power:||2.5KW, AC380V/50HZ/3Ph|
|Feed Speed:||1-10mm/min||Table:||Dimension 310mm X280mm|
specimen cutting machine,
abrasive cutting machine

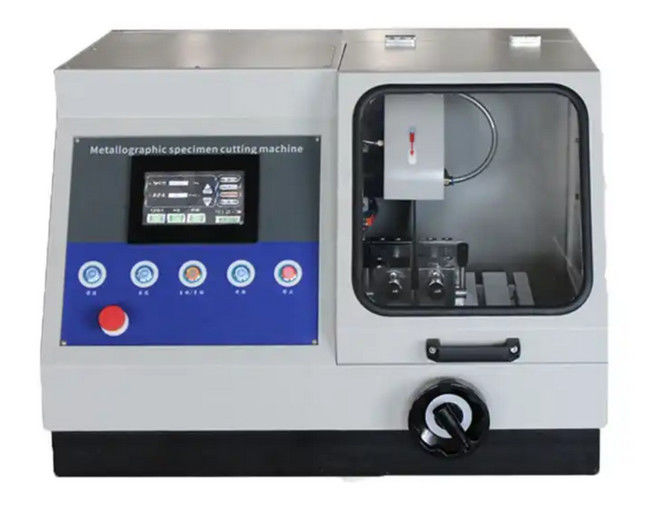

Recycle Water Cooling Automatic Metallographic Cutting Machine Motor Speed 2100rpm
Model iqualitrol iCut-857/858 cutting machine is composed of main machine, electric control box, cutting room, motor, cooling system, cutting grinding wheel and other parts.
The cutting machine can cut not only diameter of 100mm cylinder work-piece, but also can cut rectangular specimens within the cutting of height 70mm, depth 100mm.
Cooling system to prevent overheating and burning during the cutting process. Cutting speed can be preset in accordance with the different specimen so as to improve the quality of cutting samples.
Support manual cutting and automatic cutting. It is more convenient for users because of large cutting chamber.
|Input voltage||AC380V/50HZ/3Ph; AC220V/60HZ/3Ph|
|Cutting wheel size||Φ350 x2.5 x32mm||Φ350 x2.5 x32mm|
|MAX cutting diameter||Φ80mm||Φ100mm|
|Max moving travel||125mm||125mm|
|Max working table travel||275mm||275mm|
|Working table size||310mm x280mm||310mm x280mm|
|Dimension||835 x850 x620mm||900 x850 x620mm|
|Machine net weight||180kg||200kg|
|Tank net weight||25kg||25kg|
