Product Details:
Payment & Shipping Terms:
|
| Features: | Rugged And Reliable With Low Noise | CT-250S: | 2800rpm |
|---|---|---|---|
| CT-250V: | 1000-3500rpm(50/60Hz) | Cut-off Blade: | 250mm /10 Inch Diameter |
| Cut Mode: | Manually Chop Cutting | Cooling System: | Water Cooling 60L Tank |
| High Light: | Manual Metallographic Cut-Off Machine,2800rpm Manual Cut-Off Machine,10inch Manual Cut-Off Machine |
||

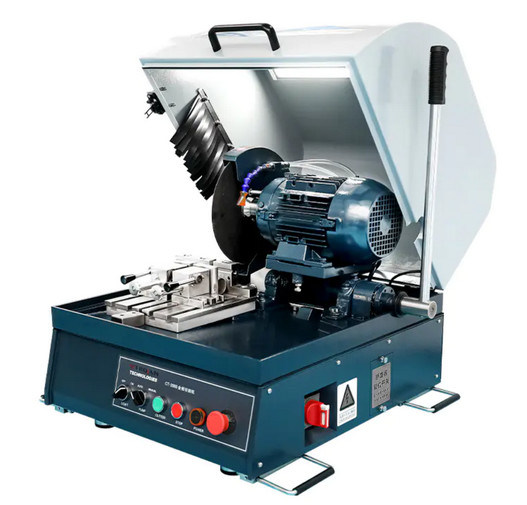

Safety Lock And Emergency Stop Rapid Cutting Manual Cut-Off Machine
Technical Data Download: iqualitrol Metallographic Cutting Machine CT-250S
Features:
1. Manually chop cutting, operation easily;

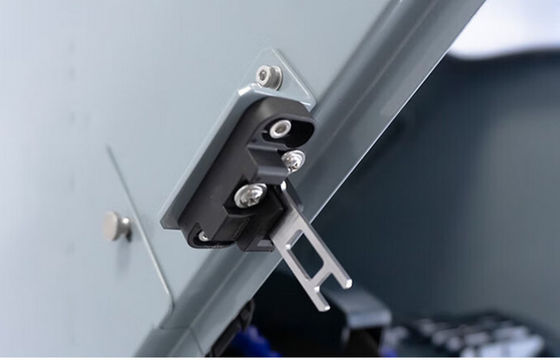

2. Omron electronic switch accessories, safe and reliable;
3. Huge observation window & high-brightness lighting system makes to observe the cutting process;
4. Super cooling system make sure the sample won’t burning during cutting;
5. The separate water tank and filter system can collect the swarf easily and Extend the life of the cut-off machine;
6. Rugged and reliable with low noise.
Application:
Ferrous metal, non-ferrous metal；
Castings, heat treatment samples, forgings；
Semiconductor, ceramics (with special cut-off wheels)；
Other metal and non-metal materials；
Technical parameter:
| Model | CT-250S | CT-250V |
| Max. Dia | Φ250 mm | |
| Cutting Capacity | Φ80 mm | |
| Feeding Mode | Manual | |
| Dimension of Table | 210*230 mm | |
| Power | 2.2 KW | |
| Power supply | 3x380V/50Hz Standard (220,440,480V/60Hz Option) |
|
| Wheel Speed | 2800rpm | 1000-3500rpm(50/60Hz) |
| Weight | 100 kg | 105 kg |
| Dimension W*D*H | 664*684*621mm (Close), 664*898x829mm (Open) | |
| Volume of the tank | 60L | |
| Dimension of the tank | 620x420x520mm | |
