Automatic Metallographic Sample Grinding And Polishing Machine LMP-3S

China Automatic Metallographic Sample Grinding And Polishing Machine LMP-3S supplier
Automatic Metallographic Sample Grinding And Polishing Machine LMP-3S supplier Automatic Metallographic Sample Grinding And Polishing Machine LMP-3S supplier Automatic Metallographic Sample Grinding And Polishing Machine LMP-3S supplier Automatic Metallographic Sample Grinding And Polishing Machine LMP-3S supplier Automatic Metallographic Sample Grinding And Polishing Machine LMP-3S supplier

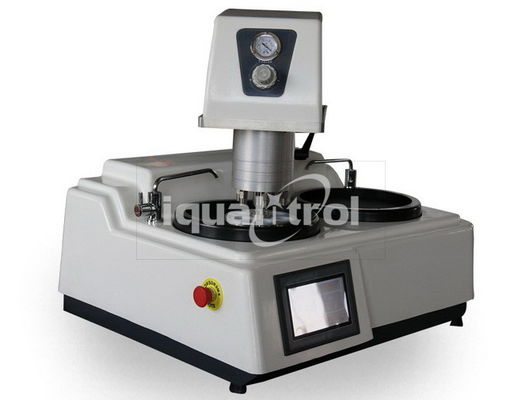

Large Image :  Automatic Metallographic Sample Grinding And Polishing Machine LMP-3S

Product Details:

Place of Origin: DongGuan/China
Brand Name: iqualitrol
Certification: CE
Model Number: LMP-3S

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: T/T
Supply Ability: 10 Sets per Month
Contact Now
Detailed Product Description
Model: LMP-3S Disc Dia.: 250mm (Optional 200mm, 300mm)
Speed: 50-1000rpm Sample: Quantity 6 (Diameter 30mm)
Loading: Force 5-60N Power: AC220V/50Hz/1Ph, 870W
High Light:

Metallographic Sample Grinding And Polishing Machine



Touch Controller Double Disc Automatic Metallographic Sample Grinding and Polishing Machine



Data Sheet: iqualitrol Grinding and Polishing Machine LMP-3S

Model: LMP-3S

Product introduction:

iqualitrol LMP-3S automatic metallographic sample grinding and polishing machine is a double-disk desktop machine, it realizes the whole process of rough grinding, fine grinding and fine polishing of metallographic samples.



iqualitrol LMP-3S is an ideal equipment for enterprises and scientific research institutes.



Technical Parameter:

Diameter of grinding disc 250mm (can be customized to 203mm, 300mm)
Speed of grinding disc 50-1000 r/min (for 203, 250 mm grinding disc, stepless speed control) 150 r/min, 300 r/min (two-stage constant speed)
Grinding head speed 5-150 r/min (stepless speed control)
Sample Qty 6pcs
Loading Range 5-60 Newton (N) This machine is manually pressurized
Time Set Range 0-9999 seconds (S)
Sample diameter 30mm (customizable φ22mm and φ45mm)
Power Supply AC220V/50Hz/1Ph
Power Consumption 870W
Net Weight 100Kg





Automatic Metallographic Sample Grinding And Polishing Machine LMP-3S 0



Automatic Metallographic Sample Grinding And Polishing Machine LMP-3S 1
