|Control System:||Hot Air Circulation Control||Temp Range:||RT+20℃~300℃|
|Heating Speed:||RT~100℃ Within 10min||Exterior:||Cold Rolled Steel With Surface Treatment|
|Interior:||SUS304# Mirror Stainless Steel||Function:||Over-heat Protection, Auto Power Off|

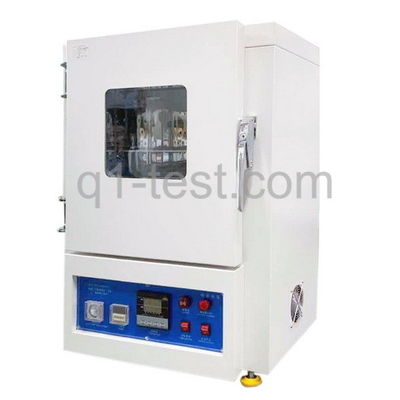

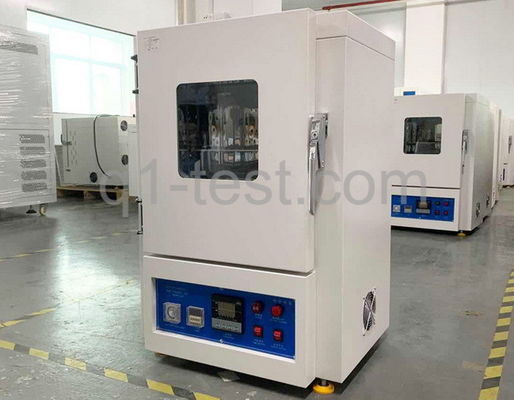

High Temperature Industrial Oven With Hot Air Heat Treatment Drying Oven SUS304 Steel
Data Sheet: iqualitrol Drying Oven
Precise High Temperature Heat Accelerated Aging Test Oven is widely applied to electronic and electric products, components and materials by constant high low temperature, temperature shock and rapid temperature change reliability test .
iqualitrol oven can provide a stable test space for preheating,drying, changes about physics and chemistry testing. It supplies precision temperature controller with high stability of platinum resistance to temperature that makes temperature well-distribution.
Bench-top forced air oven is designed to meet both manufacturing and laboratory requirements. Our standard ovens are in stock and ready to ship.
※ Oven exterior material is high quality Cold Rolled Steel with surface treatment, nice appearance and durable.
※ Unique combination of bottom scattered wind and heater, centrifugal turbine cycle effectively extend using life of fan.
※ Temperature uniformly distributed in the interior chamber, loop fan is automatically closed after temperature reaches setup.
※ With over-heat protection switch and power off memory function.
※ The Ovens are widely used in kinds of composite materials, like electric parts, rubber, plastics, aerospace and automotive industries, etc.
※ Custom made maximum temperature range from room temperature to 500℃.
|Power||AC380V, 50/60HZ, Three-phase (Specified by User)|
|Control System||Hot air circulation control mode|
|Ambient temp. & humid. Range||+5℃ ~ +35℃ / <85%RH|
|Temp. range||RT+20℃~300℃(The maximum operating temperature recommend ≤260℃)|
|Heating up time||RT~100℃within 10 min|
|Interior material||SUS304# mirror stainless steel|
|Exterior material||high quality Cold Rolled Steel with surface treatment|
|Safety devices||Overheat protector, Magnetic switch, Porcelain fuse, Alarm system|
|Accessories||Adjustable Shelf 2pcs, Overheating protective device|
1, At 20℃ ambient temperature or 25℃ water temperature and non-loaded.
2, The above specifications are for reference only, the actual specifications for the main quotation.
3, Interior dimension is available for custom made.
