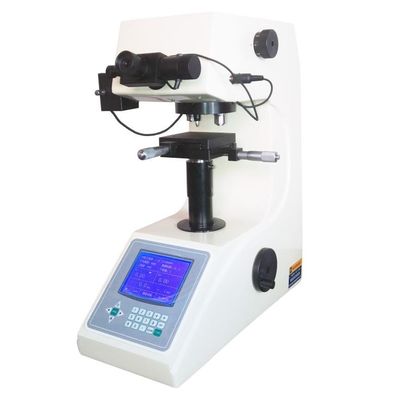

Large Screen Auto Turret Micro Vickers Hardness Testing Machine with turbo worm lifting system

Large Screen Auto Turret Micro Vickers Hardness Testing Machine with turbo worm lifting system
Large Screen Auto Turret Micro Vickers Hardness Testing Machine with turbo worm lifting system

Large Image :  Large Screen Auto Turret Micro Vickers Hardness Testing Machine with turbo worm lifting system

Product Details:
Brand Name: iqualitrol
Model Number: HV-1000AHY
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T
Supply Ability: 20 Sets per Month
Detailed Product Description
Data Entry: Manually Input Data Turret: Automatic
Printing: Wireless Blue-tooth Printer Lifting: Turbo-worm Lifting System
Magnification: Total 100×, 400× XY Table: Size: 100*100mm


Large Screen Auto Turret Micro Vickers Hardness Testing Machine with turbo worm lifting system


Model: HV-1000AHY


Technical Data Download:
iqualitrol Auto Turret Micro Vickers Hardness Tester HV-1000AHY



Technical Specifications:

Model HV-1000AHY

Range of

Measurement

5-5000HV
Test Force 0.09807, 0.2452, 0.4904, 0.9807,
1.961, 2.942, 4.904, 9.807N
(10, 25, 50, 100, 200, 300, 500, 1000gf)
Data Entry Mode Manual
Turret Mode Automatic
Maximum Height
of Specimen
120mm
Depth Throat 110mm, Distance between Indenter Center and Wall
XY anvil size 100*100mm
XY anvil travel 25*25mm
travel Resolution 0.01mm
Objective 10×, 40×
Total Magnifications 100×, 400×
Resolution 0.025μm
Hardness Resolution 0.1HV
Power Supply AC 220V, 50Hz, 1ph
Outline Dimension 530*290*490mm
Weight 45kg


Product Features:
● iqualitrol HVS-1000AHY Digital auto turret micro vickers hardness tester, the test results are displayed on the LCD screen, the test scale, test force, indenter type, dwell time and the conversion unit can be displayed and set;


● The machine body is integral casting by high quality cast iron, with the automotive paint treatment process, the appearance is round and beautiful;


● The turbo-worm lifting system can greatly improve the test stability and accuracy, and there is no need to focus again after the test is completed;


● Equipped with automatic turret function, greatly reduce the manual interference and reading error;
● Convenient control system can automatically convert the unit of full hardness scale;


● CCD image processing system can be optional, the knoop indenter can be selected to measure the knoop hardness;

● Equipped with wireless blue-tooth printer, the data can be output through RS232 and USB interface port;
● Accuracy is in line with GB/T4340.2 ISO6507-2 and us ASTM E384.

Accessories Box:

XY Worktable One PC
Thin Shaft Test table One PC
Thin Sheet Test table One PC
Small Flat Forceps Test table One PC
Large V Block One PC
Small V Block One PC
Diamond Quadrilateral Cone Head One PC
Standard Vickers Hardness Block Two Blocks
