Manual Turret Touch Screen Analogue Measuring Eyepiece Vickers Hardness Tester

China Manual Turret Touch Screen Analogue Measuring Eyepiece Vickers Hardness Tester supplier
Manual Turret Touch Screen Analogue Measuring Eyepiece Vickers Hardness Tester supplier

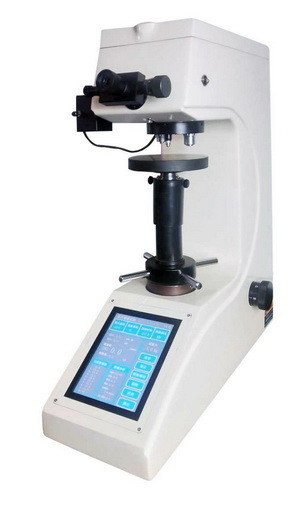

Large Image :  Manual Turret Touch Screen Analogue Measuring Eyepiece Vickers Hardness Tester

Product Details:

Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE, ISO
Model Number: HV-5THY

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiate in detail
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T
Supply Ability: 100 Sets per Month
Contact Now
Detailed Product Description
HV-5THY: Max Loading Force 5Kgf, Manual Turret HV-10THY: Max Loading Force 10Kgf, Manual Turret
HV-30THY: Max Loading Force 30Kgf, Manual Turret HV-50THY: Max Loading Force 50Kgf, Manual Turret
Data: Wireless Bluetooth Printer, RS232 And USB Interfaces Vision: Support CCD Image Processing System With Vickers Software


Manual Turret Touch Screen Analogue Measuring Eyepiece Vickers Hardness Tester

Model: HV-5/10/30/50THY

Product description:

● iqualitrol HV-5/10/30/50THY touch screen Vickers hardness tester, using 8-inch touch screen and high-speed ARM processor, intuitive display, friendly human-computer interaction, easy operation; fast calculation speed, huge database storage, automatic data correction, And provide data line report;

● The fuselage is made of high-quality cast iron for one-time casting, combined with the car paint treatment process, the shape is round and beautiful;
● Convenient operating system, which can automatically convert the unit of the full hardness scale;

● The maximum and minimum values of the hardness value can be set, and when the test value exceeds the set range, an alarm will sound;
● With software hardness value correction function, the hardness value can be directly corrected within a certain range;

● With database function, the test data can be automatically grouped and saved, each group can save 10 data, and can save more than 2000 data;
● It has the function of hardness value curve display, which can directly display the change of hardness value;
● Optional CCD image processing system, and optional Knoop indenter for Knoop hardness measurement;

● Configure a wireless bluetooth printer, and output data through RS232 and USB interfaces;
● The accuracy complies with GB/T4340.2-2018 ISO6507-2 and American ASTM E384.


Main Parameters:



ModelHV-5/10/30/50THY
Range of Measurement5-5000HV
Test ForceLoading ModeWeight Loading
HV-5THY

0.3,0.5,1.0,

2.0,3.0,5.0kgf

HV-10THY

0.3,0.5,1.0,

3.0,5.0,10kgf;

HV-30THY

0.3,0.5,1.0,

5.0,10.0,30.0kgf

HV-50THY

1.0,5.0,10.0,

20.0,30.0,50.0kgf.

Data Entry ModeManual
Turret ModeManual
Maximum Height of Specimen200mm
Distance between Indenter Center and Wall130mm
ObjectiveHV-5,10,30THY serial



10×,40×



HV-50THY10×,20×
Magnifications100×,400×100×,200×
Eyepiece Measure Resolution0.025μm0.1μm
Hardness Resolution0.1HV
Power SupplyAC 220V,50Hz
Outline Dimension620*330*650mm
Weight75kg



Accessories Box:



Micrometer EyepieceOne PCThe Small AnvilOne PC
The Big AnvilOne PCDiamond Vickers IndenterOne PC
V-type AnvilOne PCStandard Vickers Hardness BlockTwo Blocks
