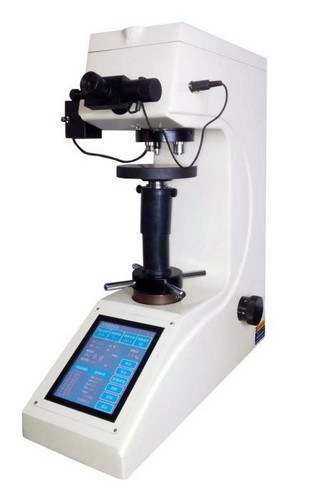

Touch Screen Manual Turret Digital Vickers Hardness Tester with Weight Loading

Touch Screen Manual Turret Digital Vickers Hardness Tester with Weight Loading
Touch Screen Manual Turret Digital Vickers Hardness Tester with Weight Loading

Large Image :  Touch Screen Manual Turret Digital Vickers Hardness Tester with Weight Loading

Product Details:
Brand Name: iqualitrol
Model Number: HVS-5THY
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: T/T
Supply Ability: 10 Sets per Month
Detailed Product Description
HVS-5THY: Loading Force 5Kgf, Touch Screen Manual Turret HVS-10THY: Loading Force 10Kgf, Touch Screen Manual Turret
HVS-30THY: Loading Force 30Kgf, Touch Screen Manual Turret HVS-50THY: Loading Force 50Kgf, Touch Screen Manual Turret
Accuracy: Complies With GB/T4340.2-2018 ISO6507-2 And American ASTM E384 Data Process: Wireless Bluetooth Printer, And Output Data Through RS232 And USB Interfaces



Touch Screen Manual Turret Digital Vickers Hardness Tester with Weight Loading


Model: HVS-5THY



Technical Data Download: iqualitrol Vickers Hardness Tester HVS-5THY

product description

● iqualitrol HVS-5/10/30/50THY touch screen digital display Vickers hardness tester, using 8-inch touch screen and high-speed ARM processor, intuitive display, friendly human-computer interaction, easy operation; fast calculation speed, huge database storage, automatic data Amendment and provide data line report;

● The fuselage is made of high-quality cast iron for one-time casting, combined with the car paint treatment process, the shape is round and beautiful;

● The high-resolution measurement and observation objective lens, combined with the high-definition digital micrometer eyepiece with built-in length encoder, realizes one-key measurement of the indentation diagonal, eliminating human interference and reading errors;

● Convenient operating system, which can automatically convert the unit of the full hardness scale;
● The maximum and minimum values of the hardness value can be set, and when the test value exceeds the set range, an alarm will sound;

● With software hardness value correction function, the hardness value can be directly corrected within a certain range;
● With database function, the test data can be automatically grouped and saved, each group can save 10 data, and can save more than 2000 data;

● It has the function of hardness value curve display, which can directly display the change of hardness value;
● Optional CCD image processing system, and optional Knoop indenter for Knoop hardness measurement;

● Configure a wireless bluetooth printer, and output data through RS232 and USB interfaces;
● The accuracy complies with GB/T4340.2-2018 ISO6507-2 and American ASTM E384.



Main Parameters:

Model HVS-5/10/30/50THY
Range of Measurement 5-5000HV
Test Force Loading Mode Weight Loading
HVS-5THY

0.3,0.5,1.0,

2.0,3.0,5.0kgf

HVS-10THY

0.3,0.5,1.0,

3.0,5.0,10kgf;

HVS-30THY

0.3,0.5,1.0,

5.0,10.0,30.0kgf

HVS-50THY

1.0,5.0,10.0,

20.0,30.0,50.0kgf.

Data Entry Mode AUTOMATIC
Turret Mode MANUAL TURRET
Maximum Height of Specimen 200mm
Distance between Indenter Center and Wall 130mm
Objective HVS-5/10/30THY serial



10×,40×



HVS-50THY 10×,20×
Magnifications 100×,400× 100×,200×
Eyepiece Measure Resolution 0.025μm 0.1μm
Hardness Resolution 0.1HV
Power Supply AC 220V,50Hz
Outline Dimension 620*330*650mm
Weight 75kg



Accessories Box:

Micrometer Eyepiece One PC The Small Anvil One PC
The Big Anvil One PC Diamond Vickers Indenter One PC
V-type Anvil One PC Standard Vickers Hardness Block Two Blocks
