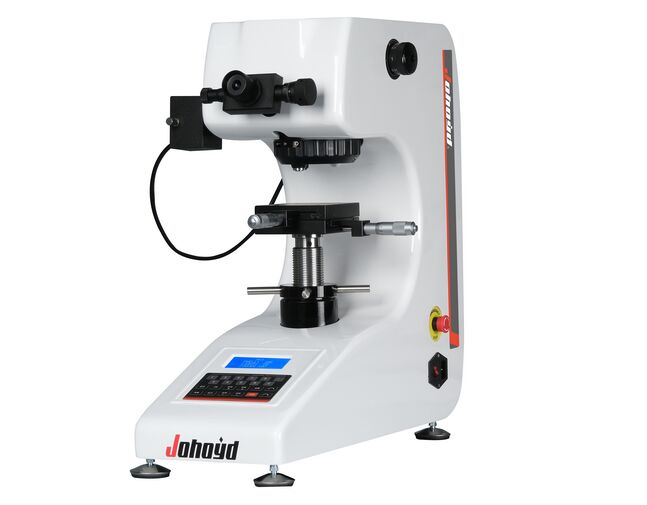

Basic Economical Micro Hardness Tester With Manual Turret And Analogue Eyepiece

Basic Economical Micro Hardness Tester With Manual Turret And Analogue Eyepiece
Basic Economical Micro Hardness Tester With Manual Turret And Analogue Eyepiece

Large Image :  Basic Economical Micro Hardness Tester With Manual Turret And Analogue Eyepiece

Product Details:
Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE, ISO
Model Number: HV-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiate in details
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T
Supply Ability: 100 Sets per Month
Detailed Product Description
Turret: Manual Turret Eyepiece: Analogue Eyepiece 10x
Test Space: Vertical 110* Throat 85mm XY Test Platform: Size (mm): 100x100mm
Objective: 10X, 40X Loading Control: Automatic (load/dwell/unload)
High Light:

100x100mm Micro Hardness Tester


Analogue Eyepiece Micro Hardness Tester


Micro Vickers Hardness Tester 40X


Basic Economical Micro hardness tester with Manual Turret and Analogue Eyepiece


Model: HV-1000


Technical Data Download: iqualitrol Micro Vickers Hardness Tester HV-1000


Product description:

Iqualitrol HV-1000 micro hardness tester meets the basic Vickers hardness test requirements. The upgraded control system can provide more measurement data and the control is completed and accurate.


Technical Parameters:

Model HV-1000, manual turret
Micro hardness scale HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1
Display Dwell time (seconds), hardness value
Test force 10, 25, 50, 100, 200, 300, 500, 1000gf
Loading control Automatic (load/dwell/unload)
Dwell time 5 to 60 seconds
Test force selection External selector knob, test force is automatically displayed on the LCD screen
Objectives 10X, 40X
Optical channel Dual light channels (eyepieces and CCD camera channels)
Optical system 1.Automatic digital encoder;
2.The total magnification (μm): 100 × (observation), 400 × (measurement);
3.Measuring range (μm): 200;
4.Resolution (μm): 0.01
Hardness measurement range (5-3000) HV
XY test platform Size (mm): 100×100
Travel range (mm): 25×25
Minimum reading (mm): 0.01
Maximum height of specimen 110mm
Throat depth 85mm (distance from the center line of the indenter to the wall)
Voltage AC220V/50HZ
Weight 35Kg
Dimension 540×200×530mm


Main functions and features:

1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope. The brightness is adjustable, and it is visually comfortable. Long-time operation is not easy to fatigue.

2. The industrial display screen can directly display the hardness value, the conversion hardness, the test method, the test force, the retention time, the number of measurements, and the test process is intuitive and clear;

3. Cast aluminum shell molding, structural stability is not deformed, pure white car paint high grade, anti-scratch ability, use for many years is still bright as new;

The main purpose and scope of application:

1. Iron and steel, non-ferrous metals, metal foils, hard alloys, metal sheets, microstructures
2. Carburizing, Nitriding and Decarburization Layers, Surface Hardening Layers, Plating, Coatings
3. Glass, wafers, ceramics


Standard configuration:

1.Host (Micro Vickers indenter x1, 10x objective x1, 40x objective x1) 2.Test platform, weight, microscope accessory box;
3.Weights x6 4.Weight bar x1
5.Cross table x1 6.Sheet clamping table x1
7.Flat mouth clamping table x1 8.Filament holding table x1
9.Level meter x1 10.Screwdriver x2
11.Horizontal adjustment screws x4 12.External power cord x1
13.10× Digital Micrometer Eyepieces x1 14.Micro Vickers hardness block x2 (HV1, HV0.2 x1 for each )
15.Fuses (1 A) x2 16.Product certification x1
17.Product Instruction Manual x1 18.Dust cover x1


1. The optional side-sway lifting system makes the lifting system more stable and accurate.
2. Optional hardness meter measurement software, eliminate human error, computer operation, improve efficiency, accuracy is more accurate.
