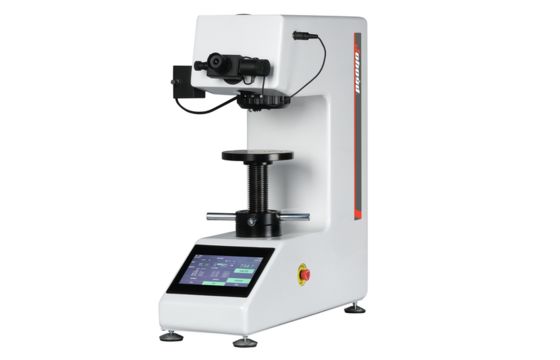

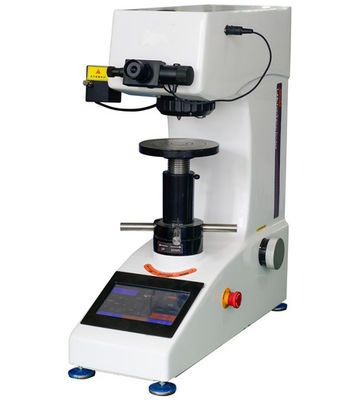

Automatic Turret Type Vickers Hardness Tester Touch Screen Digital Eyepiece

Automatic Turret Type Vickers Hardness Tester Touch Screen Digital Eyepiece
Automatic Turret Type Vickers Hardness Tester Touch Screen Digital Eyepiece

Large Image :  Automatic Turret Type Vickers Hardness Tester Touch Screen Digital Eyepiece

Product Details:
Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE, ISO
Model Number: HVST-5Z
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiate in details
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 100 Sets per Month
Detailed Product Description
HVST-5Z: Test Force 5Kgf, Touch Screen, Auto Turret, Digital Micrometer Eyepiece HVST-10Z: Test Force 10Kgf, Touch Screen, Auto Turret, Digital Micrometer Eyepiece
HVST-30Z: Test Force 30Kgf, Touch Screen, Auto Turret, Digital Micrometer Eyepiece HVST-50Z: Test Force 50Kgf, Touch Screen, Auto Turret, Digital Micrometer Eyepiece
Data Saving: Store Up To 100 Sets Of Test Data Touch Screen: Display Test Method, Test Force, Upper And Lower Limit Of Hardness Value
High Light:

AC220V Vickers Hardness Tester


Automatic Turret Vickers Hardness Tester


Digital Eyepiece Vickers Hardness Testing Machine


Touch Screen Digital Eyepiece Automatic turret type Vickers Hardness Tester


Model: HVST-5Z


Technical Data Download: iqualitrol Touch Screen Vickers Hardness Tester HVST-5Z


Product description:

The iqualitrol HVST series digital turret-type Vickers hardness tester meets the basic Vickers hardness test requirements. The upgraded digital micrometer eyepiece can directly read the measurement length, so that the measurement value can be obtained more quickly and accurately.


Auto turret can automatically switch the eyepiece and indenter to avoid artificial errors and damage the instrument, and also greatly improve the efficiency.


Technical Parameters:

Model HVST-5Z/10Z/30Z/50Z
display 7” Touch screen
Loading control Automatic (load/hold/uninstall)
Dwell time 1~99 seconds
Optical channel Dual light channels (eyepieces and CCD camera channels)
Optical system

Objectives: 10×, 20×(Optional 20X 40X)

Eyepiece Magnification: 10×

Total magnification (μm): 100×, 200×

Measuring range (μm): 400

Resolution (μm): 0.125

Hardness measurement range (5-3000)HV
XY test stand (optional)

Size (mm): 100×100

Travel range (mm): 25×25

Minimum reading (mm): 0.01

Maximum height of specimen 165mm
Throat depth 130mm (distance from the center line of the indenter to the wall)
Data output Reserve built-in mini printer interface, (RS232 serial interface) optional installation
voltage AC220V/50HZ
Overall size 585×200×630mm
Weight 42kg


Main functions and features:

1. The optical system not only has clear images, but also can be used as a simple microscope with adjustable brightness and comfortable vision.


2. 7-inch touch screen can display test method, test force, upper and lower limit of hardness value, measure indentation length, hardness value, test force retention time, number of measurements and type in year, month and date, test result and data processing;


3, can store up to 100 sets of test data, in the main interface to display the average and the number of test data;

4, the test force unit can manually choose to convert, the conversion unit is: (Kgf, N)


5. The main interface can display 4 conversion scales at the same time, and can be switched: American Standard and International Standards. A total of 18 measurement scales can be converted: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HV, HK, HBW;


6, can set the upper and lower limit measurement range, displayed in the main measurement interface;

7, test data can be directly exported via USB;


8. The measuring scale can be converted into HK Knoop hardness;

9, cast aluminum shell molding structure stability is not deformed, pure white car paint high grade, anti-scratch ability, use for many years is still bright as new;


Main application scope:

1. Iron and steel, non-ferrous metals, metal foils, hard alloys, metal sheets, microstructures, carbonization;

2. Carburizing, nitriding and decarburization layers, surface hardened layer, plating layer, coating, heat treatment;

3, glass, wafers, ceramic materials;


Standard configuration:

Host computer 1
weight 3
Large and medium "V" test benches 1
Horizontal adjustment screw 4
Power cable 1
10X digital microscope eyepiece 1
Vickers hardness block 2
Spare fuse 2A 2
Product Certificate 1
Instruction Manual 1


Remarks: Optional hardness meter measurement software, eliminate human error, computer operation, improve efficiency, accuracy is more accurate. Optional internal printer, one-click printing of measurement data.
