Product Details:
Payment & Shipping Terms:
|
| Mounting Quantity: | Inlay 2 Samples Simultaneously | Load Mode: | Hydraulic Pressurization |
|---|---|---|---|
| Temperature: | Set Range 0-200℃ | Mosaic Time: | Within 4 Minutes |
| Materials: | Thermoplasticity And Thermoset | Power Supply: | AC220V/50hz, 4.5KW |
| Highlight: | AC220V Metallographic Mounting Press,Water Cooling Mounting Press Machine,Double Station Metallographic Mounting Press |
||

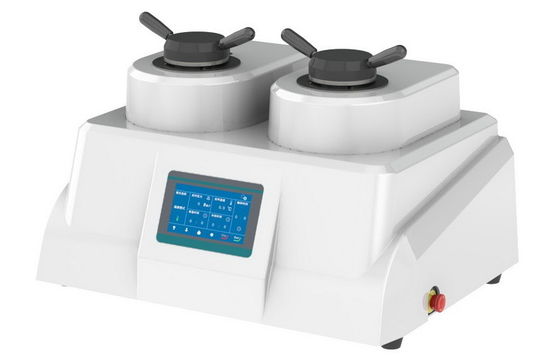

Double Station Automatic metallographic sample inlaying mounting press machine water cooling
Technical Data Download: iqualitrol Mounting Press HYXQZ-2
Brief Introduction:
Metallographic specimen inlay is a very important step in the process of metallographic specimen preparation. It is especially suitable for some tiny samples which are difficult to handle or have irregular shape, easy to hand or follow-up automatic grinding and polishing (can be used with the company's automatic grinding and polishing machine, the effect is better).
Iqualitrol HYXQZ-2 is especially suitable for specimens with edge protection or with automatic grinding and polishing. The inlaying of specimens is an essential working procedure.
Iqualitrol HYXQZ-2 is suitable for metallographic laboratories in factories, colleges and universities and scientific research institutions, it is the best choice for metallographic sample inlay.
Technical Specifications:
| Model | HYXQZ-2 |
| Die Specification |
double-station, Standard φ30 (option 22mm, 45mm) |
|
Effective depth of die |
70mm |
| Heating Power | 4KW |
| loading mode | Hydraulic pressurization |
| System pressure | 0-300Bar |
| hydraulic pressure | 0-60Bar |
|
Temperature setting range |
0-200℃ |
| Pressure setting range | 0-99Minutes |
| Cooling setting range | 0-99Minutes |
| Mosaic time | 5 minutes (heating to 155 degrees, cooling to 40 degrees, black inlay, inlay thickness within 20 mm) |
| Mosaic material | Thermoplasticity and thermoset |
| Power supply | Voltage:220V Voltage:50HZ |
| Total power | 4.5KW |
| Dimension | 760X580X550mm |
| Weight | 95KG |
