Product Details:
Payment & Shipping Terms:
|
| Model: | VAC-2 | Vacuum Level: | 0 ~ -80kPa, Vacuum Pump 0 ~ -90kpa |
|---|---|---|---|
| Program Control: | Can Set The Vacuum Degree, The Number Of Cycles And The Corresponding Time | Rotary Table: | Electric Rotary Table For Easy And Fast Mounting |
| Air Source: | External Connecting The Compressed Air Source, Easy To Operate | Sample Quantity: | Extra Large Vacuum Chamber For Up To 12 Samples (40mm Diameter) |
| Highlight: | Program Controlled Vacuum Mounting Press,Compact Program Controlled Vacuum Mounting Press,Electric Rotary Table Vacuum Mounting Press |
||
Electric rotary table iqualitrol VAC-2 compact program controlled vacuum mounting press
Technical Data Download: iqualitrol vacuum mounting machine VAC-2
Brief Introduction:

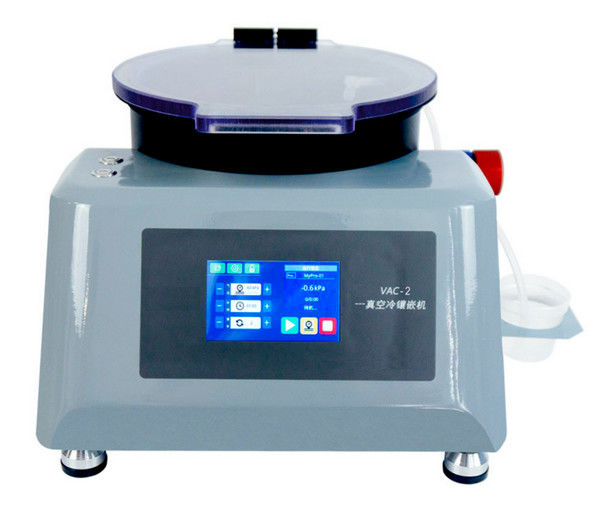

iqualitrol VAC-2 is a light and compact program-controlled vacuum mounting machine.
External compressed air can be quickly and effectively vacuumed, and it can also be connected to a vacuum pump for vacuum cold mounting of epoxy resin.
With excellent pore impregnation function, it allows epoxy resin to penetrate into tiny pores and cracks quickly and efficiently, thus ensuring edge protection and full filling of the sample.
VAC-2 is ideal for porous materials, such as failure analysis specimens for cracks, porous castings, composites and preparation of samples for electronic components, rock minerals, ceramics, etc.
Technical Specifications:
| Model | VAC-2 | |
| Electrical | Power Supply | AC100-240V, 50Hz, 35W (Vacuum pump not included) |
| Control Panel | 5” touch screen | |
| Timing Cycle | Range 0-10min, automatic vacuumize/ deflation, cycle repeated |
|
| Maximum number of cycles | 100 | |
| Program | 20 groups | |
| Vacuum | Vacuum Level | 0 ~ -80kPa, vacuum pump 0 ~ -90kpa |
| Maximum Vacuum Flow | 75L/min | |
| Air Consumption | 28-42L/min | |
| Noise | 55-60dBA | |

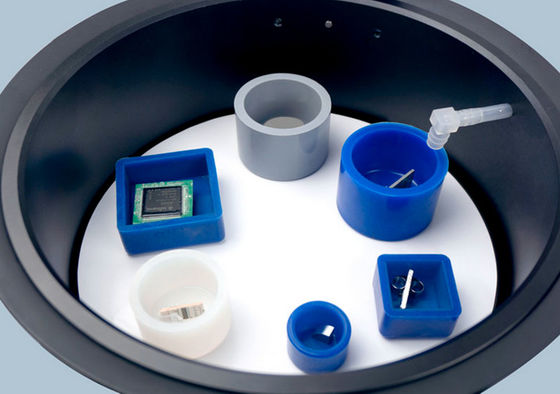

| Chamber | Diameter | Inner diameter Φ252, Place 12 Φ40 samples Simultaneously |
| Height | For molds with a diameter of less than 100mm, the Max. of height is 100mm; For molds with a diameter of more than 100mm, the Max. of height is 80mm. |
|
| Tray Rotation | Electric button, direction: clockwise/counterclockwise | |
| Operating Environment |
Temperature | 0-60˚C |
| Humidity | 0-95%RH | |

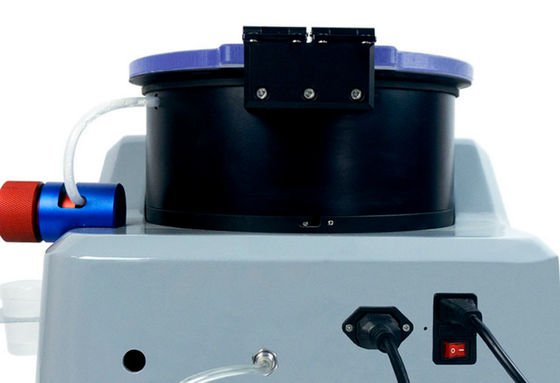

| Supply Air | Pressure | OD=Φ6mm pipe, Pressure requirement 0.6~0.7MPa |
| Vacuum Pump (Optional) | Voltage | Same with the power input |
| Power | Max:1000W | |
| Cable Connector | National standard three-core type male plug | |
| Dimension | W*D*H | 497×461×293mm (Close), 497×461×655mm(Open) |
| Weight | 18kg | |
