Product Details:
Payment & Shipping Terms:
|
| Model: | L1501 | Eyepiece: | Field Of View Is Widely And Clear |
|---|---|---|---|
| Focus: | Coaxial Coarse/fine Focus System | Light Source: | 6Volt 20Watt Halogen Lamp With Brightness Control |
| Stage: | Double Layer Mechanical (Size:135mmX125mm) | Filter: | Blue Filter, Frosted Filter |
| High Light: | Coaxial Coarse Reflected Fluorescence Microscope,Halogen Lamp Fluorescence Microscope,Brightness Control Digital Metallurgical Microscope |
||

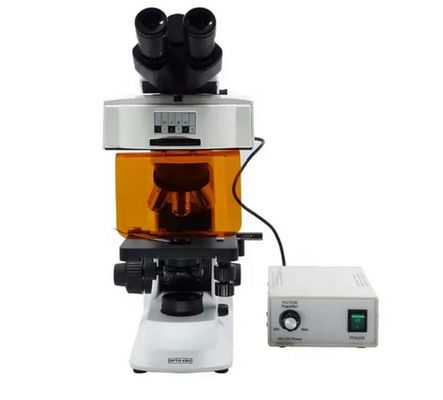

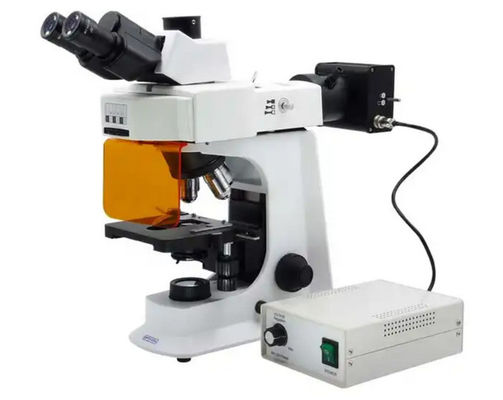

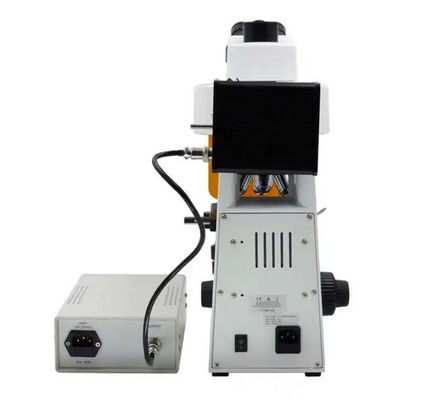

L1501 Reflected fluorescence microscope with Halogen lamp with brightness control
Brief introduction:
L1501 iqualitrol Reflected fluorescence microscope model is used for fluorescence microscopy and transmitted bright field microscopy observation.
Iqualitrol L1501 is the ideal instrument in sediment in sedimentary rock, inspection of impurity of semiconductor, environmental protection and microchemistry etc.
Iqualitrol L1501 is an ideal instrument in biology, cytology, oncology, genetics, immunology etc. It also can be used in scientific research, universities, medical treatment, epidemic prevention etc.
Features:
1, With wide field eyepieces and achromatic objectives, the field of view is widely and clear;
2, Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm;
3, 6Volt 20Watt Halogen lamp with brightness control;
Standard Configuration:
| Model | L1501 |
| Eyepiece | Wide field WF10X(¦µ18mm) |
| Objective | Achromatic 4X/0.10 |
| Achromatic 10X/0.25 | |
| Achromatic 100X/1.25(Spring, oil) | |
| Fluorescence 25X/0.65 | |
| Eyepiece tube | Trinocular (inclination of 30˚) |
| Focus system | Coaxial coarse/fine focus, with tension adjustable and up stop, minimum division of fine focusing: 2μm. |
| Nosepiece | Quadruple(Backward ball bearing inner locating) |
| Stage | Double layer mechanical (Size:135mmX125mm, Move range: 75mmX35mm) |
| Abbe condenser | N.A.1.25 Rack & pinion adjustable |
| Filter | Blue filter |
| Frosted filter | |
| Collector | For halogen lamp |
| Light source | 6V 20W Halogen lamp with brightness control. |
|
Reflected fluorescence system |
Mercury lamp house 100W/DC |
| Power supply unit:AV:110V or 220V | |
| Fluorescence filter system B exciton wavelength:450~490nm | |
|
Fluorescence filter system G exciton wavelength:495~555nm |
