| Model: | 934-1S | Hardness: | Reading By Digital Display |
|---|---|---|---|
| Application: | Aluminum And Aluminum Alloy Material | Range: | 0～100HBa |
| Resolution: | 0.1HBa | Error: | 42～52 HBa ±2.0 HBa |
| Highlight: | 0.1HBa Hardness Test Machine,Barcol Durometer Hardness Test Machine,100HBa Portable Hardness Tester |
||

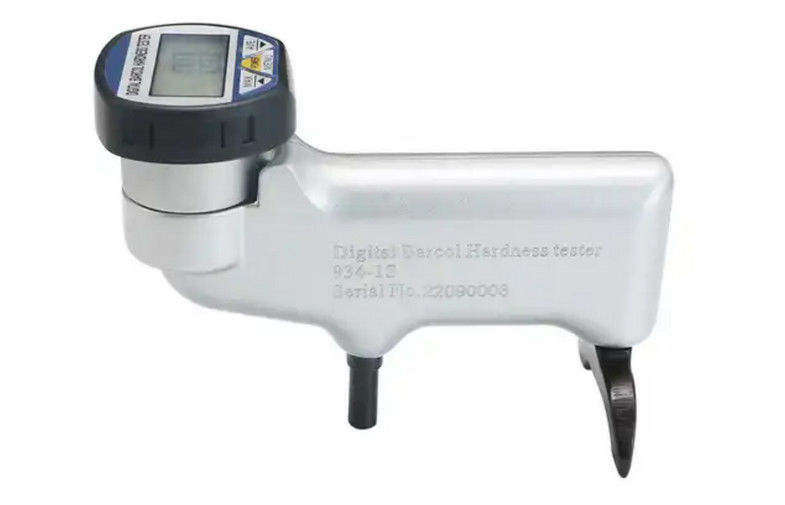

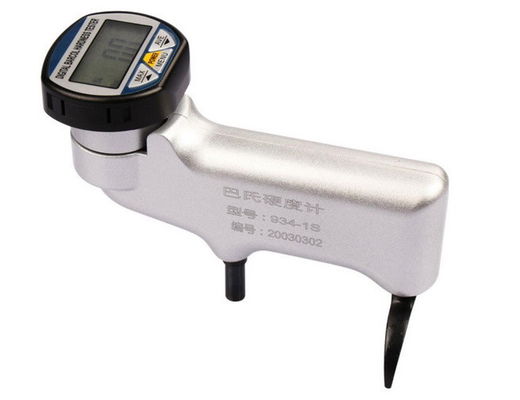

Aluminum Alloys Digital Display Barcol Durometer Hardness Test Machine 934-1S
Model: 934-1S
The iqualitrol Barcol hardness tester 934-1S is an indentation type hardness tester. It is fast, simple, and easy to test.
It can be used to quickly test the hardness of aluminum and aluminum alloy materials and meet the American standard ASTM B648, ASTM HD2583-07, and GB/T 3854-2005 Test Method for Barcol Hardness of Reinforced Plastics.
Technical Specifications:
| Range | 0～100HBa |
| Effective measurement range | equivalent to 25～135HBW |
| Resolution | 0.1HBa |
| Indication error |
42～52 HBa ±2.0 HBa 84～88 HBa ±1.0 HBa |
| Repeatability error |
42-52 HBa ±2.5 HBa 84～88 HBa ±1.5 HBa |
Standard configuration:
|
Main part |
1 | Calibration block | 2 |
| Full-scale correction block | 1 | Spare needle | 1 |
| Calibration wrench | 1 | Charger | 1 |
Advantages of 934-1S:
1, With bracket rotation positioning device;
2, Machine automatically converts hardness HW, HRE, HRF, HV, HB;
3, Hardness value digital display device, free disassembly hardness value calibration and adjustment device;
4, Small size, light weight (480g), easy to carry;
5, Good stability, easy calibration, high detection accuracy;
6, One-handed operation, no need to use experience, in any case, can be tested as long as it can be reached;
7, Wide test range. From very soft pure aluminum to particularly hard aluminum alloys, the effective test range is equivalent to Brinell hardness 25～135HB;
8, High sensitivity. The Webster hardness tester has only 20 scales, while the Barcol hardness tester has a test range of 0-100 and has a higher sensitivity;
9, No need to support, suitable for testing large and thick workpieces and fittings.
Portable: The iqualitrol 934-1S Impressor is a convenient tool for testing the hardness of aluminum,aluminum alloys,copper,brass and other materials including plastics and fiberglass.The instrument is designed for use on fabricated parts and assemblie as well as on raw stock.
Easy to Use: No experience required;can be used in any position and in any space that will allow for the operator’ hand.The hardness reading is instantly indicated on the dial,which is divided into one hundred graduations.No waiting pre-loading or separate measurements.
Lightweight: The impressor weighs only 0.55 kg and comes complete with carrying case,adjusting wrench and two spare indenter points 2kg.
