Programmable constant temperature humidity environmental Climate test equipment

Programmable constant temperature humidity environmental Climate test equipment
Programmable constant temperature humidity environmental Climate test equipment

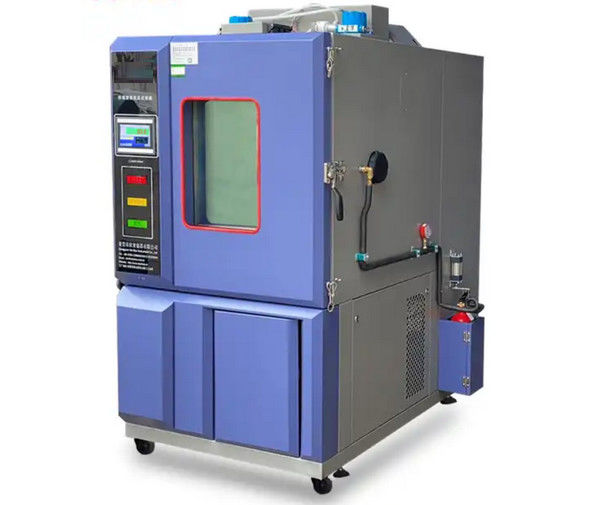

Large Image :  Programmable constant temperature humidity environmental Climate test equipment

Product Details:
Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE, ISO
Model Number: iXB-OTS-150
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiate in details
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 10 Sets per Month
Detailed Product Description
Model: IXB-OTS-150 Temp Range: -70℃ ~180℃
Humidity: 10% ~98%RH Heating Rate: ≤5℃/min For Heating; ≤ 1.2℃/min For Cooling
Chamber Materials: SUS#304 Stainless Steel For Inner Chamber With Thickness 1.5mm Insulation Materials: Rigid Polyurethane Foam + Ultrafine Glass Fiber With Thickness Of 100mm


Programmable constant temperature humidity environmental Climate test equipment


Overview:
Temperature humidity test chamber is use to test material heat, cold, dry resistance, humidity resistance.

Suitable for electronics, electrical appliances, communications, instrumentation, vehicles, plastic products, metal, food, chemical, building materials, medical, aerospace and other products.

Model Selection:

Model iXB-OTS-150 iXB-OTS-225 iXB-OTS-408 iXB-OTS-800 iXB-OTS-1000
Inner size
WHD (cm)
50*60*50 60*75*50 80*85*60 100*100*80 100*100*100
External size
WHD (cm)
70*162.5*153 80*177.5*153 100*192.5*163 120*209*183 120*209*203
Window Size
WH (mm)
500*600 600*750 800*850 100*100 100*100
Test Hole Size
Diameter(mm)
2 holes
50mm of each
2 holes
100mm of each
2 holes
100mm of each
2 holes
100mm of each
2 holes
100mm of each
Weight 320KG 370KG 460KG 560KG 590KG


Technical Specifications:

Voltage 1Ø 220V 50Hz/ 3Ø 380V 60Hz/Customized
Temperature range -70℃ ~180℃
Humidity range 10% ~98%RH
(5%~98% R.H. customized)
Temp.& humidity control fluctuation ≤±0.5℃, ≤ ±2.5%RH
Indication resolution 0.01℃, 0.1 %RH
Temp.&humidity Uniformity ≤±1.5℃,≤±2.5% RH
Heating &Cooling time ≤5℃/min for heating; ≤ 1.2℃/min for cooling
Cooling type Air cold
Chamber materials SUS#304 stainless steel for Inner chamber with thickness 1.5mm
Steel plate for external chamber with thickness 1.5mm
Insulation materials Rigid polyurethane foam + ultrafine glass fiber with thickness of 100mm


Mechanical Room

Refrigerating unit, water supply and drainage device, blower fan, power distributing Cabinet;
Humidifying and humidity measuring water utilization control device



Electronic Box

Heat emission blower fan
Distribution switchboard
Test terminal of sample
USB physical interface (need to be purchased together with centralized monitoring software)
Residual current circuit breaker of main power supply



Heating Device

Basin heating humidifying method
Stainless steel armored heater is adopted in basin humidification
Control mode of heater: non contact equal period pulse-width modulation, SSR (solid state
relay)
Water level control device, dry heating prevention device of heater
Humidifier 1.Basin heating humidifying method
2.Control mode of heater: non contact equal period pulse-width modulation, SSR (solid state relay)
3.Water level control device, dry heating prevention device of heater


Control panel

Temperature (humidity) control display, over temperature protection setting device,emergency switch, run indicator, failure
indicator


Compressor

Imported Compressor
Fits wide range of pressure
Higher heating efficiency
Easy to maintain






Features

1.Unique design of the box within the wind circulation structure, to ensure that under the conditions of the test with the case of
uniformity within the box within ± 2 ℃

2.Unique design of the humidity test when the top of the box anti-drip design to ensure that live test from water short circuit,
surface water pollution

3.Using the latest environmentally friendly adsorption drying processor, effective control of the product when the surface
temperature condensation

4.The refrigeration room is fully sealed and soundproofed to reduce machine noise and box resonance, machine noise control within
75db./Other Contact us
