Model: | QTH-V2000D | Name: | Temperature Humidity Climatic Chamber |
---|---|---|---|
Temp. Range: | -70℃ ~ +100℃(150℃) | Insulation Material: | Rigid Polyurethane Foam |
Internal Dimension: | 2 * 1 * 1m (W * H * D) | Power Supply: | AC380V, 50/60HZ |
Highlight: | Custom Humidity Climatic Chamber,2000L Humidity Climatic Chamber,2000L Temperature Humidity Test Chamber |

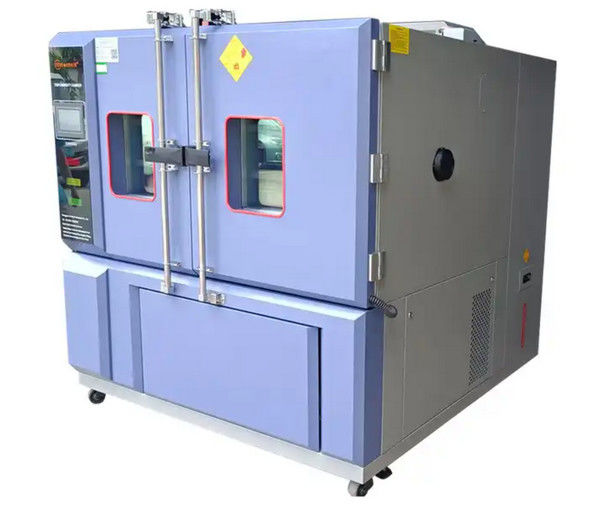

Cold Balanced Control Custom design Humidity Climatic Chamber
Temperature Humidity Test Chamber 2000L
Custom Design Humidity Climatic Chamber Temperature Humidity Test Chamber 2000L
iTemp Series Products Conform Following Standards:
※ IEC60068-3-5-2002 Environmental testing-Part 3-5 Support documentation and guidance-Confirmation of the performance of temperature chambers.
※ IEC6068-3-6-2002 Environmental testing-Part 3-6 Supporting documentation and guidance – Confirmation of the performance of temperature/humidity chambers.
※ IEC68-2-1 (GB-2423.1-2008) Testing A: Low temperature testing method
※ IEC68-2-2 (GB-2423.2-2008) Testing B: High temperature testing method
※ MIL-STD-202F (GJB360.8-87) High temperature life testing
※ MIL-STD-810D (GBJ150.3) High temperature method
※ MIL-STD810D (GBJ150.4) Low temperature method
※ IEC68-2-3 (GB2423.3-93) Testing Ca: Constant moist heat testing method
※ IEC68-2-30 (GB2423.4-93) Testing Db: Alternate moist heat testing method
※ MIL-STD-810D (GJB150.9-93) Moist heat testing method
Technical Specifications:
Control Mode | Cold Balanced Temperature and Humidity Control System |
Operating Temp. & Humid. Range | +5℃ ~ +35℃; <85%R.H. |
Internal Dimension | 2 * 1 * 1m (W * H * D) |
Temp. Range | -70℃ ~ +100℃(150℃) |
Humid. range | 20% ~98%R.H. |
Temp. & Humid. Fluctuation | ±0.5℃; ≤2%R.H. |
Temp. & Humid. Uniformity | ≤2.0℃; ≤3%R.H. |
Temp. & Humid. Resolution | 0.01℃; 0.1%R.H. |
Temp. Heating Up Time |
0℃ ~ +100℃within 30min; -20℃ ~ +150℃within 45min |
Temp. Pull Down Time |
20℃ ~ -40℃within 60min; 20℃ ~ -70℃within 85min |
Power Supply |
AC380V, 50/60HZ, Three-phase (Specified by User) |
Exterior Material | Stainless steel with baking paint |
Interior material | SUS304# Stainless steel |
Insulation material | Rigid Polyurethane foam |
Refrigeration System |
Mechanical cascade refrigeration system; Fin type radiator |
Circulation system | Mechanical convection system |
Humidification Water Supply | Automatic water regulating, recoverable supply system, water shortage alarm system |
Water Quality | Distilled water only, 20L Water tank capacity |
Controller | Touch Screen Controller HL-1000 |
Safety Devices |
Overheat protector Switch, Compressor overload protector Switch, water shortage protector Switch, Humidifier protector Switch, Fault alarm system |
Accessories |
Viewing window, Chamber Illumination, Cable port ø50mm, Product shelf slides 2 pieces, Universal casters Touch screen controller HL-1000 |
Note:
1, The performance values are no specimen inside the test area.
2, At 20℃ ambient temperature, relative humidity 65%RH, rated voltage
3, According to IEC60068-3-5:2001 and IEC60068-3-6:2001
4, The above specifications are for reference only.
