Product Details:
Payment & Shipping Terms:
|
| Model: | ZK-200 | Internal: | Dimension: 200x100x50cm |
|---|---|---|---|
| Temp: | (NSS ACSS) 35°C±1°C | Air Pressure: | 1.00±0.01kgf/cm2 |
| PH: | NSS: 6.5~7.2, CASS: 3.0~3.2 | Application: | Corrosion Of Electronic Equipment, Metallic Material |
| High Light: | 1000L Salt Spray Test Chamber,Salt Spray Test Chamber ASTM B117,Corrosion Resistance Salt Spray Test Chamber |
||

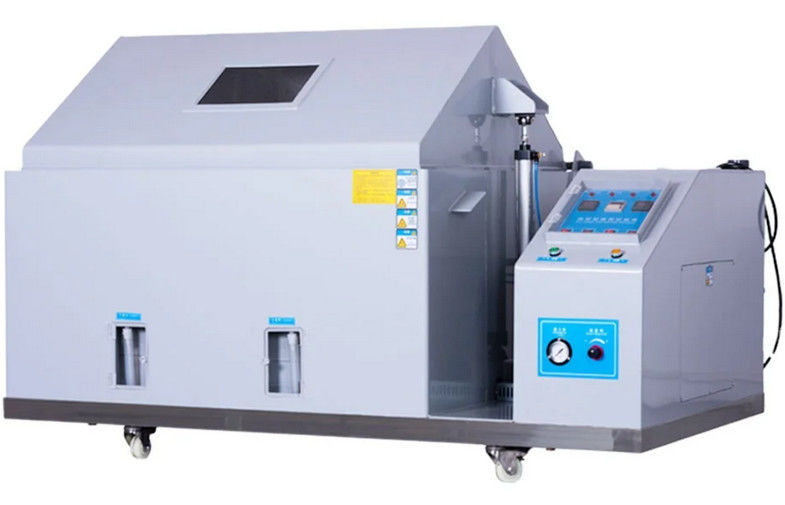

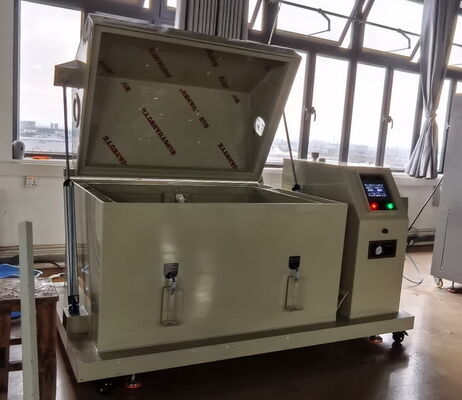

salt spray chamber price ASTM B117 corrosion resistance machine spray testing chamber
Overview:
The salt spray test chamber is a climate simulation device that tests the corrosion of electronic equipment, metallic material, as well as some surface treatment--coating, galvanizing, organic/inorganic coating, anodizing treatment, rust-proof oil coating, etc.
Performance indicators in line with requirements of GB / T5170.8 Electrical and Electronic Products, Environmental Testing Equipment, the Basic Parameters of the Test Method.
The salt spray corrosion test chamber according to GB / T2423.17 Electronic and Electrical Products Basic Environmental Test Procedures Test: Salt Spray Test Method for neutral salt spray test can also be used for acetic acid salt test.
Technical Specifications:
| Model | ZK-60 | ZK-90 | ZK-120 | ZK-160 | ZK-200 |
| Inner size (cm) | 60x45x40 | 90x60x50 | 120x100x50 | 160x100x50 | 200x100x50 |
| External size(cm) | 107x60x118 | 141x88x128 | 190x110x140 | 230x130x140 | 270x150x150 |
| Inside temp | test method (NSS ACSS)35°C±1°C; Corrosion resistance test method (CASS)50°C±1°C |
||||
| temp | (NSS ACSS) 35°C±1°C; (CASS) 50°C±1°C | ||||
| Test chamber volume | 108L | 270L | 600L | 800L | 1000L |
| solution volume | 15L | 25L | 40L | 40L | 40L |
| Compressed air pressure | 1.00±0.01kgf/cm2 | ||||
| Spray volume | 1.0~2.0ml/80cm2/h (Collect at least 16 hours, the average) | ||||
| Test room relative humidity | 85%RH or more | ||||
| PH | 6.5~7.2 3.0~3.2 | ||||
| Spray method | Programmable spray (including the continuous spray interrupted spray) | ||||
| Power | AC220V1Φ10A | AC220V1Φ15A | AC220V1Φ20A | AC220V1Φ20A | AC220V1Φ30A |
