Product Details:
Payment & Shipping Terms:
|
| TGL18E: | High Speed 18000rpm Micro Refrigerated Centrifuge | Centrifuge Body: | High Quality Steel Frame, Safe And Reliable |
|---|---|---|---|
| Brushless Frequency Motor: | Simpler Construction, More Reliable Performance, Longer Life And Quietly Running. | Microprocessor Control: | Microprocessor Control, LCD Display, Parameters In Running Can Be Edited And Change |
| Steel Cover: | 3 Tiers Protection Steel Cover, Safe And Reliable | Compressor: | Adopting Efficient Fluorine-free Compressor, Fast In Cooling |
| Highlight: | Fluorine Free Compressor Micro Refrigerated Centrifuge,Micro Refrigerated Centrifuge 18000rpm,High Speed Micro Refrigerated Centrifuge |
||

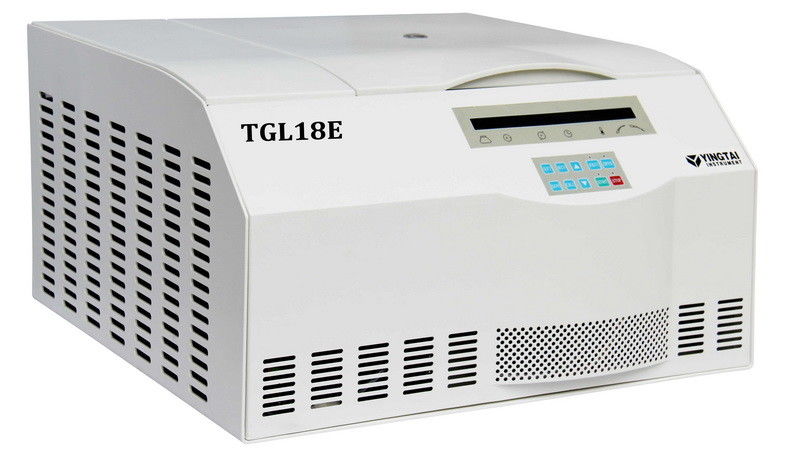

Fluorine Free Compressor TGL18E High Speed 18000rpm Micro Refrigerated Centrifuge
Features:
1. Microprocessor control, LCD display, parameters in running can be edited and change to display other running parameter and RCF.
2. Brushless frequency motor with simpler construction, more reliable performance, longer life and quietly running.
3. Automatic lid lock.
4. High quality steel frame, safe and reliable.
5. Adapters are available by experiment requirements.
6. 3 tiers protection steel cover, safe and reliable.
7. Adopting efficient fluorine-free compressor, fast in cooling.
Technical Specifications:
| Max. Speed | 18000rpm |
| Max. RCF | 22920×g |
| Max. Capacity | 48×1.5ml |
| Time Range | 0~99h59min |
| RPM/RCF Convert | Yes |
| Noise (dB) | ≤ 55 |
| Temperature | -20℃-40℃ |
| Acc/Dcc | 10 Kinds |
| Speed Accuracy | ±20r/min |
| Temperature Accuracy | ±1℃ |
| Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
| Size (W x D x Hmm) | 380×608×570mm |
| Net Weight(Kg) | 82KG |
| Certificates | CE,ISO & Calibration report are available |
Matched Rotors for TGL18E:
| Order No. | Rotor No. | Max Speed (rpm) |
Max Volume (ml) |
Max.RCF(×g) |
| NO18E01 | Angle Rotor | 14000 | 12×8PCR | 19970 |
| NO18E02 | Angle Rotor | 15000 | 24×1.5ml | 20600 |
| NO18E03 | Angle Rotor | 18000 | 12×1.5/2ml | 22710 |
| NO18E04 | Angle Rotor | 15000 | 40×0.5ml | 22920 |
| NO18E05 | Angle Rotor | 14000 | 48×1.5/2ml | 20800 |
| NO18E05 | Angle Rotor | 16000 | 10×5ml | 17890 |
| NO18E05 | Angle Rotor | 15000 | 6×10ml | 18900 |
