| Model: | HARTIP2200 | Impact Device: | R/F Wireless Probe |
|---|---|---|---|
| Impact Direction: | Recognized Automatically | High Accuracy: | ±2HL(0.3% @HL800) |
| Probe Identified: | Different Probe Can Be Identified Automatically | Data Saving: | 300 Data For Memory |

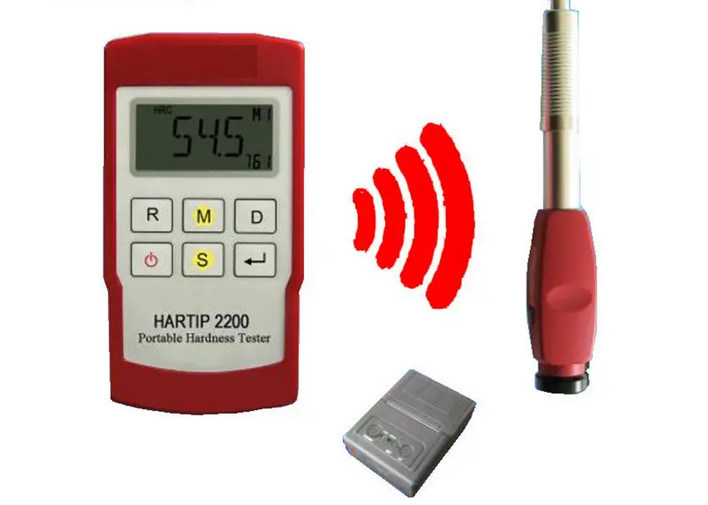

Portable Digital Leeb Hardness Tester HARTIP2200 with Wireless Impact Device DC
Brief Introduction:
iqualitrol HARTIP2200 of Portable digital hardness tester is an innovation of HARTIP series portable hardness tester. It works with a wireless RF probe. The RF probe can transfer measuring value to main unit wirelessly via RF module within the range of 10 meters.
The measuring data also can be printed out wirelessly via micro-printer. Furthermore, It does not need to setup impact direction manually. The main unit with LCD display can be placed around anywhere. So one person is OK for operation. With RF probe, you would be far away from the bother which caused by the broken cable of tester.There is a rechargeable Li-ion battery inside the RF probe and can be charged directly by USB port of PC or mobile phone charger.
Advantages:
1, R/F wireless probe;
Universal impact direction mode, it does not need to setup different impact direc tion, it will be recognized automatically;
2, High accuracy: ±2HL(0.3% @HL800);
Linear accuracy for any angles;
3, Different probe can be identified automatically;
Dualvalues (Leeb valuean done conversion value) can be displayed at the same screen;
4, Big LCD display with backlight;
It can connect micro-printer wirelessly;
5, 300 data for memory;
Customer re-calibration allowed;
6, Power off automatically, more economic and more convenient to use.
Technical Specifications:
| Principle | Leeb Hardness Measurement |
| Accuracy | ±0.3% @ HL=800, Repeatability: ±2HL |
| Display | Digital LCD With Backlight |
| Hardness Scale | HL / HRC / HRB / HB / HV / HS / HRA /Σb |
| Measuring Range | HL100-960 / HRC0.9-79.2 / HRB1.2-140 / HB1-1878 / HV1-1698 / HS0.5-128 Σb (Rm) 24-6599N/Mm2 |
| Probe | R/F Wireless Probe D / DC / DL / C / D+15 |
| R/F Communication Distance | 10m In Space |
| R/F Frequency | 2.4GHz |
| Impact Direction | Universal Angle (UA) Type |
| Materials | 10 Common Metal Materials |
| Memory | 300 Data Can Be Stored And Re-Readable |
| Statistics | Calculated Automatically |
| Re-Calibration | Allowed By User |
| Indicator | Low Battery |
| Communication Interface | Wireless Micro-Printer |
| Auto Power Off | Auto |
| Power Supply | 1.5V AA Alkaline Battery X 2 (Main Unit) / 3.7V Li-Ion Rechargeable Battery (Wireless Probe) |
| Working Environment | -10~+40ºC |
| Dimension(Mm) | 124x67x30 |
| Net Weight(G) | 240 |
| Standards | Conforming To ASTM A956, DIN 50156, GB/T 17394-1998 |
