Forced Air Precision Drying Oven with Volume 216L

Forced Air Precision Drying Oven with Volume 216L
Forced Air Precision Drying Oven with Volume 216L

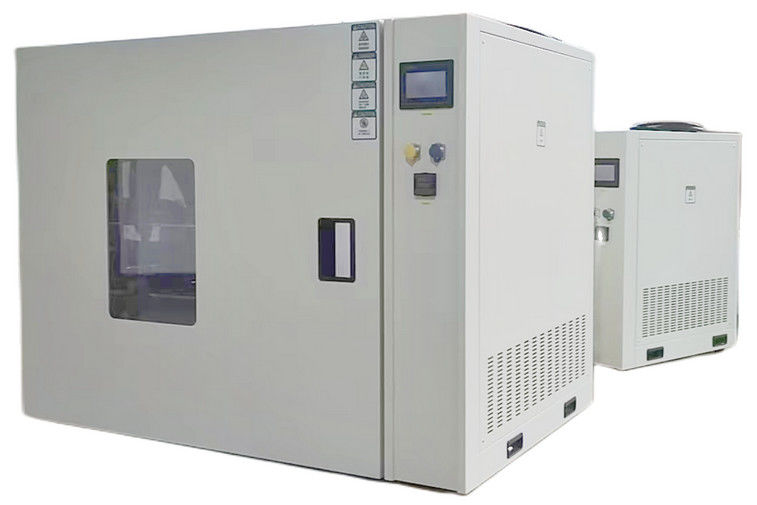

Large Image :  Forced Air Precision Drying Oven with Volume 216L

Product Details:
Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE, ISO
Model Number: QKX-216
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiate in details
Packaging Details: Plywood Box
Delivery Time: 20 working days
Payment Terms: T/T, Western Union
Supply Ability: 20 Sets per Month
Detailed Product Description
Model: QKX-216 Volume: 60×60×60(W×H×D)cm
Data Logging: Touch Screen Controller Support Data Logging Over Temperature: Alarm By Tricolor Light
Temp Range: RT+20℃~150℃ Material: SUS304# Mirror Stainless Steel


Forced Air Precision Drying Oven with Volume 216L


Forced air oven is designed to meet both manufacturing and laboratory requirements.



1, Oven exterior material is high quality Cold Rolled Steel with surface treatment, nice appearance and durable.

2, Interior material is SUS304# mirror stainless steel with excellent heat resistance and easy to clean.

3, Unique combination of bottom scattered wind and heater, centrifugal turbine cycle effectively extend using life of fan.

4, Temperature uniformly distributed in the interior chamber, loop fan is automatically closed after temperature reaches setup.

5, With over-heat protection switch and power off memory function

6, The Ovens are widely used in kinds of composite materials, like electric parts, rubber, plastics, aerospace and automotive industries, etc.

7, Custom made maximum temperature range from room temperature to 500℃.

8, Vacuum oven is available according to specific applications.


Technical Specifications:

Model QKX-216
Interior dimensions 60×60×60(W×H×D)cm
Exterior dimensions 125×98×85(W×H×D)cm
Power AC220V 50HZ 2.5 KW 15A
Control System Hot air circulation control mode
Ambient temp. & humid. +5℃ ~ +35℃ / <85%RH
data logging Touch screen controller support data logging
over temperature alarm Alarm by tricolor light
Temp. range RT+20℃~150℃
Heating up time RT~100℃, 5℃/min
Temp. uniformity ±1.5℃ empty loading
Temp. constancy ±0.5℃
Temp. accuracy ±2℃
Interior material SUS304# mirror stainless steel, thickness 1.5mm
Exterior material high quality Cold Rolled Steel with surface treatment
Insulation Glass wool
Safety devices Overheat protector, Magnetic switch, Porcelain fuse, Alarm system

1, At 20℃ ambient temperature or 25℃ water temperature and non-loaded.

2, The above specifications are for reference only, the actual specifications for the main quotation.

3, Interior dimension is available for custom made.
