| Model: | HV-1000TPTA | Auto Turret: | Automatically Switch The Objective Lens, Indenter |
|---|---|---|---|
| Advantages: | High Accuracy, High Reliability, Comprehensive Intelligence | Force Change: | By Rotating Force Knob To Select Test Force And Displays On Touch Screen |
| Magnifications: | Total Magnifications: 100x, 400x, Range 0～200μm | Energy Saving: | Enter Standby Mode After No Operation 5min |

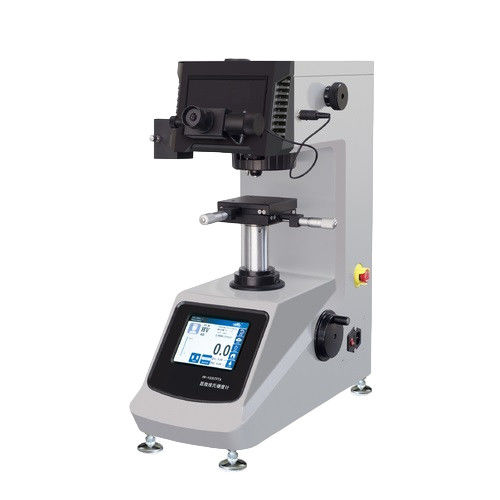

Micro Vickers Hardness Tester IQUALITROL HV-1000TPTA with Touch Screen and Printer
Technical Data Download: iqualitrol Vickers Hardness Tester HV-1000TPTA
Brief Introduction:
IQUALITROL HV-1000TPTA micro Vickers hardness tester was designed and produced according to standards of GB/T4340.2-2012, ISO6507-2 and American ASTME384.
IQUALITROL HV-1000TPTA can automatically switch the objective lens, Indenter, input the measured diagonal length value, and automatically perform functions of hardness calculation, storage, display, printing and hardness conversion.
It has the characteristics of accurate testing accuracy, high reliability, comprehensive intelligence, minimal indentation, and no damage to the sample.
Technical Specifications:
| Model | Micro Vickers Hardness Tester IQUALITROL HV-1000TPTA |
| Scales | HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1 |
| Test Force |
0.098,0.2452,0.4903,0.9807, 10, 25, 50, 100, 200, 300, 500, 1000(gf) |
| Force Change | by rotating force knob to select test force and displays on touch screen |
| Loading Control | Automatic loading, dwell, unloading |
| Turret | Auto Turret |
| Display | 5.6” capacitive touch screen |
| Dwell Time | 1~60 seconds, adjustable, step 5 seconds |
| Test Modes | HV/HK |
|
Vickers Hardness Range |
5-3000HV, indication error 3-5%HV. |
| Test Space | Height 110mm, depth throat 110mm |
| Optic System |
Objectives: 10x, 40x, step 0.03μm Total magnifications: 100x, 400x, range 0～200μm |
| XY Test Anvil |
Dimension: 100×100(mm), Travel: 25×25(mm), resolution: 0.01mm |
| Illumination | 12V/20W, lightness adjustable |
| Energy Saving | Enter standby mode after no operation 5min |
| Power Supply | AC220V/50Hz, power consumption: 100W |
| Weight & Dimension | 525×330×620mm, weight: 36KG |
| Advantage Features | Built-in printer, interval range alarm |
