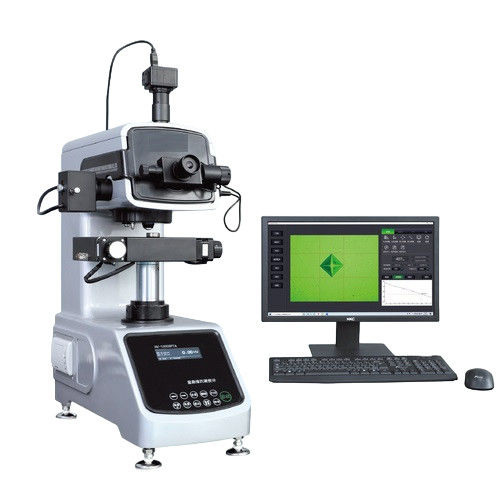

Fully Automatic Micro Vickers Hardness Tester QHV-1000SPTA with Motorized Platform

Fully Automatic Micro Vickers Hardness Tester QHV-1000SPTA with Motorized Platform
Fully Automatic Micro Vickers Hardness Tester QHV-1000SPTA with Motorized Platform

Large Image :  Fully Automatic Micro Vickers Hardness Tester QHV-1000SPTA with Motorized Platform

Product Details:
Brand Name: iqualitrol
Model Number: QHV-1000SPTA
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Plywood Box
Delivery Time: 20 working days
Payment Terms: T/T, Western Union
Supply Ability: 10 Sets per Month
Detailed Product Description
Model: QHV-1000SPTA Test Space: Height 90mm, Depth Throat 110mm
Hardness Reading: Automatically Calculate Diagonal Length Value By Software Vickers Software: Hardness Calculation, Storage, Display, Printing And Hardness Conversion
XY Test Anvil: Motorized Movement By Computer Software Magnifications: Total Magnifications: 100x, 400x, Range 0~200μm



Fully Automatic Micro Vickers Hardness Tester
QHV-1000SPTA with Motorized Platform



Technical Data Download:
iqualitrol Vickers Hardness Tester QHV-1000SPTA



Product Overview:

IQUALITROL QHV-1000SPTA micro Vickers hardness tester is designed and produced according to the standards of GB/T4340.2-2012, ISO6507-2 and American ASTME384.



IQUALITROL QHV-1000SPTA hardness testing instrument that combines mechanical, optical and computer technology. It can automatically switch the objective lens, Indenter, input the measured diagonal length value, and automatically perform functions such as hardness calculation, storage, display, printing and hardness conversion.



IQUALITROL QHV-1000SPTA is suitable for testing the Vickers or Knoop hardness of tiny metal parts, sheets, metal foils, and workpiece hardened layers, electroplated layers, nitrided layers, carburized layers, and cyanide layers.



This instrument has the characteristics of accurate testing accuracy, high reliability, comprehensive intelligence, minimal indentation, and no damage to the sample.



IQUALITROL QHV-1000SPTA can be used as metallographic microscope to observe the structure and body of materials. When the interface is matched with a computer, it can be used as a microhardness tester for image processing after installing a CCD camera and software card.



Technical Specifications:

Model IQUALITROL QHV-1000SPTA
Vickers Scales HV0.01, HV0.025, HV0.05, HV0.1,
HV0.2, HV0.3, HV0.5, HV1
Test Forces 0.098, 0.2452, 0.4903, 0.9807,
1.961, 2.942, 4.904, 9.807 (N)
10 25 50 100 200 300 500 1000 (gf)
Force Change by rotating force knob to select test force and displays on touch screen
Loading Control Automatic loading, dwell, unloading
Turret Auto Turret
Dwell Time 1~60 seconds, adjustable, step 5 seconds
Test Modes HV/HK
Vickers Hardness Range 5-3000HV, indication error 3-5%HV.
Test Space Height 90mm, depth throat 110mm
Optic System Objectives: 10x, 40x, step 0.025μm
Total magnifications: 100x, 400x, range 0~200μm
XY Test Anvil Dimension: 100×100(mm), Travel: 25×25(mm), resolution: 0.01mm
Anvil Control Manually, Motorized, Computer Software
Illumination 12V/20W, lightness adjustable
Energy Saving Enter standby mode after no operation 5min
Power Supply AC220V/50Hz, power consumption: 100W
Weight and Dimension 525×330×620mm, weight: 36KG
