| HVS-1000A: | Automatic Turret | HVS-1000B: | Manual Turret |
|---|---|---|---|
| Accuracy Meets: | GB/T4340.2 ISO6507-2 And American ASTM E384 | Data Output: | Equipped With RS232 Data Interface |
| Test Process: | Automated, The Operation Is Simple, And There Is No Human Error | Optical System: | High-precision Optical Measurement System, Precision Coordinate Test Bench |

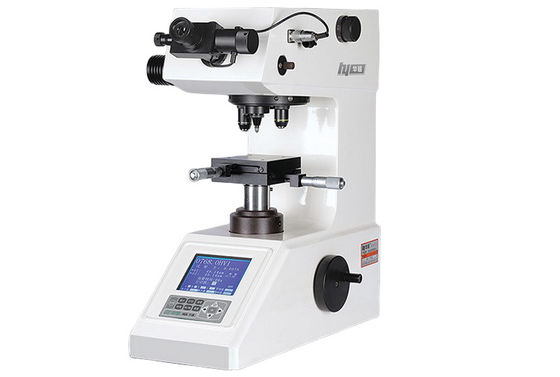

Precision Optical System Digital Micro Vickers Hardness Tester with
Large LCD Screen HVS-1000A
Main features:
● HVS-1000A is automatic turret;
● HVS-1000B is manual turret;
● Frictionless spindle, high test force accuracy;
● High-precision optical measurement system, precision coordinate test bench;
● Conversion of various hardness values;
● The test process is automated, the operation is simple, and there is no human error;
● Equipped with RS232 data interface;
● Knoop indenter can be selected for Knoop hardness test;
● IQUALITROL image measurement system can be selected;
● The accuracy meets GB/T4340.2 ISO6507-2 and American ASTM E384.
Application range:
● Ferrous metals, non-ferrous metals, IC sheets, surface coatings, laminated metals;
● Glass, ceramics, agate, gemstones, etc.;
● Depth and gradient measurement of carburized layer, nitrided layer, etc. and quenching hardened layer;
● Microscopic Vickers hardness measurement of small parts such as thin plates and thin sheets.
Technical Specifications:
| Model | Micro Vickers Hardness Tester IQUALITROL HVS-1000A/B |
| Scales | HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1 |
| Test Force |
0.098,0.2452,0.4903,0.9807,1.961,2.942,4.904,9.807 (N) 10 25 50 100 200 300 500 1000 (gf) |
| Force Change | by rotating force knob to select test force and displays on touch screen |
| Loading Control | Automatic loading, dwell, unloading |
| Turret | Auto Turret (HVS-1000A) |
| Display | touch screen |
| Dwell Time | 1~60 seconds, adjustable, |
| Test Modes | HV/HK |
| Vickers Hardness Range |
5-3000HV |
| Test Space | Height 75mm, depth throat 110mm |
| Optic System |
Objectives: 10x, 40x, step 0.03μm Total magnifications: 100x, 400x, range 0～200μm |
| XY Test Anvil | Dimension: 100×100(mm), Travel: 25×25(mm), resolution: 0.01mm |
| Illumination | 12V/20W, lightness adjustable |
| Power Supply | AC220V/50Hz, power consumption: 100W |
| Weight and Dimension | 470×320×510mm, weight: 40KG |
