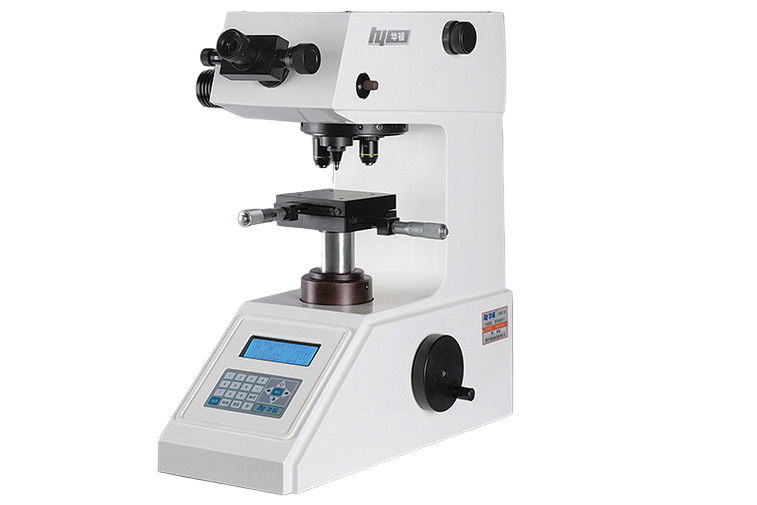

Entry Level Non-Digital 10X Eyepiece Micro Vickers Hardness Tester IQUALITROL HV-1000A

Entry Level Non-Digital 10X Eyepiece Micro Vickers Hardness Tester IQUALITROL HV-1000A
Entry Level Non-Digital 10X Eyepiece Micro Vickers Hardness Tester IQUALITROL HV-1000A

Large Image :  Entry Level Non-Digital 10X Eyepiece Micro Vickers Hardness Tester IQUALITROL HV-1000A

Product Details:
Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE, ISO
Model Number: HV-1000A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiate in details
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 10 Sets per Month
Detailed Product Description
HV-1000A: Automatic Turret HV-1000B: Manual Turret
Force Accuracy: Frictionless Spindle, High Test Force Accuracy Optic System: High-precision Optical Measurement System, Precision Coordinate Test Bench
High Speed Processor: Adopt ARM High-speed Processor, Small LCD Screen Automated Process: Test Process Is Automated, The Operation Is Simple, And There Is No Human Error



Entry Level Non-Digital Eyepiece 10X Micro Vickers Hardness Tester IQUALITROL HV-1000A



Main features:

● Frictionless spindle, high test force accuracy;

● High-precision optical measurement system, precision coordinate test bench;



● Adopt ARM high-speed processor, small LCD screen;

● The test process is automated, the operation is simple, and there is no human error;



● Optional Knoop indenter for Knoop hardness test;



● IQUALITROL self-developed Vickers measurement system is optional, which can realize online function through data line, control all actions of hardness tester on computer, automatically capture indentation image, automatically measure hardness value, automatically generate hardness curve, and automatically calculate effective hardened layer depth;



● Accuracy meets GB/T4340.2 ISO6507-2 and American ASTM E384.



Application range:

● Ferrous metals, non-ferrous metals, IC sheets, surface coatings, laminated metals;

● Glass, ceramics, agate, gemstones, etc.;



● Depth and gradient measurement of carburized layer, nitrided layer, etc. and quenched hardened layer;

● Microscopic Vickers hardness measurement of small parts such as thin plates and thin sheets.



Technical Specifications:

Model Micro Vickers Hardness Tester IQUALITROL HV-1000A
Scales HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1
Test Force

0.098,0.2452,0.4903,0.9807,1.961,2.942,4.904,9.807 (N)

10 25 50 100 200 300 500 1000 (gf)

Force Change by rotating force knob to select test force and displays on touch screen
Loading Control Automatic loading, dwell, unloading
Turret Auto Turret (HV-1000A); Manual Turret (HV-1000B)
Display Small LCD Screen
Dwell Time 1~60 seconds, adjustable,
Test Modes HV/HK
Vickers Hardness Range 5-3000HV
Test Space Height 75mm, depth throat 110mm
Optic System

Objectives: 10x, 40x, step 0.03μm

Total magnifications: 100x, 400x, range 0~200μm

XY Test Anvil Dimension: 100×100(mm), Travel: 25×25(mm), resolution: 0.01mm
Illumination 12V/20W, lightness adjustable
Power Supply AC220V/50Hz, power consumption: 100W
Weight and Dimension 470×320×510mm, weight: 40KG
