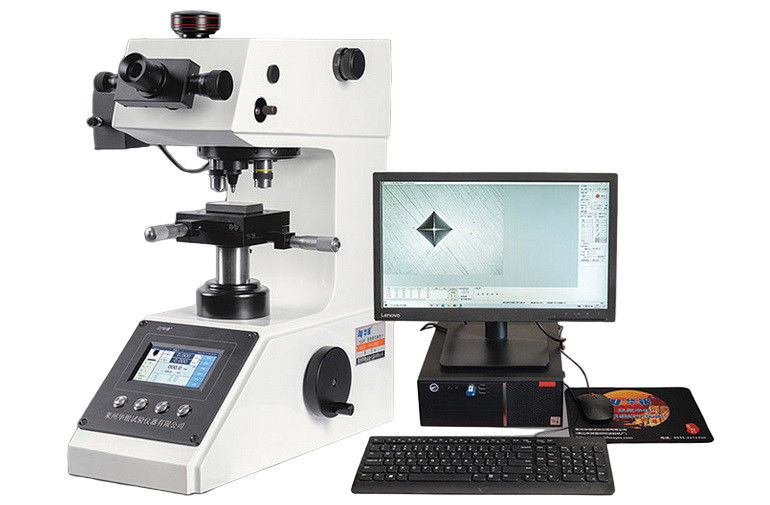

IQUALITROL Vickers Hardness Testing Vision Measuring Software HYHV300

IQUALITROL Vickers Hardness Testing Vision
Measuring Software HYHV300

Product Overview:

The iqualitrol HYHV300 micro/Vickers hardness image measurement system is an advanced professional hardness image measurement product.

The system supports multiple measurement methods such as manual measurement and automatic measurement, with high measurement accuracy and good repeatability.

The system supports Vickers hardness, Knoop hardness and fracture toughness measurement; there are enhanced version, linkage version and other versions of software to meet the different needs of customers.

Main Functions:

● Measuring range: supports all force values from 10 grams to 50 kilograms;

● Real-time control: The linkage version software supports the control and linkage of the hardness tester. Through the RS232 interface, the software controls the hardness tester, adjusts the brightness, controls the turret, switches the lens, loads with variable loads and reads directly in real time;

● Image acquisition: real-time display of hardness images, storage and printing of images, and the magnification of output images can be set;

● Automatic measurement: automatically find the four vertices of the indentation and directly read the hardness value, fast speed and accurate data;

● Diagonal measurement: measure the four vertices of the indentation tangent to the four edges and read the hardness value;

● Four-point measurement: click the four vertices of the indentation with the mouse to read the hardness value, and the enlarged picture is displayed in real time;

● Hardness conversion: according to national standards, automatically convert multiple hardness values ​​such as Brinell-Rockwell-Vickers-Knoop and display them in real time;

● Layer depth curve: Draw the hardness-depth curve according to the measured data, and can output dual hardness curves (HV and HRC/HRA, etc.).

● Graphic report: Automatically record the measured data, automatically generate the hardness-depth curve, save or print the hardness-depth curve, indentation image and all indentation measurement values, and save all reports as WORD documents;

● Image printing: Users can set the export mode of indentation images, which can be divided into all images, current images or no image output;

● Result statistics: Export the measurement results of multiple indentations in EXCEL data format, and automatically count the number of measurements, maximum hardness value, minimum hardness value, average value, mean square error, etc.

Main Features:

● Widely applicable: can be matched with the full range of Vickers and micro hardness testers produced by iqualitrol;

● Convenient installation: USB2.0 port is connected to the computer, no card is required during installation;

● Stable performance: as long as the hardness tester image is clear and uniform, even if there are a few scratches or rust on the indentation, it can also read automatically;

● Powerful functions: manual reading, automatic reading, hardness conversion, depth hardness curve, indentation image, graphic report function;

● Easy to use: calibration through hardness block, customers can operate conveniently and quickly, and can use it proficiently with a little training;

● Automatic reading: original automatic reading algorithm, automatic reading of various indentations, fast speed and high accuracy;

● Good repeatability: automatic reading has high repeatability, meeting the professional requirements of users.
