Measuring Eyepiece for Vickers Hardness Indentation Diagonal Measurement

Measuring Eyepiece for Vickers Hardness Indentation Diagonal Measurement
Measuring Eyepiece for Vickers Hardness Indentation Diagonal Measurement Measuring Eyepiece for Vickers Hardness Indentation Diagonal Measurement

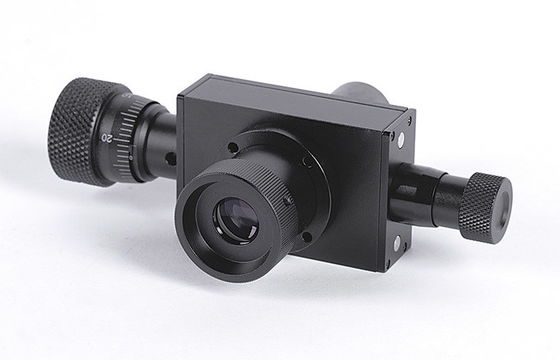

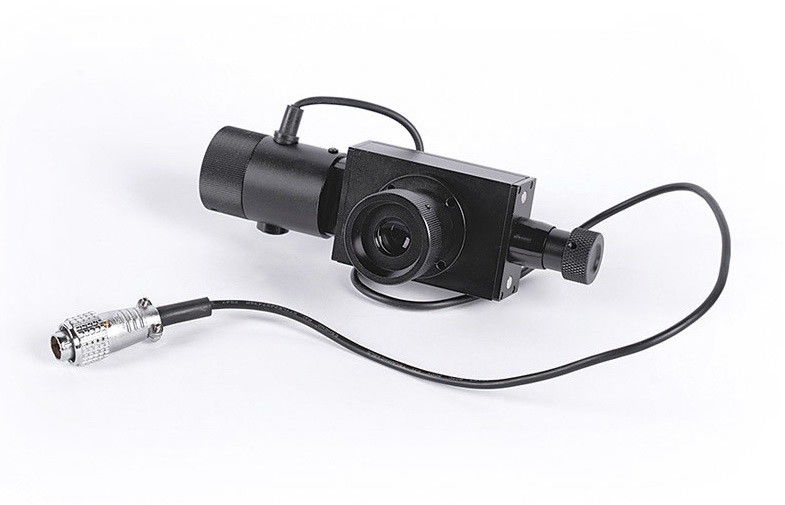

Large Image :  Measuring Eyepiece for Vickers Hardness Indentation Diagonal Measurement

Product Details:
Brand Name: iqualitrol
Model Number: CWJS-10
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Carton Box
Delivery Time: 3 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 50 Sets per Month
Detailed Product Description
CWJ: Non-digital, For Basic Vickers Hardness Testers CWJS: Digital Type, For Advanced Vickers Hardness Testers
Magnification: 10X, 15X, 20X Field Of View: 16mm, 12.5mm, 12mm



Eyepiece for Vickers Hardness Indentation Diagonal Measurement



Main Features:

Used for iqualitrol Vickers and Micro Vickers Indentation diagonal measurement



CWJ is non-digital, for basic Vickers hardness testers, need to manually input measuring length, then get hardness result;



CWJS is digital type, for advanced Vickers hardness testers, can directly display hardness result by click button on eyepiece.



Technical Specifications:

Model CWJ-10 CWJS-10 CWJ-15 CWJS-15 CWJS-20
Magnification 10X 10X 15X 15X 20X
Field of View(mm) 16 16 12.5 12.5 12
Dimension(mm) 143x45x98 158x45x100 150x45x80 158x45x80 180x50x80
Weight(kg) 0.35 0.42 0.35 0.39 0.45
