| Internal Size: | 500*500*500mm | Temperature: | Display Accuracy: ±1℃ |
|---|---|---|---|
| Outer Material: | High-quality Cold-rolled Steel | Structure: | Full-door Design |
Full Door Design

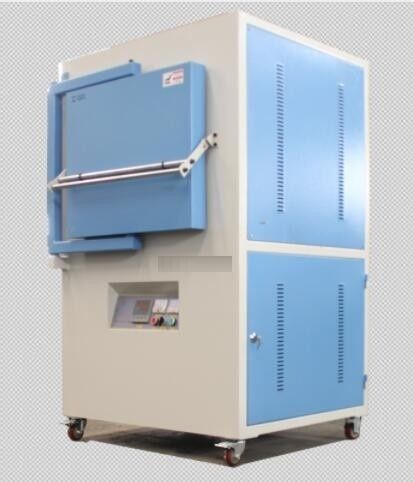

Energy Saving Performance Muffle Furnace SGM.M125/16SE
Sintering Performance:
Furnace Size: 500*500*500mm
Short-term Maximum Temperature: 1600℃
Long-term Maximum Temperature: 1550℃
Temperature Stability: ±1℃
Recommended Heating Rate: Set freely from 1-15℃/min
Furnace Chamber Material: Made of special alumina ceramic fiber, vacuum formed, high temperature resistant and non-powdering. Uses vacuum forming technology and high-quality silicon molybdenum rods, which are distributed on both sides of the furnace chamber, ensuring uniform temperature and easy replacement.
Heating Control Performance
1. Power Supply Voltage: 380V
2. Heating Power: 36KW (This is the maximum design power; power during constant temperature or empty furnace is 30% of the maximum)
3. Heating Element: High-quality silicon molybdenum rods
4. Control Mode: Uses PID temperature controller with self-tuning PID parameters, manual/automatic seamless switching, over-temperature alarm, 50 programmable time segments, automatic heating and stopping, meeting requirements for continuous temperature control.
Electronic components to ensure long-term stability and reliability. Once the program is set on the controller, pressing the start button completes the work automatically.
5. Display Accuracy: ±1℃
6. The instrument has password setting for parameter control.
7. Temperature Fluctuation: ≤1-3℃, Temperature Stability: ≤±1℃
8. Display Window: Dual display of measured and set temperature, heating power shown in bar graph.
Other Performance:
1. Energy-saving Performance: Lightweight, fast heating, saves over 50% energy, time, and effort.
2. Control Features: Modular control system, long-life design for key components, simple and reliable process, good stability, high accuracy.
3. Integrated Structure: Full-door design, double-layer casing, air circulation insulation, low surface temperature.
4. Outer Casing: Made of high-quality cold-rolled steel, rust removed and electrostatically sprayed.
