|Diameter:||Disc Diameter φ203mm||Speed:||Rotation Speed 1400rpm|
Metallographic Sample Preparation Equipment 180W,
Metallographic Sample Preparation Equipment 1400rpm
Single Disc Metallographic Sample Preparation Equipment Polishing Machine Speed 1400rpm
Catalogue Download: iqualitrol Grinding and Polishing Machine XGrind-301

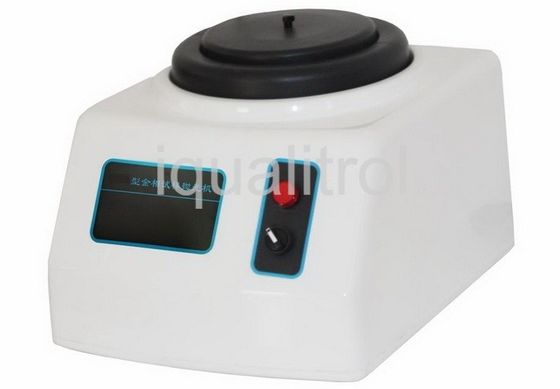

In the process of metallographic sample preparation, polishing is a main procedure. After polished, the sample surface is like a mirror. XGrind-301 metallographic sample polishing machine is a classic polishing equipment with steady running,small noise, convenient operation and maintenance.
XGrind-301 meets the polishing requirement of all kinds of materials, and suitable for factories and mines enterprises,colleges and universities,scientific research institution.
|Grinding/polishing disc diameter||φ203mm|
|Rotate speed:||1400r/min (900r/min alternative)|
|Disc quantity||Single Disc|
|Dimension||360mm x450mm x320mm|
Polishing discs are covered with soft cloth impregnated with abrasive diamond particles and an oily lubricant or water lubricant.
Particles of two different grades are used: a coarser polish - typically with diamond particles 6 microns in diameter which should remove the scratches produced from the finest grinding stage, and a finer polish – typically with diamond particles 1 micron in diameter, to produce a smooth surface.
Before using a finer polishing wheel the specimen should be washed thoroughly with warm soapy water followed by alcohol to prevent contamination of the disc. The drying can be made quicker using a hot air drier.
Mechanical polishing will always leave a layer of disturbed material on the surface of the specimen. Electropolishing or chemical polishing can be used to remove this, leaving an undisturbed surface.
Contact Person: Mr. Raymond Chung
Features: minimize the wearing of the sample, eliminate the surface stress and bring excellent flatness with less stress deformation
Application: Titanium, Aluminium, pure Copper and Copper alloys, Aluminium alloys, steel and Nickel-based alloys
piezoelectric vibratory plate: Low power consumption& noise design
Disc Replace: Easily replacement design on disc, convenient to change and clean
