| Model: | ILeeb-N1500 | Display: | LCD With Backlight |
|---|---|---|---|
| Range: | Hardness Range 170-960HLD | Impact: | Impact Device D (Internal) |
| Memory: | Save 99 Measurement Data | Name: | Leeb Hardness Tester |
| Highlight: | High Accuracy Portable Hardness Tester,Integrated Portable Hardness Tester,Integrated Metal Hardness Tester Machine |
||

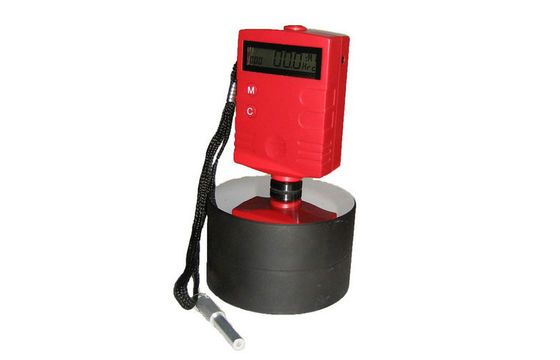

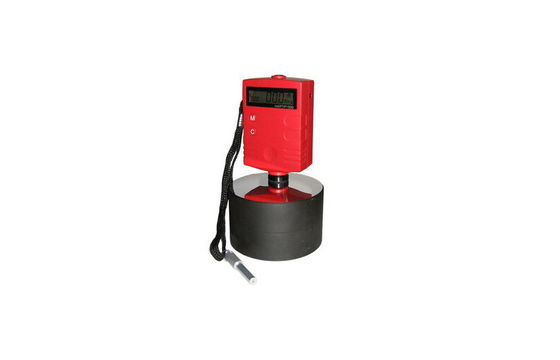

High Accuracy Portable Hardness Tester Narrow Space Integrated Metal Leeb Hardness Tester
Brief Introduction:
iLeeb-N1500 is an integrated hand held metal hardness tester that combines impact device (probe) and
processor into one unit.
The size is much shorter than normal impact device, which lets iLeeb-N1500 can meet not only normal measurements, but can take measurements at narrowed space as well.
iLeeb-N1500 is suitable for testing hardness of almost all Ferrous and Nonferrous materials. With our new technology, its accuracy is improved to a higher level than normal type.
HARTIP 1500 is one of the most economic hardness testers.
Features:
Rugged and modular design
High accuracy
Palm size for narrow space
Built-in impact device
Customer re-calibration allowed
Test in any directions
Applications:
Hardness tests on installed machines or steel structures: e.g. on heavy and largework-piece or on permanently installed system parts.
Rapid testing of multiple measuring areas for examination of hardness variations over larger regions.
Measuring hardness for produced parts at production line.
Identifying metallic material stored in a warehouse.
Ineffectiveness analysis of permanent parts, pressure -vessel, turbo generator.
Technical Specifications:
| Principle | Leeb hardness measurement |
| Accuracy | ±0.4% @ HL=800 / ±3HL |
| Display | LCD with backlight |
| Hardness scale | HL/HRC/HRB/HB/HV/HS |
| Measuring range | HL170-960/ HRC17-70/ HRB13-109/ HB20-655/ HV80-940/ HS32-99.5 |
| Impact device | D (Internal) |
| Materials | 9 common metal materials |
| Memory | 99 data |
| Statistics function | Average / Max. / Min. |
| Re-calibration | Allowed by user |
| Indicator | Low battery |
| Auto power off | Auto |
| Power supply | 9V alkaline battery x 1 |
| Working environment | -10~+45ºC |
| Dimension (mm) | 100x60x33 |
| Net weight (g) | 150 |
| Standards | Conforming to ASTM A956, DIN 50156, GB/T 17394-1998 |
