| Eyepiece: | 10X Wide Field Plan Eyepiece, FOV Φ22mm | Objective: | Bright Field Objective 5X, 10X, 20X, 50X |
|---|---|---|---|
| Eyepiece Tube: | Trinocular Inclined 30˚ | Focusing: | Coaxial Coarse/Fine Focus System |
| Stage: | Mechanical Stage,overall Size:185mmX140mm | Illumination: | 12V 50W Halogen And Brightness Enable Control |
| Highlight: | Metallographic Digital Inspection Microscope,Digital Industrial Inspection Microscope,Industrial Inspection Microscope 50X |
||

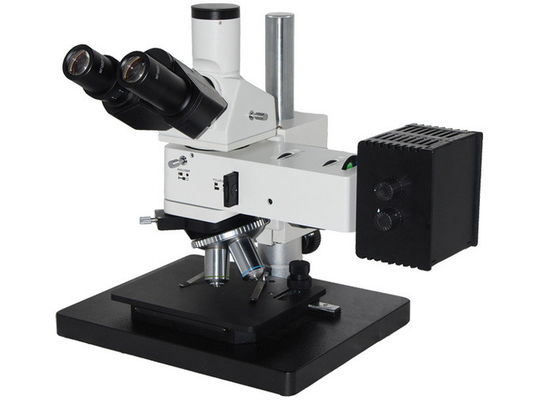

Metallographical Digital Industry Inspection Microscope with DIC and UIS Optical System
Technical Data Download: iqualitrol Metallurgical Microscope iMet-230DIC
Brief Introduction:
iqualitrol iMet-230DIC Industry inspection and measure microscope is suitable to observe surfaces structure and geometry of workpiece.
iqualitrol iMet-230DIC equips with excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, DIC observation.
Lift or down the optical and illumination unit along the leader to adjust the distance from stage to objective, so that enable using for different thickness workpiece.
Quickly and effectively locate the observation part of workpiece by moving the mechanical stage. The motion of the focusing is roll that the roller bearing moved guiding the trigon slideway, so that the moving process is smooth.
This is ideal optical instrument for checking and measure in the field of precision part, integrated circuit, packing material etc.
Metallurgical microscopes provide polarization which makes it much easier to view a variety of minerals, types of metals and even ink samples. Material defect analysis is performed with a metallurgical microscope in search of the causes of corrosion, fatigue, stress fractures and cracks. Environmental protection and oil production often use metallurgical microscopes and in particular they may utilize both the high magnification and polarization features of the metallurgical microscopes.
Technical Specifications:
| Eyepiece | 10X wide field plan eyepiece and field of view Φ22mm | ||
| Infinity plan achromatic objectives |
iMet-230DIC (Equipped bright field objective) |
LMPlan5X/0.12 working distance: 15 mm |
|
|
LMPlan10X/0.3 working distance: 10.5 mm |
|||
| LMPlan20X/0.4 working distance: 4.5mm |
|||
|
PL L50X/0.70 |
|||
| Eyepiece tube | Trinocular inclined 30˚, can be shot in 100% light flux. | ||
| Focusing system | Coaxial coarse/fine focus system, with tension adjustable device, minimum division of fine focusing: 1.0μm. | ||
| Nosepiece | Quintuple (Backward ball bearing inner locating) | ||
| Stage | Mechanical stage,overall size:185mmX140mm,moving range: 35mmX30mm | ||
| Illumination system | iMet-230DIC | 12V50W halogen and brightness enable control. | |
|
Integrated field diaphragm , aperture diaphragm and puller type polarizer. (Equipped with frosted glass and yellow, green and blue filters) |
|||
| DIC group | 5X/10X/20X DIC group | ||
