Product Details:
Payment & Shipping Terms:
|
| Stage: | Moving Range:63mmX50mm | Eyepiece Tube: | Trinocular,Inclination Of 30˚ |
|---|---|---|---|
| Illumination: | 6V 20W, Halogen Lamp | Application: | Mineralogy, Precision Engineering, Electronics |
| Eyepiece: | Wide Field WF10X (Φ18mm) | Achromatic Objectives: | Long Working Distance And Wide-field Eyepieces |
| Highlight: | Upright Digital Metallurgical Microscope,Reflected Digital Metallurgical Microscope,Digital Microscope 100x |
||

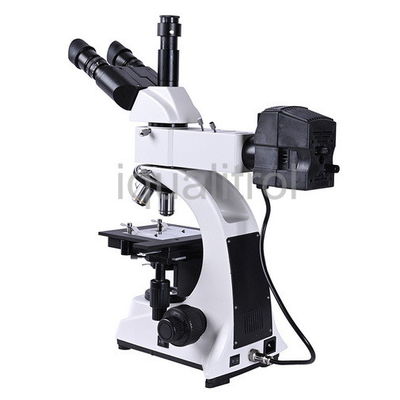

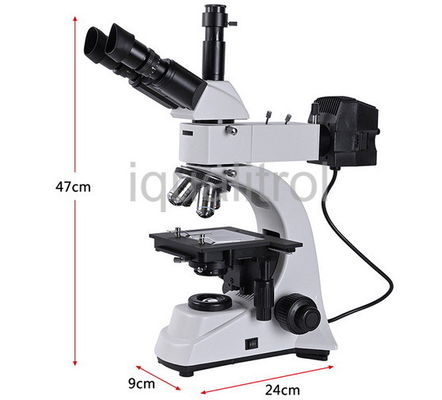

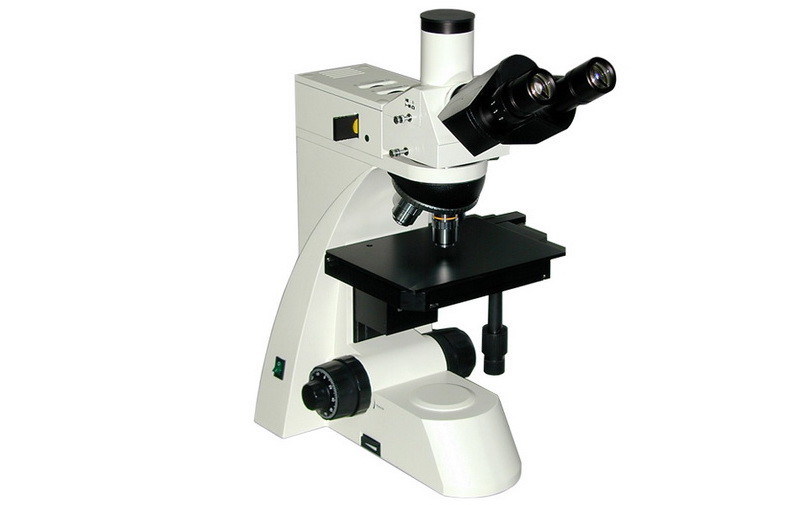

Upright Reflected Digital Metallurgical Microscope iMet-213A with Polarizer Device in Trinocular
Technical Data Download: iqualitrol Metallurgical Microscope iMet-213A
Brief Introduction:
iqualitrol iMet-213A reflected metallurgical microscope is suitable to observe the surfaces of non-transparent object.
iqualitrol iMet-213A is equipped with vertical illuminator, plan achromatic objectives with long working distance (no cover glass), wide-field eyepieces and set polarizer device in trinocular.
iqualitrol iMet-213A provide clear and high-contrast picture, beautiful sculpt, convenient operation, etc.
iqualitrol iMet-213A is an ideal instruments for research work in metallography, mineralogy, precision engineering, electronics, etc, and suitable for scientific research, teaching demonstration in the colleges and factory.
Technical Specifications:
| Model | iMet-213A |
| Eyepiece | Wide field WF10X(Φ18mm) |
| Objective |
Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12 |
|
Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25 |
|
|
Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40 |
|
|
Plan achromatic objectives with long working distance (no cover glass) PL L50X/0.70 |
|
| Eyepieces tube | Trinocular,Inclination of 30˚, (Analyzer with field diaphragm to switch) |
| Vertical illumination unit | 6V 20W, Halogen lamp,Adjustable brightness |
| Vertical illumination With field diaphragm ,aperture diaphragm and polarizer,(Y,B,G)filter and Ground glass | |
| Focus system | Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing: 2μm. |
| Nosepiece | Quadruple Backward ball bearing inner locating |
| Stage | Double layer mechanical (Size: 210mmX140mm,moving range:63mmX50mm) |
Features:
1, With plan achromatic objectives with long working distance (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field.
2, Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
3, 6V 20W halogen lamp, adjustable brightness.
4, Trinocular, can switch to observe normally or to observe the polarize, can send 100% of light to the binocular eyepieces or to the top port.

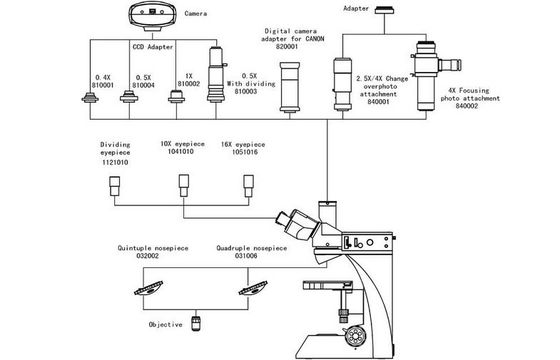

Optional Accessories:
| Name | Sort/Technique parameter | NO. |
| Eyepiece | Wide field WF16X(Φ11mm) | 1051016 |
| Dividing 10X(Φ18mm) 0.1mm/Div | 1121010 | |
| Objective | Plan achromatic objectives with long working distance (no cover glass) PL L 40X/0.60 | 2250140 |
| Plan achromatic objectives with long working distance (no cover glass) PL L 60X/0.75 (Spring) | 2250160 | |
| Plan achromatic objectives with long working distance (no cover glass) PL L 80X/0.80 | 2250180 | |
| Plan achromatic objectives with long working distance (no cover glass) PL L 100X/0.85 (Spring) | 2250111 | |
| Plan achromatic objectives (no cover glass) PL 100X/1.25(Spring, oil) | 2240111 | |
| Nosepiece | Quintuple Backward ball bearing inner locating | 032002 |
| CCD adapter | 0.4X | 810001 |
| 0.5X | 810004 | |
| 1X | 810002 | |
| 0.5X with dividing 0.1mm/Div | 810003 | |
| Camera | DV-1 With USB & video output | 800001 |
| DV-2 With USB output | 800003 | |
| DV-3 With video output | 800005 | |
| Photo unit | 2.5X/4X Change over photograph attachment with 10X viewing eyepiece | 840001 |
| 4X Focusing photograph attachment | 840002 | |
| MD Adapter | 840003 | |
| PK Adapter | 840004 | |
| Digital camera adapter | CANON(A610,A620,A630,A640) | 820001 |
