Product Details:
Payment & Shipping Terms:
|
| Model: | IMet-R310 | Eyepiece: | Extra Wide Field Eyepiece EW10×/ 20 |
|---|---|---|---|
| Objective: | Std. 4X, 10X, 20X, 40X | Viewing Head: | Inclined 30° |
| Nosepiece: | Quintuple Nosepiece | Focus: | Coaxial Coarse & Fine Adjustment |
| Light: | 6V/30W Halogen Lamp,Adjustable | Name: | Digital Microscope 100x |
| Highlight: | Digital Metallurgical Microscope AC220V,Digital Metallurgical Microscope 50Hz,100x Digital Microscope |
||
100X Dry Objective Inverted Digital Metallurgical Microscope with Infinitive Optical System
Technical Data Download:

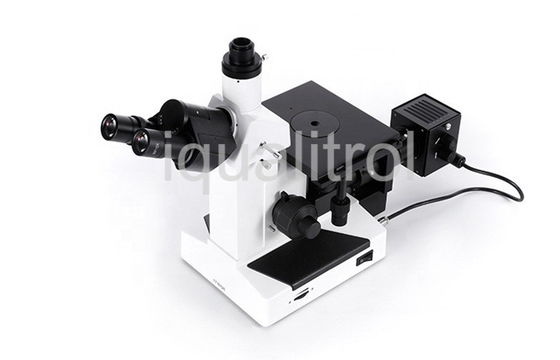

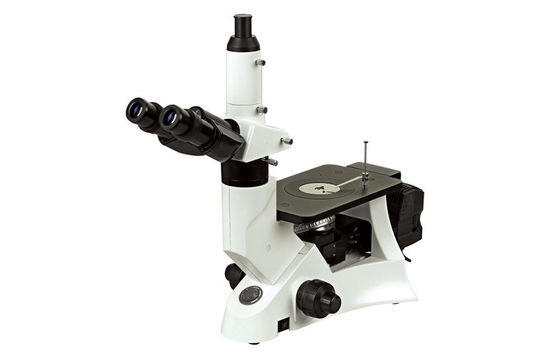

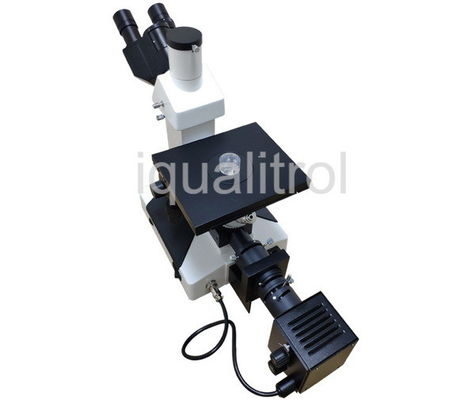

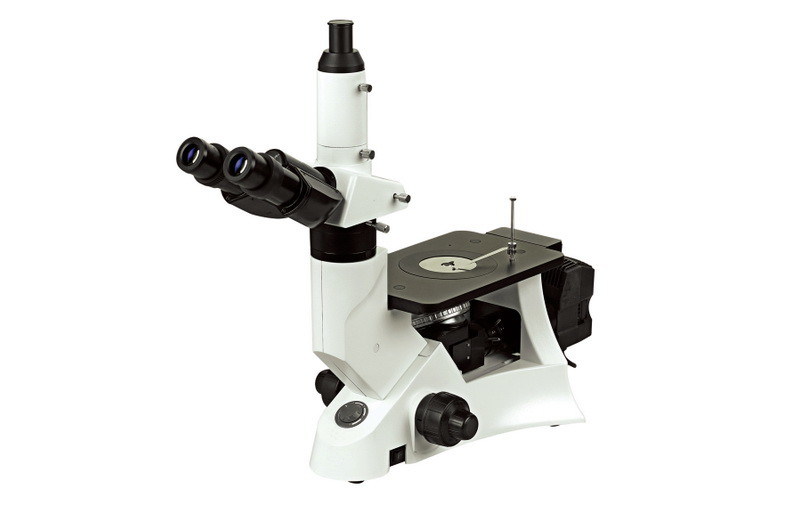

iqualitrol Inverted Metallurgical Microscope iMet-R310
Brief Introduction:
iqualitrol iMet-R310 Infinitive Optical System Providing Excellent Optical Functions. With the stable stand structure, advanced stage design and comfortable operation, it is widely used in institute and laboratory to observe and identify the structure of various metal and alloy.
Inverted metallurgical microscopes allow observation of opaque objects that are too large to place under an upright metallurgical microscope. Metallurgical microscope samples are placed on an inverted metallurgical microscope and allow for inspection of grain size and the state of the metals.
Inverted metallurgical microscopes are used in the engineering and manufacturing processes to look for metal fatigue, corrosion, fractures and ruptures that resulted from stress, cracks and hydrogen embrittlement.
Inverted metallurgical microscopes are used when a standard upright metallurgical microscope might not have enough working room for large parts. Some applications for the inverted metallurgical microscope include: electronics, telecom, cast iron nodularity and flake analysis, metallurgy, grain sizing, surface examination, mobile phone manufacturing, metal manufacturing, antennae production and shavers and watch production.
Technical Specifications:
| Product Name | Inverted Metallurgical Microscope iMet-R310 |
| Eyepiece | High-point , extra wide field eyepiece EW10×/ 20 |

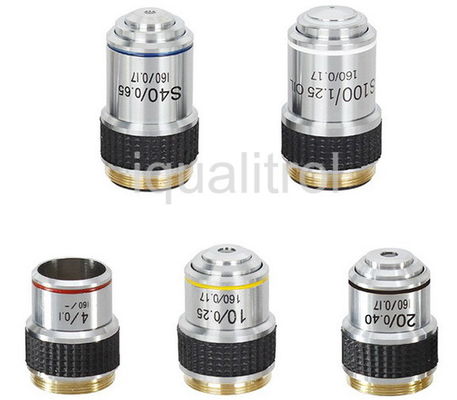

| Objectives |
Inifitive Plan achromatic objective 4X/0.1 Inifitive Plan achromatic objective10X/0.25 Inifitive Plan achromatic objective20X/0.4(s) Inifitive Plan achromatic objective 40X/0.6 |
| Viewing Head | Inclined 30°, interpupillary distance 48-75mm |
| Focusing |
Coaxial coarse & fine adjustment, Vertical objective movement, Coarse stroke 37.7mm per rotation, |
| Mechanical Stage |
Plain stage, stage layer Ø110mm, Moving range 120X78mm,loading plate 128X86mm |
| Nosepiece | Quintuple Nosepiece |
| Illuminator | 6V/30W Halogen Lamp,Adjustable |
| Color Filter | Yellow, Blue , Green Color Filter, Ground Glass |
| Power Supply | AC220V/50Hz;110V/60Hz |
Optional Accessories:
| Infinite Plan Achormatic 5x/0.25 | Infinite Plan Achormatic 80x/0.9 |
| Infinite Plan Achormatic 100X/0.80 | Mechanical 226x178mm |

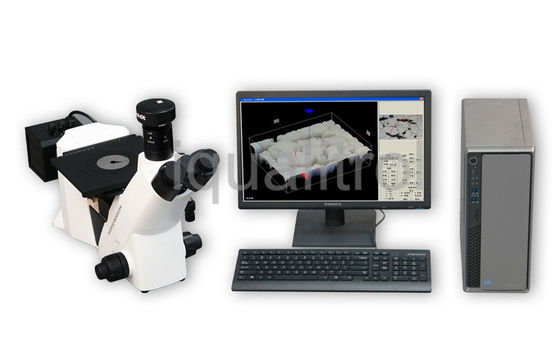

| 1xC-mount(Available for Digital Camera) | USB Camera USB-A1 |
