|Test Force:||60kg,100kg,150kg||Resolution:||Hardness Resolution 0.5HR|
|Indenters:||Diamond Indenter, 1.588mm Ball Indenter||Initial Force:||10Kgf|
0.5HR Portable Hardness Tester,
Magnetic Portable Hardness Tester,
Hand Held Rockwell Hardness Tester

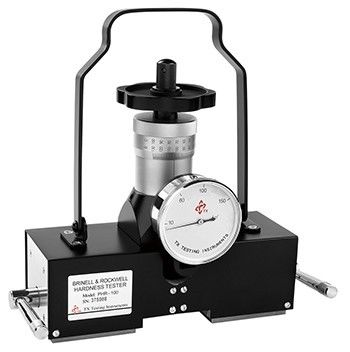

Dial Reading 0.5HR Portable Hardness Tester Magnetic Rockwell Hardness Test Machine
Fix Rockwell test head to the surface of iron and steel parts to test the hardness by applying magnetic force. Follow Rockwell hardness test method completely and the test condition complies with standard of ISO 6508 and ASTM E 18.
The magnetic Rockwell hardness tester is mainly applied in on-site quick test body hardness of steel parts.
Test hardness of steel plate, pipe, axis, mould, huge forgings and huge and medium-size heat treatment parts if surface available.
Test hardness of weld joint in boiler, pressure vessels, and pressure pipes.
Replace low accurate and reliable Leeb hardness testers.
|Preliminary test force||10kg|
|Total test force||60kg, 100kg, 150kg|
|Test head||120° diamond cone indenter, 1.588mm hard alloy ball|
|Indication Error||complying with ISO 6508 and ASTM E18|
|Repeatability Error||complying with ISO 6508 and ASTM E18|
|Surface||Flat: Area≥180mm×60mm, Thickness≥5mm
Cylinder: Diameter≥60mm, Lenghth≥200mm, Thickness≥8mm
|Configuration||Standard: Tester, 120° diamond cone indenter, 1.588mm hard alloy ball, adapter, microscope with light, and carrying case.
Optional: Rockwell hardness block (HRB, HRC high value, HRC middle value, HRC low value) and Special Adapter (customized by required size)
