| Range: | Hardness Range 0~100 HBa | Resolution: | 0.1 HBa |
|---|---|---|---|
| Indication Error: | 81~88HBa, ±1HBa | Repeatability: | 81~88HBa, ±1.5 HBa |
| Highlight: | Indentation Hardness Tester,Digital Barcol Hardness Tester,Barcol Hardness Tester Unit |
||

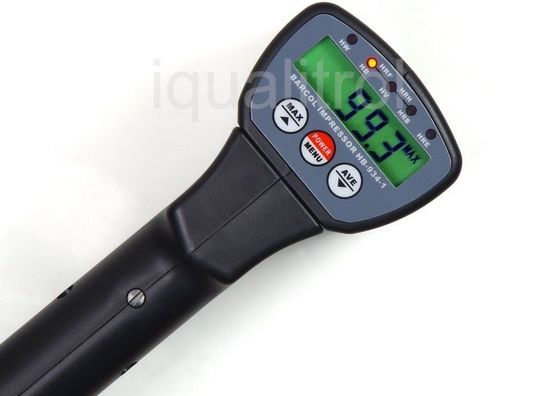

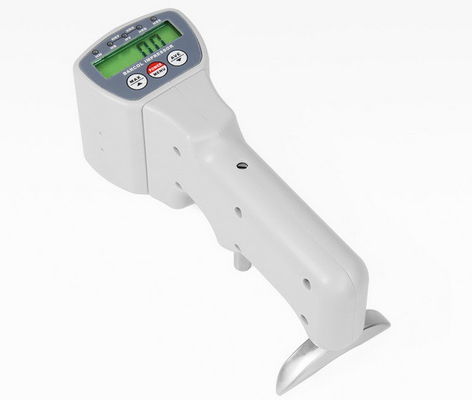

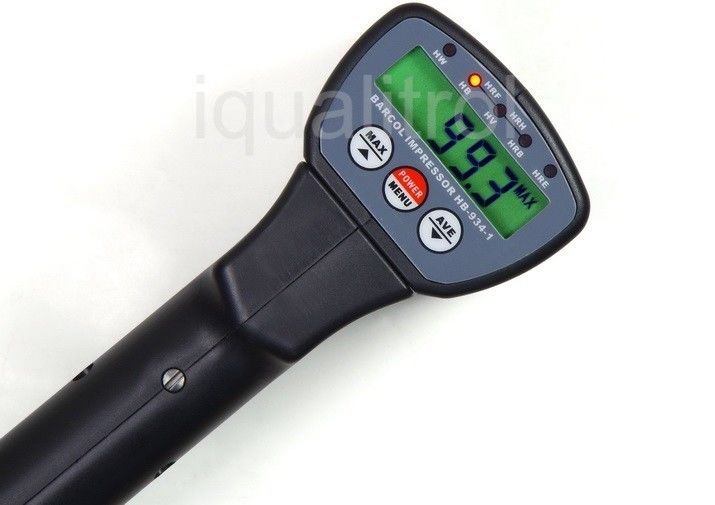

Digital Portable Hardness Tester Indentation Barcol Hardness
Tester For Testing Aluminum
Product Description:
iBar-H2 a digital indentation hardness tester, characterized in that provided with a balance positioning, a digital display of hardness value, and a non disassembly calibration and adjusting.
With good stability, convenient calibration, and high accuracy of detection. It is mainly used in aluminum processing industry, testing pure aluminum, soft aluminum, thick aluminum alloy, aluminum strip, aluminum rod, aluminum castings, aluminum forgings and aluminum alloy products. Also, it can be used for glass steel industry.
The relevant standard is ASTM B648-00, ASTM HD2583-07, and GB / T 3854-2005.
Product Features:
Small in size, portable. Single hand operation, easy to use. Can be used in any occasion as long as the hand can reach.
Wide test range, can test from very soft pure aluminum to a particularly hard aluminum alloy. effective test range equivalent to the Brinell Hardness of 25~150HB.
No need to be supported. Just test on one side of the sample with the hardness tester, no need to be supported. It is suitable for the test of large and extra thick workpiece.
With the maximum hold function, recording the maximum hardness value during measurements, and the function of calculating the average value, can calculate the average value of the 29 sets of data at most.
Can be used for measuring not only Barcol Hardness, but also Brinell Hardness (HB), Vickers Hardness (HV), Webster Hardness (HW), Rockwell Hardness (HRB/HRE/HRF/HRH).
Product Parameters:
| Parameters | Barcol Hardness (Hba), Brinell Hardness (HB), Vickers Hardness (HV), Webster Hardness (HW), Rockwell Hardness (HRB/HRE/HRF/HRH) |
| Measurement Range | 0~100 HBa, equivalent to the Brinell hardness of 25~150HB |
| Resolution | 0.1 HBa |
| Indication Error | 81~88 HBa±1 HBa |
| 42~48 Hba±2 HBa | |
| Repeatability Error | 81~88 HBa±1.5 HBa |
| 42~48 HBa±2.5 Hba | |
| Operating Condition | Temperature: 0~50°C |
| Humidity:<80%rh | |
| Size | 170x63x82 mm |
| Power Supply | 2x1.5vAAA Um-4 Battery |
| Weight | 390g (Not Including Batteries) |
Product Accessories:
| Standard Accessories | Main Unit |
| 2 Pins | |
| 2 Standard Blocks | |
| Pin Length Calibration Block | |
| Screw Driver | |
| Spanner, | |
| Carrying Case | |
| Operation Manual | |
| Optional Accessories | Bluetooth data output |
